- OEM P/N PTS06001INV
- Ultimate Pressure: 9.3 x 10-3 mbar
- Inlet Connection: NW40
- Peak Pumping Speed: 420 l/m (50 Hz) ; 500 l/m (60 Hz)

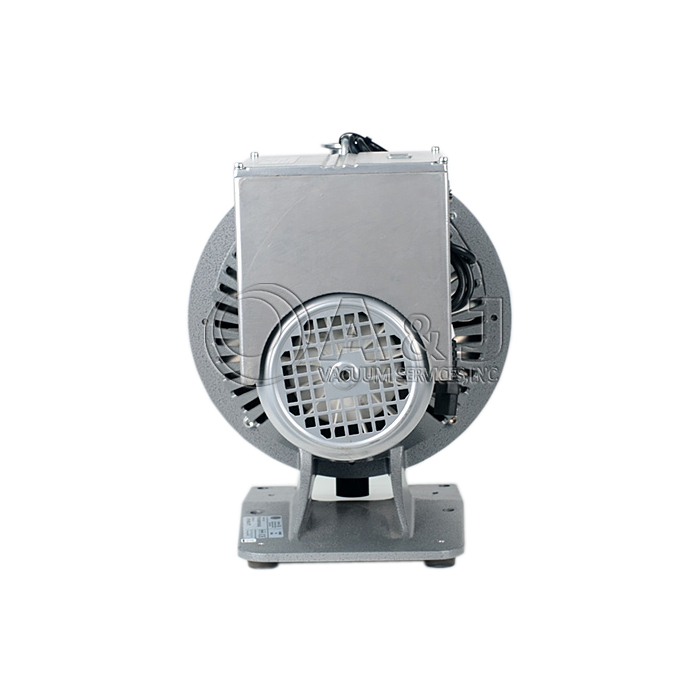

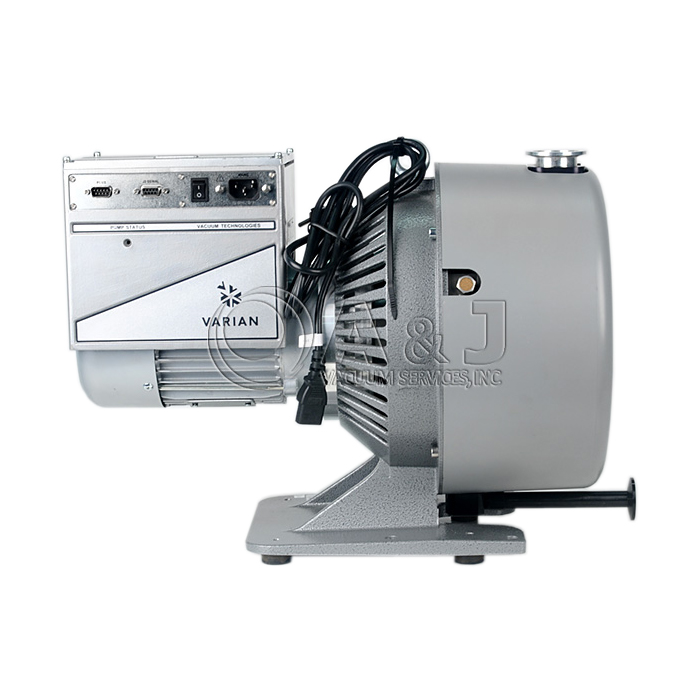

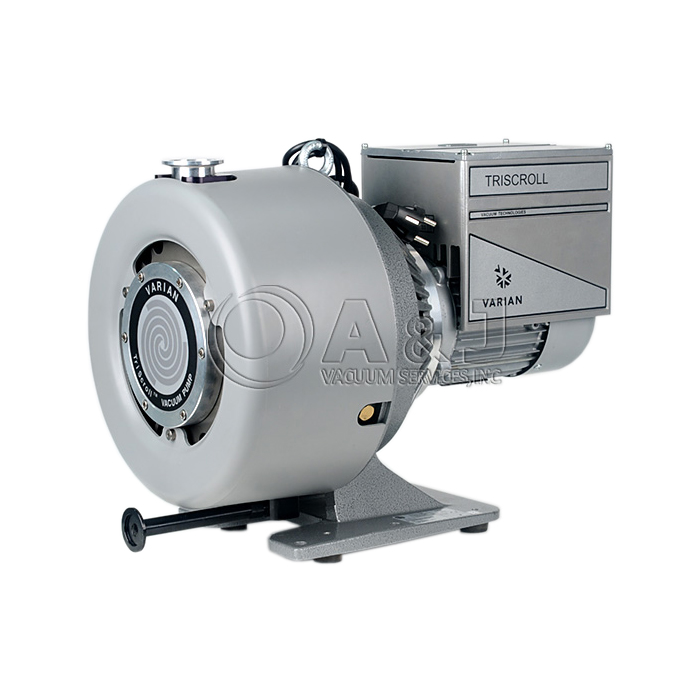

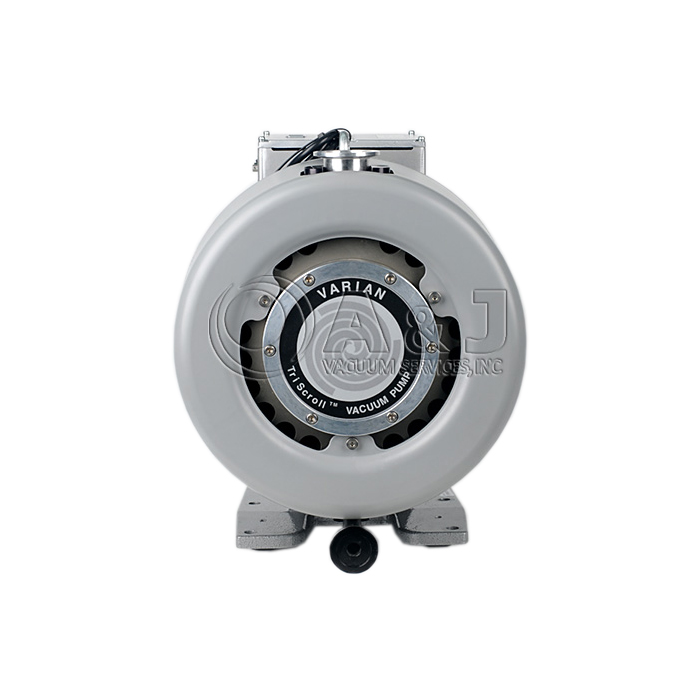

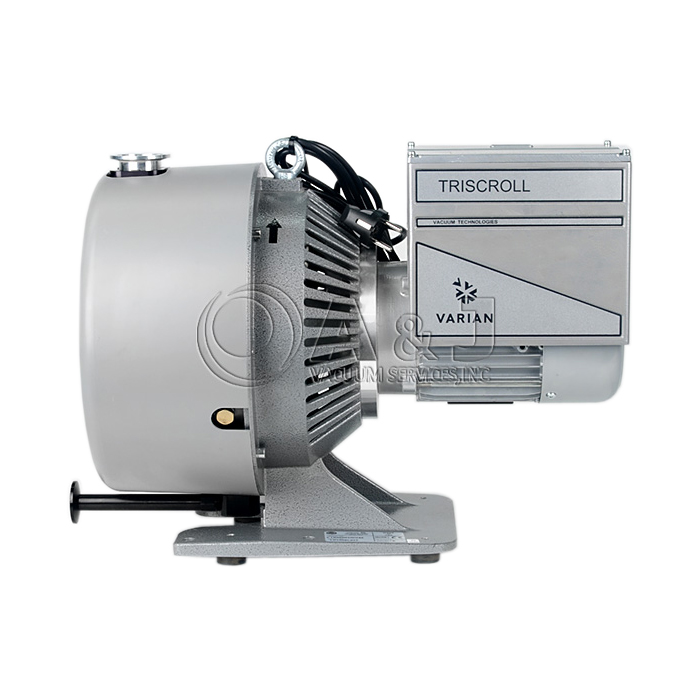

Agilent Technologies PTS-600 / Varian TriScroll PTS600 Inverter Dry Scroll Vacuum Pump, Single Phase, 220 V, US Cord, PTS06001INV
The Agilent Technologies / Varian TriScroll 600 Inverter Dry Scroll Pumps are multi-stage, oil-free vacuum pumps, designed and manufactured by Varian, Inc. for high reliability. The TriScroll 600 with Inverter pumps deliver clean vacuum at high speed and low ultimate pressure. The unique, patented features of the TriScroll pumps provide proven reliability and durability, leading to low cost of ownership and consistent performance.
The unique TriScroll design delivers high pumping speed and achieves low ultimate pressure within a compact package. The pumps include a bearing purge port for improved tolerance for condensable gases, leading to improved reliability and longer service intervals. They also have an automatic gas-ballast port, which improves the pump's tolerance for water vapor and other condensable gases.
Applications:
- Scanning Electron Microscopes
- Primary Backing Pump For Turbo Systems
- General Purpose Laboratory Applications
- Beam Lines
- Drying Ovens
- Load Locks and Transfer Chambers
- Cryogenics
- Manufacturing/Glove Box Enclosures
- Leak Detection
Agilent Technologies PTS-600 / Varian TriScroll PTS600 Inverter Dry Scroll Vacuum Pump, Single Phase, 220 V, US Cord, PTS06001INV
Peak Pumping Speed: 420 l/m (50 Hz) ; 500 l/m (60 Hz)
Ultimate Pressure: 9.3 x 10-3 mbar
Inlet Connection: NW40
Exhaust Connection: 3/8" Female NPT with swivel
Gas Ballast: 1/4" Female NPT
Operating Speed: 1425 rpm (50 Hz) ; 1725 rpm (60 Hz)
Agilent Varian PTS600 PTS 600 PTS-600 Operation Manual.pdf
Agilent Varian PTS300 PTS600 PTS 300 PTS 600 Brochure.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Agilent Technologies PTS-600 / Varian TriScroll PTS600 Inverter Dry Scroll Vacuum Pump, Single Phase, 220 V, US Cord, PTS06001INV
The Agilent Technologies / Varian TriScroll 600 Inverter Dry Scroll Pumps are multi-stage, oil-free vacuum pumps, designed and manufactured by Varian, Inc. for high reliability. The TriScroll 600 with Inverter pumps deliver clean vacuum at high speed and low ultimate pressure. The unique, patented features of the TriScroll pumps provide proven reliability and durability, leading to low cost of ownership and consistent performance.
The unique TriScroll design delivers high pumping speed and achieves low ultimate pressure within a compact package. The pumps include a bearing purge port for improved tolerance for condensable gases, leading to improved reliability and longer service intervals. They also have an automatic gas-ballast port, which improves the pump's tolerance for water vapor and other condensable gases.
Applications:
- Scanning Electron Microscopes
- Primary Backing Pump For Turbo Systems
- General Purpose Laboratory Applications
- Beam Lines
- Drying Ovens
- Load Locks and Transfer Chambers
- Cryogenics
- Manufacturing/Glove Box Enclosures
- Leak Detection
Specifications
Agilent Technologies PTS-600 / Varian TriScroll PTS600 Inverter Dry Scroll Vacuum Pump, Single Phase, 220 V, US Cord, PTS06001INV
Peak Pumping Speed: 420 l/m (50 Hz) ; 500 l/m (60 Hz)
Ultimate Pressure: 9.3 x 10-3 mbar
Inlet Connection: NW40
Exhaust Connection: 3/8" Female NPT with swivel
Gas Ballast: 1/4" Female NPT
Operating Speed: 1425 rpm (50 Hz) ; 1725 rpm (60 Hz)
Videos
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
