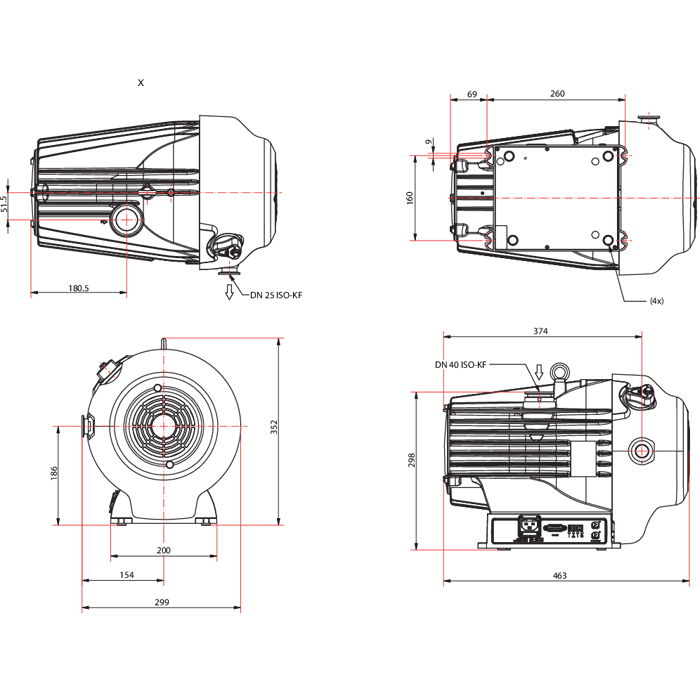

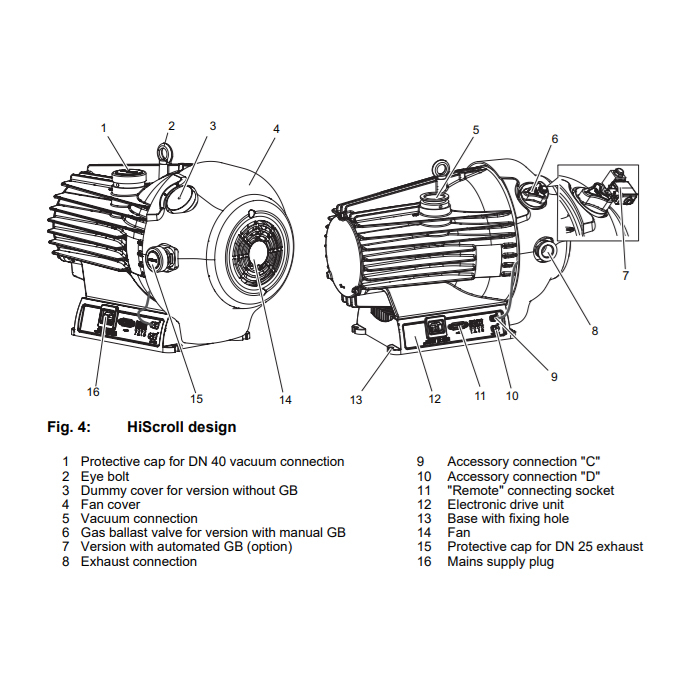

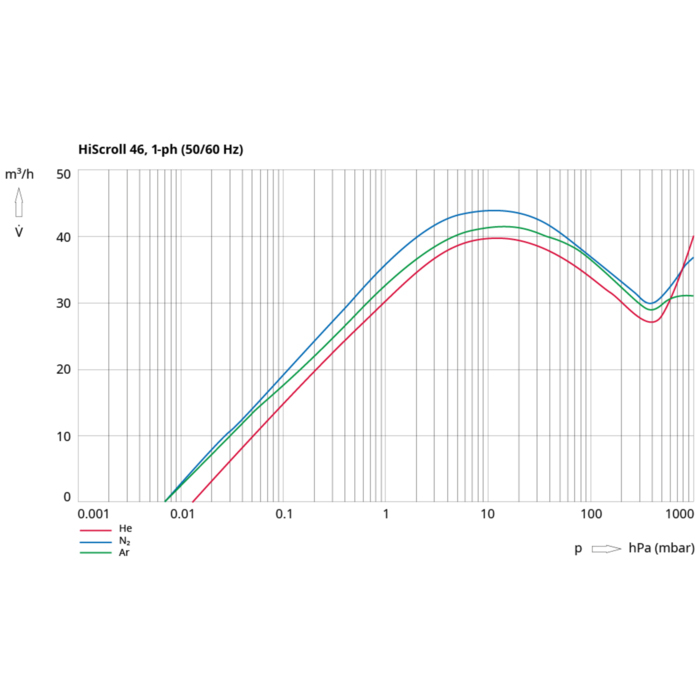

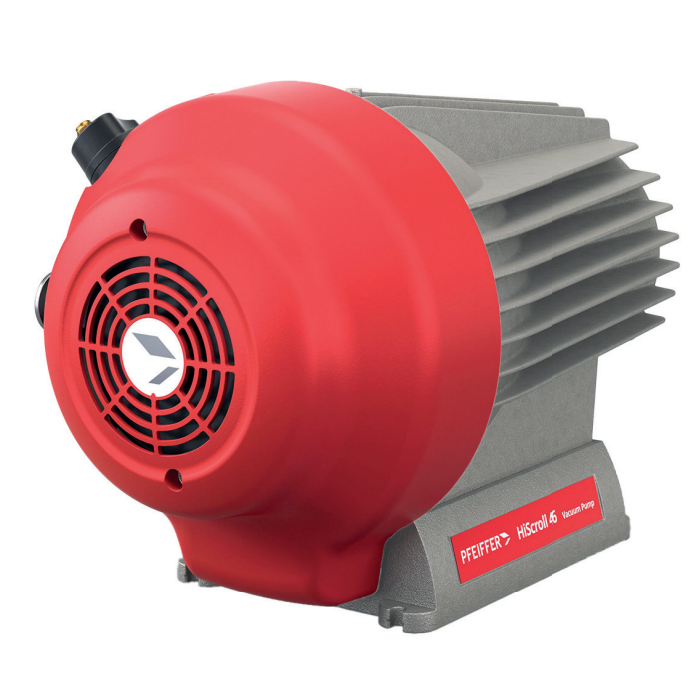

Pfeiffer HiScroll 46 Dry Scroll Pump, 25.31 cfm, 100 - 127, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S40 000 / PDS40000
Power Cable not Included !
Pfeiffer HiScroll 46 Features:
- Increased drive efficiency compared to previous dry scroll pumps.
- Completely dry and oil-free operation.
- Low noise emissions and minimal vibration.
- Integrated safety valve and hermetically sealed pump system for safe operation.
- Easily interfaces with other intelligent products via RS-485 and ProfiNet/EtherCAT.
- Low cost of operation due to high quality components and long maintenance intervals.
- ATEX conformity: Ex II 3 (internal)/- (external) G Ex h IIC T4 Gc X +5 °C ≤ Ta ≤ +40 °C
Pfeiffer HiScroll46 / PD S40 000 Overview:
The Pfeiffer HiScroll 46 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 46 is ideal for compact systems and environments where cooling efficiency is important.
The Pfeiffer Vacuum HiScroll 46 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 46 with Integrated Sensor PD S40 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the pump to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.
The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet/EtherCAT interface.
Pfeiffer HiScroll46 Scope of Delivery:
- Scroll pump with electronic drive unit
- Protective cap for vacuum connection
- Protective cover for the exhaust connection
- Operating instructions
Pfeiffer HiScroll46 Applications:
- Accelerators
- Coating
- Gas recovery
- Laboratories
- Leak detection
- Mass spectromery
- Semiconductor technology
- Vacuum drying
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

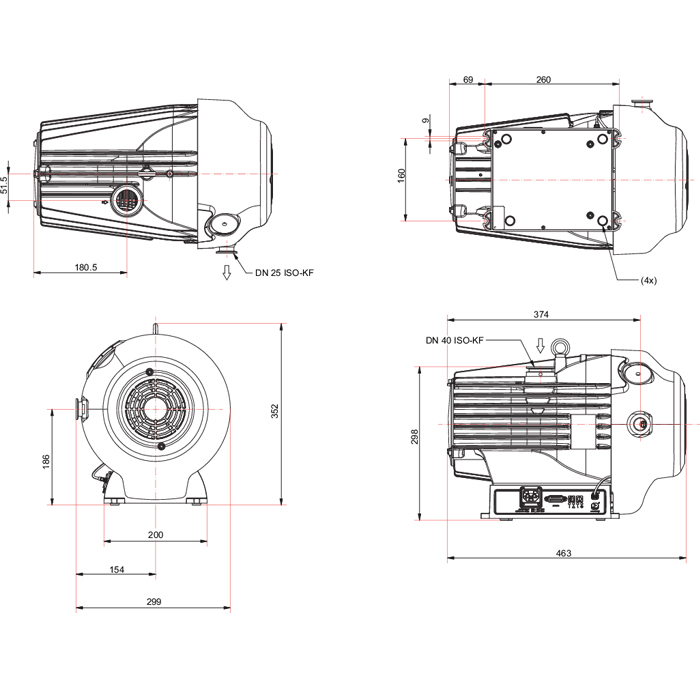

Pfeiffer HiScroll 46 Dry Scroll Pump, with Pressure Sensor, 25.31 cfm, 100 - 127, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S40 010 / PDS40010
Power Cable not Included !
Pfeiffer HiScroll 46 Features:
- Increased drive efficiency compared to previous dry scroll pumps.
- Completely dry and oil-free operation.
- Low noise emissions and minimal vibration.
- Integrated safety valve and hermetically sealed pump system for safe operation.
- Easily interfaces with other intelligent products via RS-485 and ProfiNet/EtherCAT.
- Low cost of operation due to high quality components and long maintenance intervals.
- Certification: cTUVus certified according to UL / CSA 61010-1, Semi S8 compatible, Semi S2 compatible
Pfeiffer HiScroll46 / PD S40 010 Overview:
The Pfeiffer HiScroll 46 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 46 is ideal for compact systems and environments where cooling efficiency is important.
The Pfeiffer Vacuum HiScroll 46 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 46 with Integrated Sensor PD S40 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the pump to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.
The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet/EtherCAT interface.
Pfeiffer HiScroll46 Scope of Delivery:
- Scroll pump with electronic drive unit
- Protective cap for vacuum connection
- Protective cover for the exhaust connection
- Operating instructions
Pfeiffer HiScroll46 Applications:
- Accelerators
- Coating
- Gas recovery
- Laboratories
- Leak detection
- Mass spectromery
- Semiconductor technology
- Vacuum drying
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 010 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

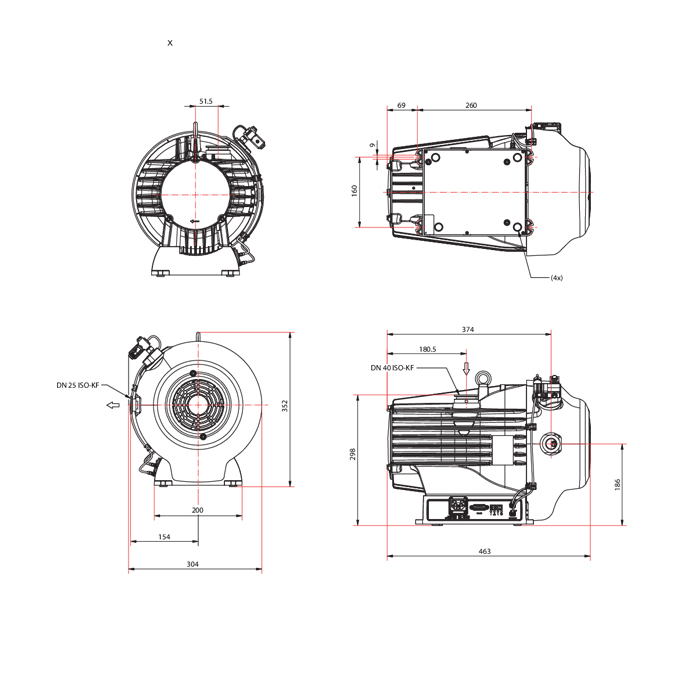

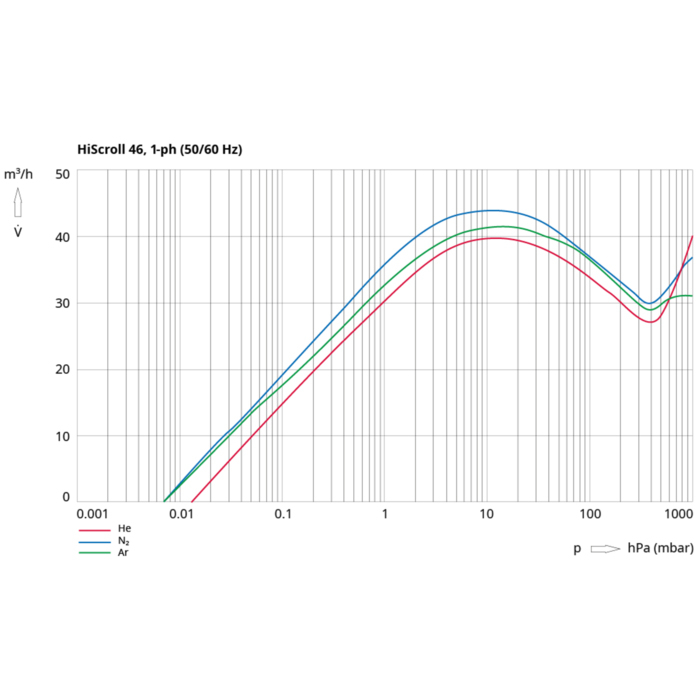

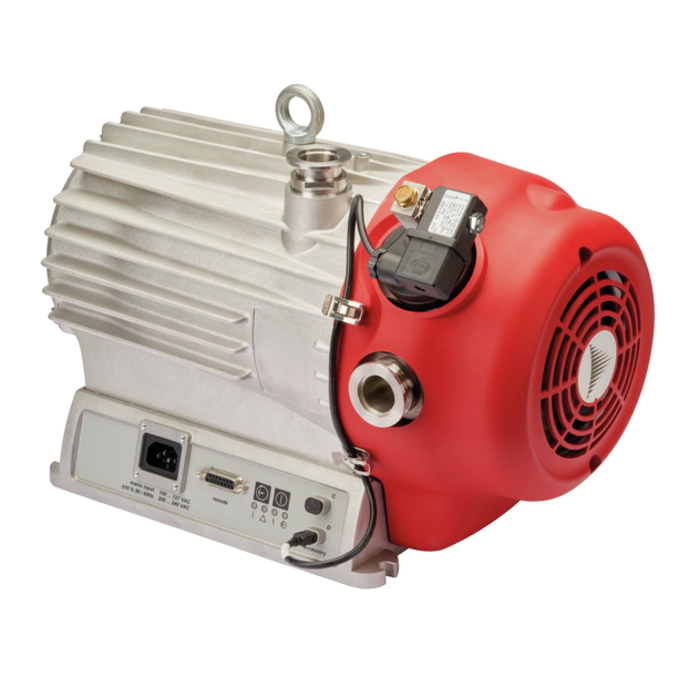

Pfeiffer HiScroll 46 Dry Scroll Pump, with Pressure Sensor and Automated GB, 25.31 cfm, 100 - 127, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S40 012 / PDS40012
Power Cable not Included !
Pfeiffer HiScroll 46 Features:
- Increased drive efficiency compared to previous dry scroll pumps.
- Completely dry and oil-free operation.
- Low noise emissions and minimal vibration.
- Integrated safety valve and hermetically sealed pump system for safe operation.
- Easily interfaces with other intelligent products via RS-485 and ProfiNet/EtherCAT.
- Low cost of operation due to high quality components and long maintenance intervals.
- Certification: cTUVus certified according to UL / CSA 61010-1, Semi S8 compatible, Semi S2 compatible
Pfeiffer HiScroll46 / PD S40 012 Overview:
The Pfeiffer HiScroll 46 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 46 is ideal for compact systems and environments where cooling efficiency is important.
The Pfeiffer Vacuum HiScroll 46 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 46 with Integrated Sensor PD S40 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the pump to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.
The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet/EtherCAT interface.
Pfeiffer HiScroll46 Scope of Delivery:
- Scroll pump with electronic drive unit
- Protective cap for vacuum connection
- Protective cover for the exhaust connection
- Operating instructions
Pfeiffer HiScroll46 Applications:
- Accelerators
- Coating
- Gas recovery
- Laboratories
- Leak detection
- Mass spectromery
- Semiconductor technology
- Vacuum drying
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 012 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

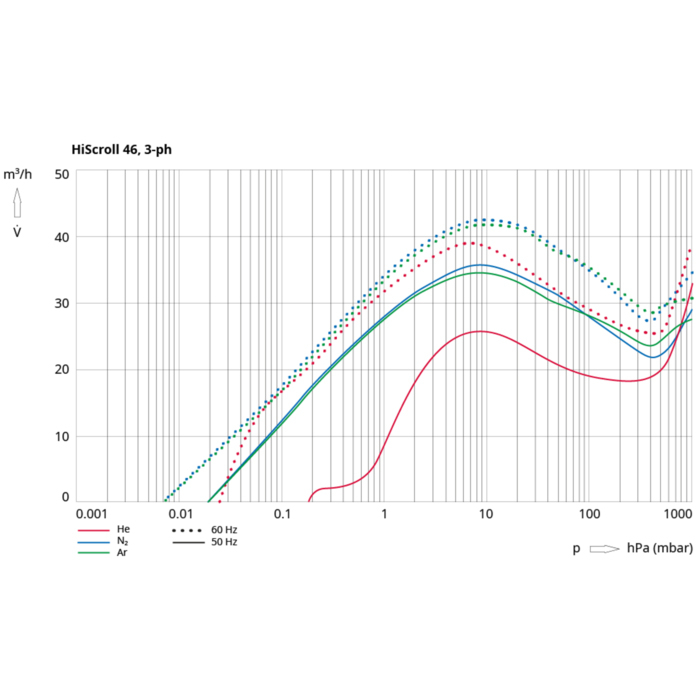

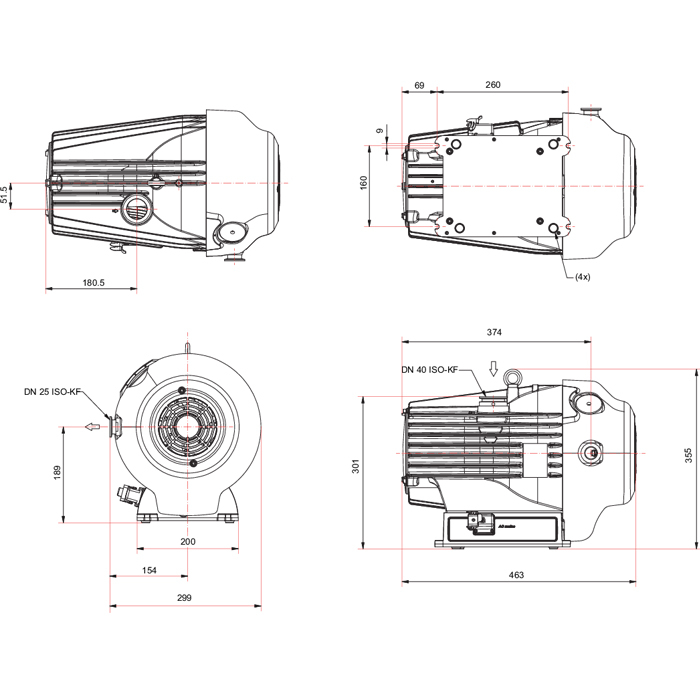

Pfeiffer HiScroll 46 Dry Scroll Pump, ATEX, 20.6 cfm & 190 - 220 / 380 - 415 VAC at 50 HZ, 25.31 cfm & 200 - 240 / 380 - 480 VAC at 60 HZ, Three Phase, PD S40 200 / PDS40200
Power Cable not Included !
Pfeiffer HiScroll 46 Features:
- Increased drive efficiency compared to previous dry scroll pumps.
- Completely dry and oil-free operation.
- Low noise emissions and minimal vibration.
- Integrated safety valve and hermetically sealed pump system for safe operation.
- Easily interfaces with other intelligent products via RS-485 and ProfiNet/EtherCAT.
- Low cost of operation due to high quality components and long maintenance intervals.
- ATEX conformity: Ex II 3 (internal)/- (external) G Ex h IIC T4 Gc X +5 °C ≤ Ta ≤ +40 °C
Pfeiffer HiScroll46 / PD S40 200 Overview:
The Pfeiffer HiScroll 46 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 46 is ideal for compact systems and environments where cooling efficiency is important.
The Pfeiffer Vacuum HiScroll 46 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 46 with Integrated Sensor PD S40 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the pump to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.
The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet/EtherCAT interface.
Pfeiffer HiScroll46 Scope of Delivery:
- Scroll pump
- Protective cap for vacuum connection
- Protective cover for the exhaust connection
- Operating instructions
Pfeiffer HiScroll46 Applications:
- Accelerators
- Coating
- Gas recovery
- Laboratories
- Leak detection
- Mass spectromery
- Semiconductor technology
- Vacuum drying
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 200 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
