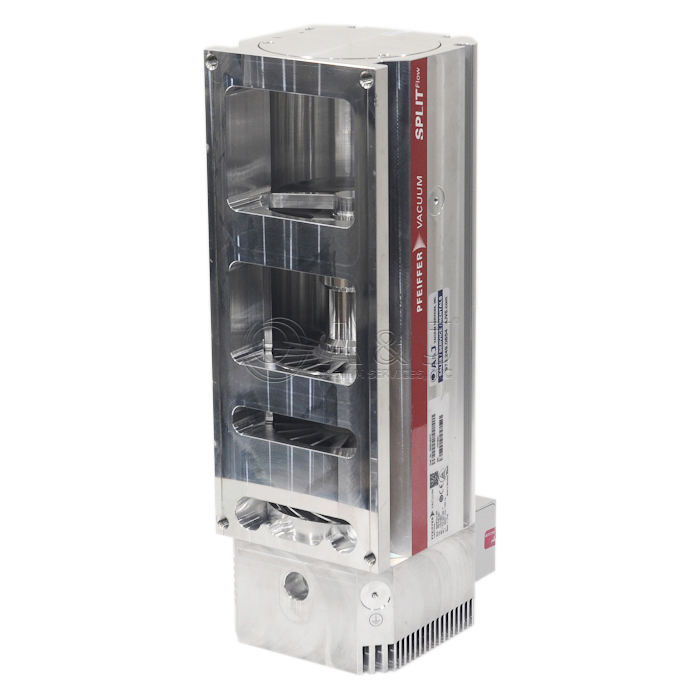

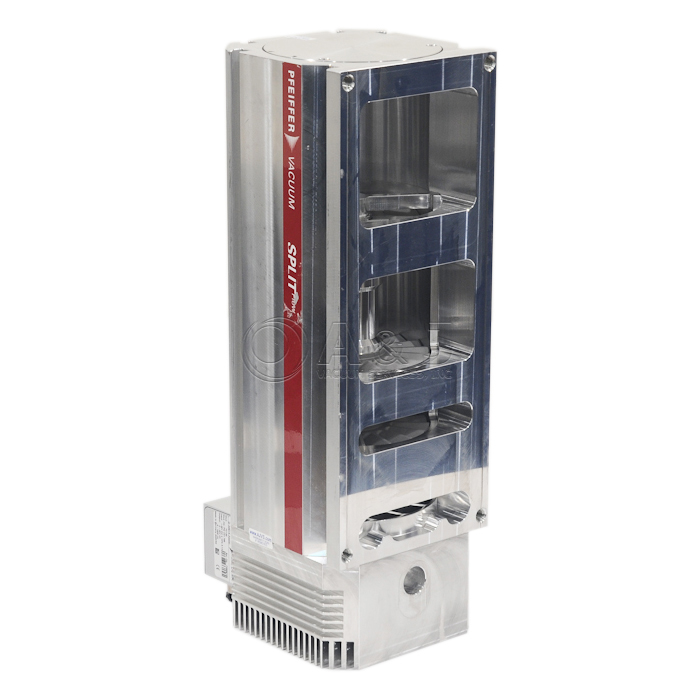

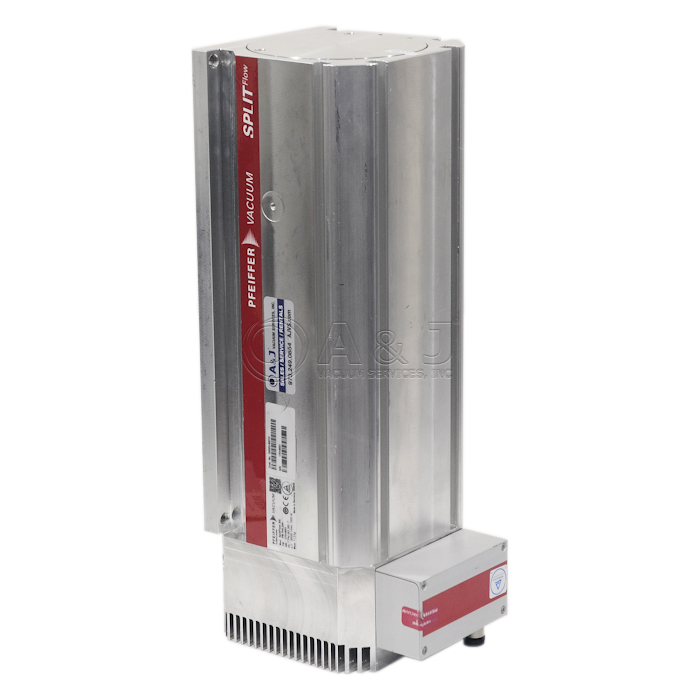

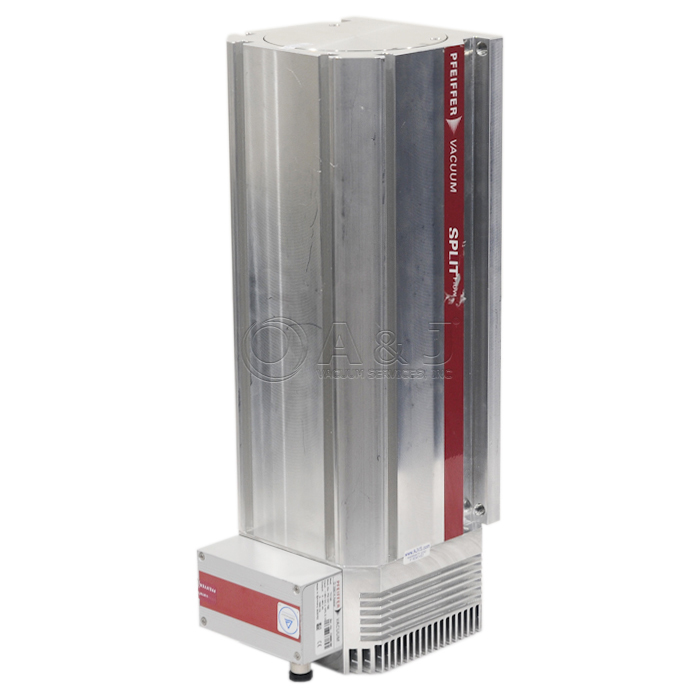

Fully Remanufactured Pfeiffer Vacuum Splitflow 200 Split Flow Turbo Pump with TC 120, PM P05 224 / PMP05224 / G6303-80010
Pfeiffer Splitflow 200 / PM 05 224 / G6303-80010 Overview:
Pump has been design to operate inside instruments like Mass spectromenters with multiple Inlet ports. This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.
The Splitflow 200 pump / PMP05224 is a well know pump and proven within Instruments industry.
Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.
It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 200 Turbo Pump comes with an entire 12-Month Warranty.
Pfeiffer Splitflow 200 / G6303-80010 Technical Data:
- Fully rebuild and ready to be installed.
- Pumping speed: for N2 210-130 l/s.
- DN 100 ISO flange
- KF-25 Outlet Flange
- Ultimate pressure with rotary vane pump < 1x•10-9 mbar,
- Gas throughput for N2 7 mbar l/s,
- Fore Vacuum max. for N2 10 mbar,
- Sealing gas connection: yes,
- The gas throughput is measured at HV-pressure of 0.1 mbar and with sealing gas.
- Cooling water quantity is measured at max. gas throughput.
There are no returns, refunds or exchanges on this product.
A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 200 Turbo Pumps PMP05224 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Remanufactured Pfeiffer Vacuum Splitflow 200 Split Flow Turbo Pump with TC 120, PM P05 224 / PMP05224 / G6303-80010
Pfeiffer Vacuum Splitflow 200 / PMP05224 / Agilent G6303-80010 Overview:
Pfeiffre Splitflow 200 Turbo Pump has been design to operate inside instruments like Agilent G6303-80010 Mass spectromenters with multiple Inlet ports. This Splitflow pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.
The Splitflow 200 pump / PMP05224 / G6303-80010 is a well know pump and proven within Instruments industry.
Pfeiffer Vacuum Splitflow Turbo pump is designed for a wide range of applications in research industry, and mass spectrometry.
It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer SplitFlow 200 Turbo Pump comes with an entire 12-Month Warranty.
Pfeiffer Splitflow 270 Technical Data:
- Fully rebuild and ready to be installed.
- Pumping speed: for N2 210-130 l/s.
- DN 100 ISO flange
- KF-25 Outlet Flange
- Ultimate pressure with rotary vane pump < 1x•10-9 mbar,
- Gas throughput for N2 7 mbar l/s,
- Fore Vacuum max. for N2 10 mbar,
- Sealing gas connection: yes,
- The gas throughput is measured at HV-pressure of 0.1 mbar and with sealing gas.
- Cooling water quantity is measured at max. gas throughput.
A&J Vacuum repair / rebuild and service all Pfeiffer Splitflow 270 Turbo Pumps PMP03623 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
