- Vapour pressure mbar: 20°C / 1 x 10-8
- Vapour pressure mbar: 100°C / 1 x 10-3
- Molecular weight - 420
- Specific gravity at 15°C - 0.86

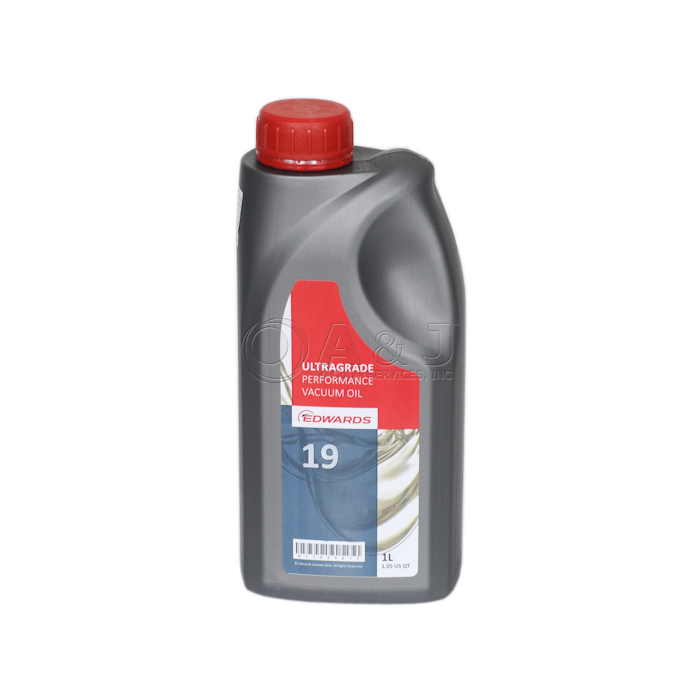

Edwards Ultra Grade 19 Hydrocarbon Vacuum Pump Oil, 1 Liter, H11025015
Overview
Edwards Vacuum UltraGrade 19 Hydrocarbon Vacuum Pump Oil.
For standard applications to pump down air, inert gases and noble gases.
Produced by hydrotreating, which eliminates nitrogen, sulphur providing a base free of impurities. The Edward ultragrade oild improve performance enabling the vacuum pump to withstand high temperatures.
The Edward Vacuum Ultra Grade 19 Hydrocarbon Vacuum Pump Oil Uses:
-
Mass spectrometers
-
Electron microscopes
-
Thin film sputtering
-
Surface studies
-
UHV systems
-
Leak detection
Designed to be used with Edwards Vacuum Rotary Vane Pumps:
- Edwards RV3, RV5, RV8, RV12
- Edwards E2M2, E2M5, E2M8, E2M12
A&J Vacuum Repair / Rebuild and Service All EDWARDS E2M2, E2M5, E2M8, E2M12, Edwards RV3, RV5, RV8, RV12, Vacuum Pumps, nXDS Pumps and all Scroll pump service along with all other Edwards Vacuum Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards Ultra Grade 19 Hydrocarbon Vacuum Pump Oil, 1 Liter, H11025015
Technical Data
| Vapour pressure mbar: | |
| 20°C | 1 x 10-8 |
| 100°C | 1.0 x 10-3 |
| Molecular weight | 420 |
| Specific gravity at 15°C | 0.86 |
| Viscosity cSt: | |
| at 20°C | 143.7 |
| at 40°C | 48.6 |
| Pour point °C | -16 |
| Flash point °C | 230 |
| Auto ignition point °C | 355 |
| Sulphur content % mass/mass | 0 |
A&J Vacuum Repair / Rebuild and Service All EDWARDS E2M2, E2M5, E2M8, E2M12, Edwards RV3, RV5, RV8, RV12, Vacuum Pumps, nXDS Pumps and all Scroll pump service along with all other Edwards Vacuum Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards_Ultra_Grade_15_19_20_70_MSDS_Sheet.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
