Found 4 products
Item#: PN06628 Mfr Part#: PP W42 000 / PPW42000 Manufacturer: Pfeiffer Vacuum
PRICE: $26,300.00
WEB SAVINGS: $1,315.00
YOU PAY: $24,985.00

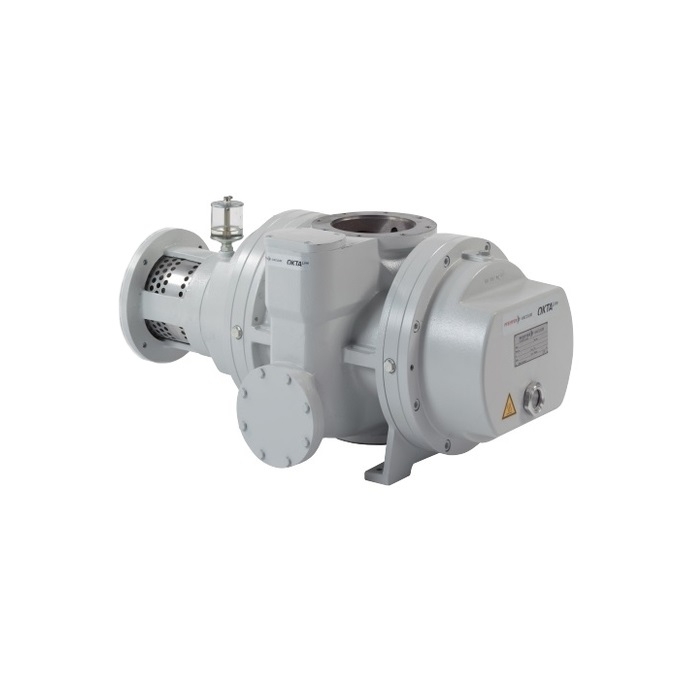

Pfeiffer Vacuum Okta 1000 M Magnetic coupling (formerly WKP 1000A) Roots Booster Pump, 1280 m3/hr,  230/400 V, 50 Hz or 265/460 V, 60 Hz, PP W42 000 / PPW42000, OKTA1000M

The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.



Pfeiffer OKTA 1000 M / PP W42 000 Key Feautures:

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 1420 m3/h at 60 Hz
  • Magnetic coupling
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum



Scope of the OKTA 1000 M Booster Pump Delivery:

  • Roots Pump
  • Seals for the connection flanges; for ISO flanges, centering rings are included
  • Cover disks for the connecting flanges
  • Screw kit for the connection flange
  • 2 eye bolts for lifting the roots pump
  • Lubricant P3 (standard version)
  • Motor-side coupling half for roots pumps without motor
  • Operating instructions

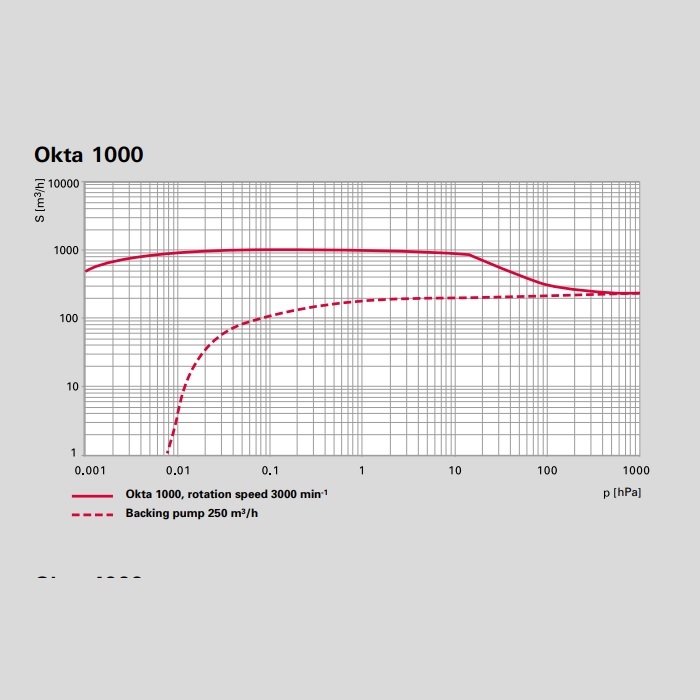

Pfeiffer Vacuum OKTA 1000 Pumping Speed:





Customer benefits of Pfeiffer Okta 1000 M Roots Booster:

  • Long life due to robust, compact design
  • Short pumpdown time by high compression ratio and overflow valve
  • Maintenance free at high operating safety and maximum availability due to the optional magnetic coupling
  • Low operating costs bacause of air cooling and optional magnetic coupling
  • A cooling water unit is not required
  • Pumps available in stainless steel versions upon request
  • Energy efficient, frequenzy converter suitable standard motors

The Pfeiffer Vacuum Okta integrated overflow valve is standard in all convectioncooled pumps. This makes it possible to switch the pump on at atmospheric pressure. The pump is thus automatically protected from thermal overload. The gain in additional pumping speed allow for shorter cycle times in load lock applications and time-critical processes. Monitoring with fault-prone pressure switches and slow start up with cost-intensive frequency converters is no longer needed.

Pfeiffer Okta 1000 M Roots Booster typical applications:

  • Glass and foil coating
  • Plasma etching
  • Vacuum metallurgy
  • PVD and CVD
  • Space simulation
  • Vacuum drying / freeze drying
  • Steel degassing / secondary metallurgy
  • Electron beam welding

The gear and bearing chambers in Pfeiffer OKTA 1000 M Roots Booster Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantages of Pfeiffer OKTA 1000 M Booster: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of Pfeiffer Okta WKP 500 Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

The high-precision production technology of Pfeiffer Vacuum OKTA 1000 M Roots pumps makes it possible to achieve very high compression values, which in turn allows for maximum pumping speed at very low gas exit temperatures. Pfeiffer Vacuum Roots pumps offer low operating costs at high uptime, since electrical power and (depending on the process) a gaseous purge medium (e.g. air) are all that they require. A high cost water-cooling unit is not required. The magnetic coupled version makes leaks at the shaft feedthrough an issue of the past.

Used in combination with other Roots pumps or appropriate backing pumps, Roots pumps can be adapted perfectly to any application. Pfeiffer Vacuum is the leading supplier of vacuum solutions has more than 50 years of experience in the design of customer-specific vacuum pumpiing systems solutions.



A&J Vacuum Services Repairs and Service Pfeiffer OKTA 1000 M, WKP 1000 M Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN06629 Mfr Part#: PP W41 000 / PPW41000 Manufacturer: Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale

Pfeiffer Vacuum Okta 1000A (formerly WKP 1000A) Roots Booster Pump, 1280 m3/hr,  230/400 V, 50 Hz or 265/460 V, 60 Hz, PP W41 000 / PPW41000, OKTA1000

The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.



Pfeiffer OKTA 1000 / PP W41 000 Key Feautures:

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 1280 m3/h
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum



Scope of the OKTA 1000 Booster Pump Delivery:

  • Roots Pump
  • Seals for the connection flanges; for ISO flanges, centering rings are included
  • Cover disks for the connecting flanges
  • Screw kit for the connection flange
  • 2 eye bolts for lifting the roots pump
  • Lubricant P3 (standard version)
  • Motor-side coupling half for roots pumps without motor
  • Operating instructions



Pfeiffer Vacuum OKTA 1000 Pumping Speed:





Customer benefits of Pfeiffer Okta 1000 Roots Booster:

  • Long life due to robust, compact design
  • Short pumpdown time by high compression ratio and overflow valve
  • Maintenance free at high operating safety and maximum availability due to the optional magnetic coupling
  • Low operating costs bacause of air cooling and optional magnetic coupling
  • A cooling water unit is not required
  • Pumps available in stainless steel versions upon request
  • Energy efficient, frequenzy converter suitable standard motors

The Pfeiffer Vacuum Okta integrated overflow valve is standard in all convectioncooled pumps. This makes it possible to switch the pump on at atmospheric pressure. The pump is thus automatically protected from thermal overload. The gain in additional pumping speed allow for shorter cycle times in load lock applications and time-critical processes. Monitoring with fault-prone pressure switches and slow start up with cost-intensive frequency converters is no longer needed.

Pfeiffer Okta 1000 Roots Booster typical applications:

  • Glass and foil coating
  • Plasma etching
  • Vacuum metallurgy
  • PVD and CVD
  • Space simulation
  • Vacuum drying / freeze drying
  • Steel degassing / secondary metallurgy
  • Electron beam welding

The gear and bearing chambers in Pfeiffer OKTA 1000 Roots Booster Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantages of Pfeiffer OKTA 1000 Booster: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of Pfeiffer Okta WKP 500 Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

The high-precision production technology of Pfeiffer Vacuum OKTA 1000 Roots pumps makes it possible to achieve very high compression values, which in turn allows for maximum pumping speed at very low gas exit temperatures. Pfeiffer Vacuum Roots pumps offer low operating costs at high uptime, since electrical power and (depending on the process) a gaseous purge medium (e.g. air) are all that they require. A high cost water-cooling unit is not required. The magnetic coupled version makes leaks at the shaft feedthrough an issue of the past.

Used in combination with other Roots pumps or appropriate backing pumps, Roots pumps can be adapted perfectly to any application. Pfeiffer Vacuum is the leading supplier of vacuum solutions has more than 50 years of experience in the design of customer-specific vacuum pumpiing systems solutions.



A&J Vacuum Services Repairs and Service Pfeiffer OKTA 1000, WKP 1000 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: Discontinued
Item#: PN06630 Mfr Part#: PPW41000F / PP W41 000 F Manufacturer: Pfeiffer Vacuum
PRICE: $27,060.00
WEB SAVINGS: $2,460.00
YOU PAY: $24,600.00

Pfeiffer Okta 1000A (formerly WKP 1000A) Roots Pump (Vacuum Booster Pump), 1280 m3/hr, PPW41000F / PP W41 000 F

The pumping speed of our OktaLine Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.

The gear and bearing chambers in our Roots Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantage: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of our proven Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 1070 m3/h
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum

Condition: New
Item#: PN06631 Mfr Part#: PP W41 001 PPW41001 Manufacturer: Pfeiffer Vacuum
PRICE: $22,300.00
WEB SAVINGS: $1,115.00
YOU PAY: $21,185.00

Pfeiffer Vacuum Okta 1000 A Roots Vacuum Pump only (Without Electric Motor) PP W41 001 / PPW41001, OKTA1000

The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.



Pfeiffer OKTA 1000 / PP W41 000 Key Feautures:

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 1280 m3/h
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum



Scope of the OKTA 1000 Booster Pump Delivery:

  • Roots Pump without Electric Motor
  • Seals for the connection flanges; for ISO flanges, centering rings are included
  • Cover disks for the connecting flanges
  • Screw kit for the connection flange
  • 2 eye bolts for lifting the roots pump
  • Lubricant P3 (standard version)
  • Motor-side coupling half for roots pumps without motor
  • Operating instructions



Pfeiffer Vacuum OKTA 1000 Pumping Speed:





Customer benefits of Pfeiffer Okta 1000 Roots Booster:

  • Long life due to robust, compact design
  • Short pumpdown time by high compression ratio and overflow valve
  • Maintenance free at high operating safety and maximum availability due to the optional magnetic coupling
  • Low operating costs bacause of air cooling and optional magnetic coupling
  • A cooling water unit is not required
  • Pumps available in stainless steel versions upon request
  • Energy efficient, frequenzy converter suitable standard motors

The Pfeiffer Vacuum Okta integrated overflow valve is standard in all convectioncooled pumps. This makes it possible to switch the pump on at atmospheric pressure. The pump is thus automatically protected from thermal overload. The gain in additional pumping speed allow for shorter cycle times in load lock applications and time-critical processes. Monitoring with fault-prone pressure switches and slow start up with cost-intensive frequency converters is no longer needed.

Pfeiffer Okta 1000 Roots Booster typical applications:

  • Glass and foil coating
  • Plasma etching
  • Vacuum metallurgy
  • PVD and CVD
  • Space simulation
  • Vacuum drying / freeze drying
  • Steel degassing / secondary metallurgy
  • Electron beam welding

The gear and bearing chambers in Pfeiffer OKTA 1000 Roots Booster Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantages of Pfeiffer OKTA 1000 Booster: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of Pfeiffer Okta WKP 500 Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

The high-precision production technology of Pfeiffer Vacuum OKTA 1000 Roots pumps makes it possible to achieve very high compression values, which in turn allows for maximum pumping speed at very low gas exit temperatures. Pfeiffer Vacuum Roots pumps offer low operating costs at high uptime, since electrical power and (depending on the process) a gaseous purge medium (e.g. air) are all that they require. A high cost water-cooling unit is not required. The magnetic coupled version makes leaks at the shaft feedthrough an issue of the past.

Used in combination with other Roots pumps or appropriate backing pumps, Roots pumps can be adapted perfectly to any application. Pfeiffer Vacuum is the leading supplier of vacuum solutions has more than 50 years of experience in the design of customer-specific vacuum pumpiing systems solutions.



A&J Vacuum Services Repairs and Service Pfeiffer OKTA 1000, WKP 1000 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
