Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PDS10000
Item#: PN23774 Mfr Part#: PDS10000 Manufacturer: Pfeiffer Vacuum
Condition: New In Stock
New Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S10 000

Features:
  • Inlet Flange: NW 25
  • Exhaust Flange: NW 25
  • Ultimate Vacuum: 3 · 10-2 mbar
  • Pumping speed 3.59 CFM

PRICE: $6,400.00
WEB SAVINGS: $640.00
YOU PAY: $5,760.00
Item#: PN23774 Mfr Part#: PDS10000
Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PDS10000
Item#: PN23774 Mfr Part#: PDS10000 Manufacturer: Pfeiffer Vacuum

Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S10 000, PDS10000

Power Cable not Included ! PN00834

Pfeiffer Vacuum HiScroll 6 Overview:


The Pfeiffer HiScroll 6 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 6 is ideal for compact systems and environments where cooling efficiency is important.

The Pfeiffer Vacuum HiScroll 6 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 6 with Integrated Sensor PD S10 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the HiScroll6 to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.

The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet interface.



Pfeiffer HiScroll6 Characteristics:

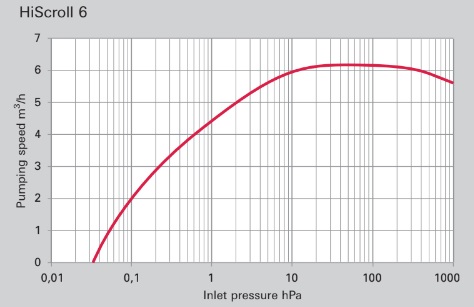

Pfeiffer HiScroll 6 Pumping Speed



Pfeiffer Hi Scroll 6 Features:


  • Increased drive efficiency compared to previous dry scroll pumps.
  • Completely dry and oil-free operation.
  • Low noise emissions, minimal vibration, and compact design.
  • Integrated safety valve and hermetically sealed pump system for safe operation.
  • Easily interfaces with other intelligent products via RS-485 and ProfiNet.
  • Low cost of operation due to high quality components and long maintenance intervals.

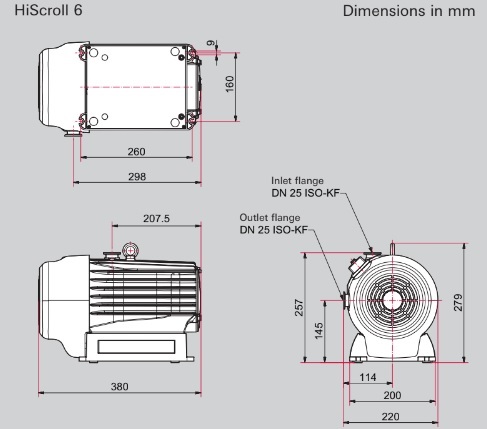

Pfeiffer HiScroll6 Dimensions:


Pfeiffer HiScroll 6 Dimensions

For a Product Video Click Here: https://youtu.be/gd8PZYrvqAk


A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, and HiScroll 18 / PD S30 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S10 000, PDS10000



Pfeiffer HiScroll 6 Technical Data:

HiScroll 6 Specifications








A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PDS10000, HiScroll 12 / PDS20000, and HiScroll 18 / PDS30000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

Name
Price
>
Item#:
PN23819
Mfr Part#:
PDE10000-T / PD E10 000-T
$695.00
| Service and Repair
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.

Overview

Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PDS10000
Item#: PN23774 Mfr Part#: PDS10000 Manufacturer: Pfeiffer Vacuum

Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S10 000, PDS10000

Power Cable not Included ! PN00834

Pfeiffer Vacuum HiScroll 6 Overview:


The Pfeiffer HiScroll 6 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 6 is ideal for compact systems and environments where cooling efficiency is important.

The Pfeiffer Vacuum HiScroll 6 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 6 with Integrated Sensor PD S10 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the HiScroll6 to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.

The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet interface.



Pfeiffer HiScroll6 Characteristics:


Pfeiffer HiScroll 6 Pumping Speed



Pfeiffer Hi Scroll 6 Features:


  • Increased drive efficiency compared to previous dry scroll pumps.
  • Completely dry and oil-free operation.
  • Low noise emissions, minimal vibration, and compact design.
  • Integrated safety valve and hermetically sealed pump system for safe operation.
  • Easily interfaces with other intelligent products via RS-485 and ProfiNet.
  • Low cost of operation due to high quality components and long maintenance intervals.



Pfeiffer HiScroll6 Dimensions:


Pfeiffer HiScroll 6 Dimensions

For a Product Video Click Here: https://youtu.be/gd8PZYrvqAk


A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, and HiScroll 18 / PD S30 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer HiScroll 6 Dry Scroll Pump, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, PD S10 000, PDS10000



Pfeiffer HiScroll 6 Technical Data:

HiScroll 6 Specifications








A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PDS10000, HiScroll 12 / PDS20000, and HiScroll 18 / PDS30000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.

Name
Price
Item#:
PN23819
Mfr Part#:
PDE10000-T / PD E10 000-T
$695.00
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
