- P/N PU E22 001-T
- Diaphragm Vacuum Pump Replacement Kit,
- OEM Replacement Kit
- Pfeiffer Vacuum

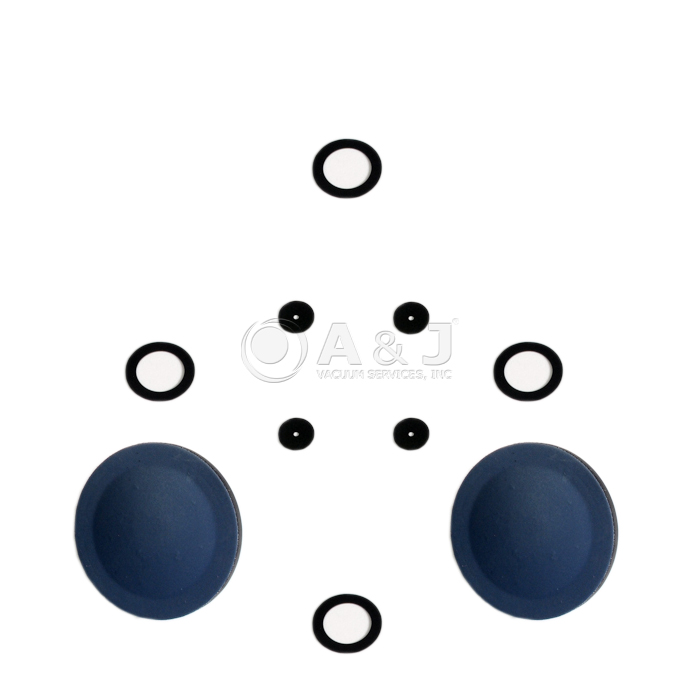

Pfeiffer Diaphragm Kit PU E22 001-T Spare Parts for Pfeiffer Vacuum MVP015-2 Diaphragm Vacuum Pump. PUE22001-T
Pfeiffer PUE22001-T Diaphragm kit Includes the following part form the MVP 015 parts diagram:
#3, 4, 6, 14, 15, 30
The MVP015-2 diaphragm vacuum pump of the series MVP 015-2 is a two stage, dry compressor vacuum pump The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the MVP015-2 pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the MVP015-2 pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- MVP015-2 comes with ON/OFF mains switch.
A&J Vacuum also repair / rebuild and service all Alcatel Adixen Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Pfeiffer Replacement Diaphragm Kit PU E22 001-T Spare Parts for Pfeiffer Vacuum MVP015-2 Diaphragm Vacuum Pump. PUE22001-T
Pfeiffer PUE22001-T Diaphragm kit Includes the following part form the MVP 015 parts diagram:
#3, 4, 6, 14, 15, 30
The MVP015-2 diaphragm vacuum pump of the series MVP 015-2 is a two stage, dry compressor vacuum pump The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the MVP015-2 pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the MVP015-2 pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- MVP015-2 comes with ON/OFF mains switch.
A&J Vacuum also repair / rebuild and service all Pfeiffer Vacuum Diaphragm Pumps, Turbomolecular Pumps, Booster Pumps, Leak Detectors and manyu more. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Pfeiffer Vacuum MVP 015-2 Diaphragm Pump Operating Instructions
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
