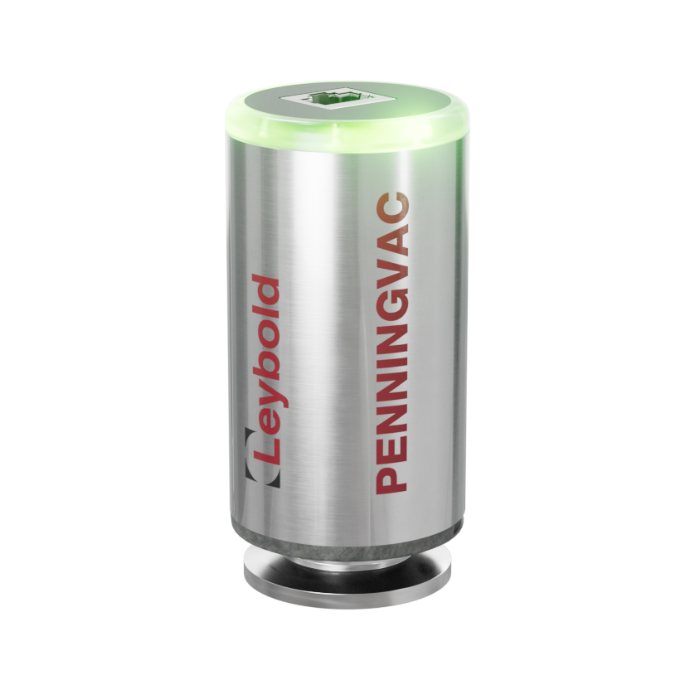

Leybold PTR 90 RN Penningvac Vacuum Gauge, DN 25 ISO-KF, 23L0021100

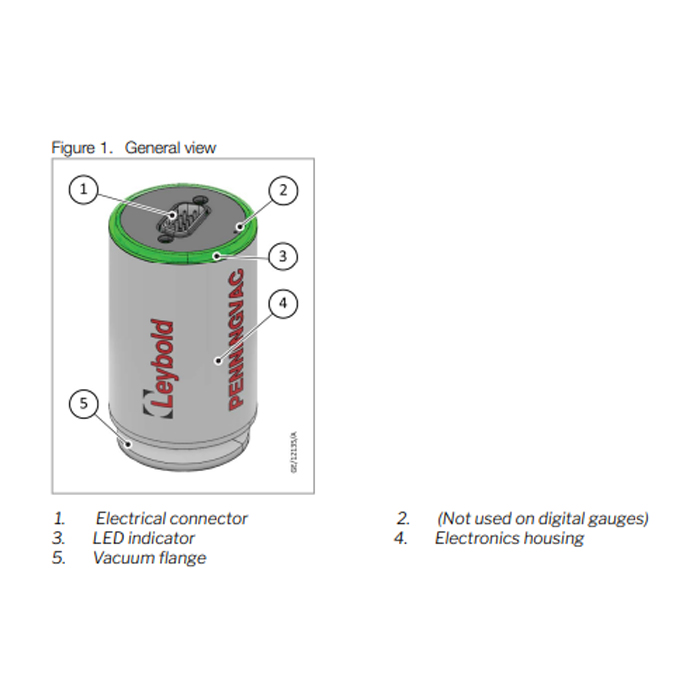

Leybold PTR 90 RN Features:
- Easy monitoring and control
- Robust cold cathode technology at the core
- Flexible choices for flange type, output, and interfaces
- Easy serviceability
- Leybold in-house manufacturing
- Digital and analogue interface options
- Reliable and accurate filament technology
- Reduced footprint
- Backwards compatibility and common voltage scaling
- Adaptive LED pressure indication
- Wide range power supply for 15 V to 48 V integration

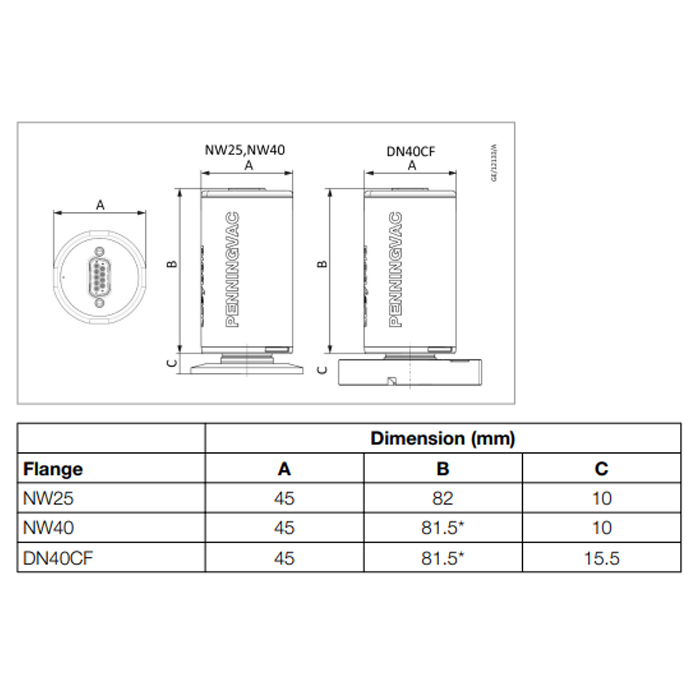

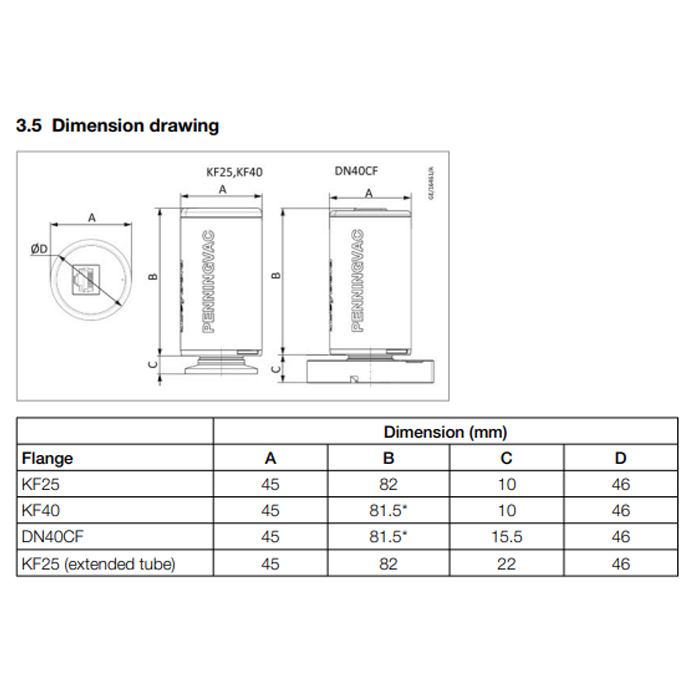

PTR 90 RN / 23L0021100 Overview:
The Leybold PTR90 RN is the direct replacement to the previous generation PTR90N gauges. This model has been upgraded with an LED ring light that indicates vacuum ranges, and also features the latest innovations in reliability and functionality. These gauges are backwards compatible with previous generation PTR setups.
PTR90RN Applications:
- Industrial Applications
- Great for a wide variety of industrial processes ranging from glass coating to industrial furnaces.
- The robust cold cathode and filament pirani eliminates issues due to dust and particulate contamination ensuring the longevity of the gauge.
- Medical and Pharmaceutical Applications
- "Fit and forget" design supports consistent performance and flexibility of interfaces from early development right through to serial production.
- Reduced down time and consistency from batch to batch and from scan to scan.
- Research and Development Applications
- The wide variety of options for flange type, communication protocols and more allows freedom of choice across many diverse R&D applications.
- The wide variety of options for flange type, communication protocols and more allows freedom of choice across many diverse R&D applications.
- Analytical Instruments Applications
- Miniaturized gauging with reduced magnetic stray field and increased output option help you deliver increased control without compromise.
- Cutting edge technology with the latest improvements in reliability, functionality, and reduced footprint.
