- Fully Remanufactured Turbo System
- Ultimate Pressure: 1x10-6 Torr
- Pumping speed 7.5 l/s
Shopping Cart ( )

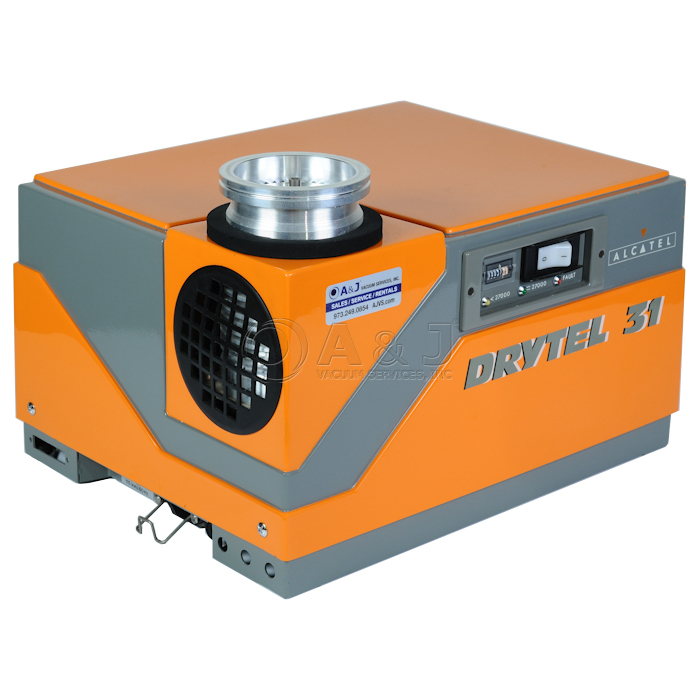

Alcatel Drytel 31 Dry Vacuum Turbo Pumping Station
Condition:
Remanufactured
Call us for Availability
Item#:PN00291
Mfr Part#:Drytel31
Manufacturer:Adixen / Alcatel
Features:
ALCATEL DRYTEL 31 DRY VACUUM TURBO PUMPING STATION
Alcatel Drytel31 is an oil-free turbo drag high vacuum pumping system, Alcatel olso known as Adixen
ALCATEL DRYTEL 31 is an oil-free turbo drag high vacuum pumping system. The Drytel 31 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation.
DRYTEL 31 high vacuum pumping system is composed of a turbo drag pump backed with diaphragm pump. The Alcatel MDP-5011 turbo drag pump is the primary high vacuum pump with DN-63-ISO inlet flange, Alcatel Drytel 30 system produce outstanding high vacuum flow rates. The ALCATEL DRYTEL 31 comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
Alcatel Drytel 31 oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required. Drytel 30 is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.
Alcatel Drytel 31 usual applications: university research, space research, physics research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar indusry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.
If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions.
Our knowledgeable staff will be happy to assist you.
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
ALCATEL DRYTEL 31 DRY VACUUM TURBO PUMPING STATION
Inlet Flange: DN-63-ISO
Ultimate Pressure: 1x10-6 Torr
Pumping speed 7.5 l/s
Input Power: 115 VAC / 60 Hz
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
