- Electrical supply: 110/115 VAC
- Material: aluminium body - elastomer membrane
- Air venting at closing: 7.10-2 mbar.l/s
- Leak rate: <10-4 mbar.l/s
Vacuum Isolation Safety Valve Pfeiffer Adixen ISV 25, DN 25 ISO-KF, 110/115 V, 50/60 Hz, 115901 / 066881
Adixen ISV Safety Isolation Valve 115901 Overview
The Pfeiffer Adixen ISV series valve is used at the inlet of rotary vane pumps (4 to 20 m3 /h) whenever isolation is required with vacuum circuit, in case of power failure. In addition, the ISV isolation valve acts as a venting valve for the rotary vane pump, while isolating the vacuum chamber. Suitable for neutral or slightly corrosive gas.
Adixen ISV Features:
- Total safety for pumping systems
- Low energy consumption
- Low dust production, thanks to slow return to atmospheric pressure
- Optional dry nitrogen gas, can be injected instead of air
- Operation in all positions
- Opens only when the inlet pressure of the pump is lower than the pressure into the vacuum chamber
Pfeiffer Adixen ISV Applications:
- Safety feature between rotary vane pumps and turbomolecular or diffusion pumps. Avoid hydrocarbon backstreaming from the rotary vane pump.
ISV Isolation Valve Operating Principle:
Start-up conditions: The different parts of the valve are at atmospheric pressure. No power is supplied to electric coil. The piston is opened under pressure from return spring.
Operating conditions: The electrical coil is powered. The solenoid valve closes, isolating the upper chamber of the valve from external air. The pumping is performed in the direction of the arrow (“pump”).
Note: on closing, a slight air flow of air (about 7 x 10-2 mbar) enters the vacuum chamber.
Vacuum Isolation Safety Valve Pfeiffer Adixen ISV 25, DN 25 ISO-KF, 110/115 V, 50/60 Hz, 115901 / 066881

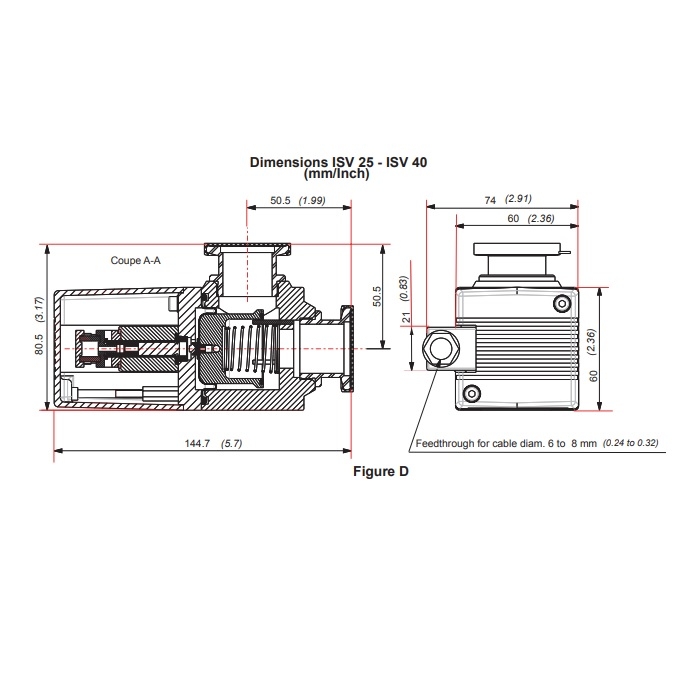

Pfeiffer Adixen ISV Technial Data:
- Weight: 0.640 kg
- Material: aluminium body - elastomer membrane
- Maximum working temperature: 40° C
- Leak rate: <10-4 mbar.l/s
- Air venting at closing: 7.10-2 mbar.l/s
Pfeiffer Adixen ISV16, ISV25, ISV40 Safety Valves Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Vacuum Isolation Safety Valve Pfeiffer Adixen ISV 25, DN 25 ISO-KF, 110/115 V, 50/60 Hz, 115901 / 066881
Adixen ISV Safety Isolation Valve 115901 Overview
The Pfeiffer Adixen ISV series valve is used at the inlet of rotary vane pumps (4 to 20 m3 /h) whenever isolation is required with vacuum circuit, in case of power failure. In addition, the ISV isolation valve acts as a venting valve for the rotary vane pump, while isolating the vacuum chamber. Suitable for neutral or slightly corrosive gas.
Adixen ISV Features:
- Total safety for pumping systems
- Low energy consumption
- Low dust production, thanks to slow return to atmospheric pressure
- Optional dry nitrogen gas, can be injected instead of air
- Operation in all positions
- Opens only when the inlet pressure of the pump is lower than the pressure into the vacuum chamber
Pfeiffer Adixen ISV Applications:
- Safety feature between rotary vane pumps and turbomolecular or diffusion pumps. Avoid hydrocarbon backstreaming from the rotary vane pump.
ISV Isolation Valve Operating Principle:
Start-up conditions: The different parts of the valve are at atmospheric pressure. No power is supplied to electric coil. The piston is opened under pressure from return spring.
Operating conditions: The electrical coil is powered. The solenoid valve closes, isolating the upper chamber of the valve from external air. The pumping is performed in the direction of the arrow (“pump”).
Note: on closing, a slight air flow of air (about 7 x 10-2 mbar) enters the vacuum chamber.
Specifications
Vacuum Isolation Safety Valve Pfeiffer Adixen ISV 25, DN 25 ISO-KF, 110/115 V, 50/60 Hz, 115901 / 066881
Pfeiffer Adixen ISV Technial Data:
- Weight: 0.640 kg
- Material: aluminium body - elastomer membrane
- Maximum working temperature: 40° C
- Leak rate: <10-4 mbar.l/s
- Air venting at closing: 7.10-2 mbar.l/s
