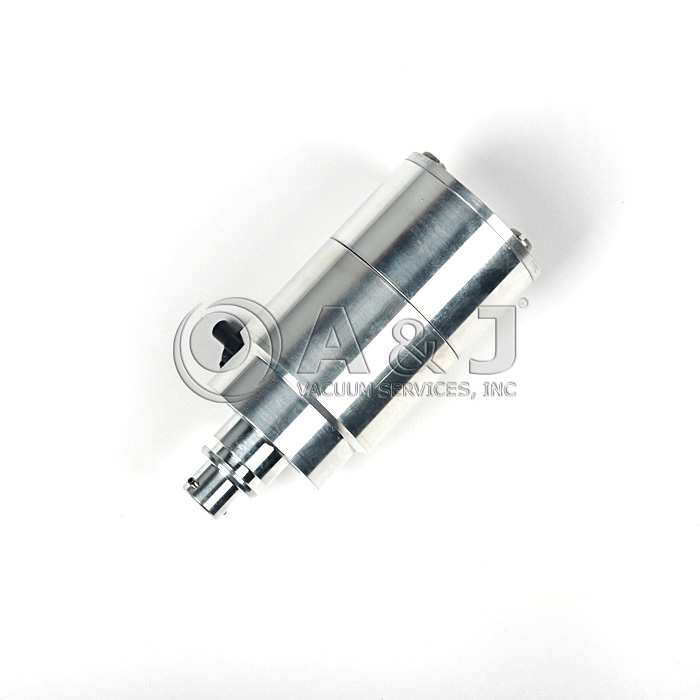

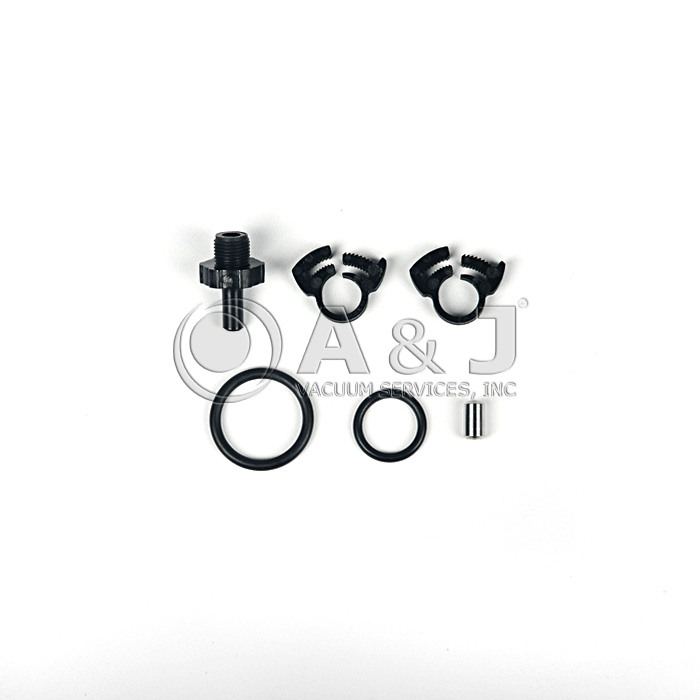

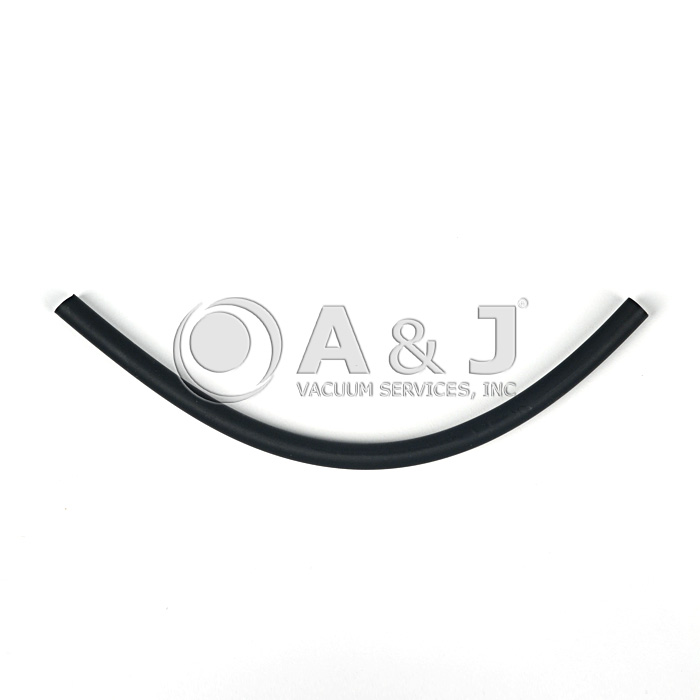

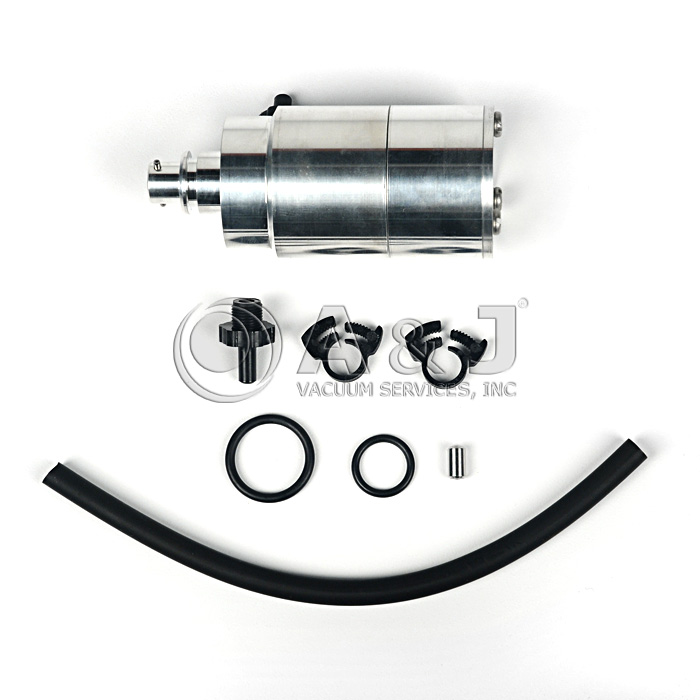

Edwards RV3, RV5, RV8, RV12 Adjustable Gas Ballast Oil Return Kit for EMF 10, EMF 20, A50523000, A505-23-000
Overview:
The Edwards Adjusable Oil Drain Kit is supplied configured so that the gas ballast flow rate is equivalent to that with the gas ballast control on the pump in position ‘II’. If required, you can adjust the gas ballast flow rate.
The Oil Drain Kit is designed for use with an RV3, RV5, RV8 or RV12 pump (fitted with an EMF oil mist filter) which operates continuously with gas ballast switched on. You cannot use the Oil Drain Kit if you want to introduce a purge gas into the RV pump. If you want to introduce a purge gas into the RV pump, you must fir a Gas Ballast Adaptor to the pump (refer to the RV pump instruction manual) and oil cannot be returned from the pump.
The Edwards Vacuum Clean Application Oil Return Kit A50523000 conserve the pump oil, by returning the oil trapped in the mist filter to the pump.
When fitted, the adjustable oil return kit returns oil trapped in the oil mistfilter back to the pump, through the gas ballast port. This Edwards Oil Return kit reduces oil loss from the pump and laso reduces the need to check the oil level in the pump.
This oil Return kit can be only used if the gases pumped do not contaminate the oil. On all Edwards RV3, RV5, RV8 and RV12 pumps Oil Drain Kit is fitted in place of gas ballast control knob.
In normal operation, the oil level will be at or below the level of the drain adaptor on the Edwards EMF oil mist filter.
Edwards Oil Return Kit is designed to fit the following pump models:
Edwards RV3
Edwards RV5
Edwarda RV8
Edwards RV12
Edwards E2M2
Edwards E2M5
Edwards E2M8
Edwards E2M12
Please refer to operation manual for detailed instalation instructions and application instructions.
Edwards Oil Return kit is usualy used with Edwards EMF10 / A46226000 / PN00837 and Edwards EMF20 / A46229000 / PN00844 Oil Mist Filters.
Edwards Mist Elements and Odor Elements can also be purchased seperately and replaced when needed.
Mist Element for Edwards EMF 10 / A22304198 / Ordering number PN06387
Odor Element for Edwards EMF 10 / A22304198 / Ordering number PN06386
Mist Element for Edwards EMF 20 / A22304199 / Ordering number PN06389
Odor Element for Edwards EMF 20 / Ordering number PN06388
A&J Vacuum also repair / rebuild and service all Edwards RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards RV3, RV5, RV8, RV12 Adjustable Gas Ballast Oil Return Kit for EMF 10, EMF 20, A50523000, A505-23-000
Overview:
The Edwards Adjusable Oil Drain Kit is supplied configured so that the gas ballast flow rate is equivalent to that with the gas ballast control on the pump in position ‘II’. If required, you can adjust the gas ballast flow rate.
The Oil Drain Kit is designed for use with an RV3, RV5, RV8 or RV12 pump (fitted with an EMF oil mist filter) which operates continuously with gas ballast switched on. You cannot use the Oil Drain Kit if you want to introduce a purge gas into the RV pump. If you want to introduce a purge gas into the RV pump, you must fir a Gas Ballast Adaptor to the pump (refer to the RV pump instruction manual) and oil cannot be returned from the pump.
The Edwards Vacuum Clean Application Oil Return Kit A50523000 conserve the pump oil, by returning the oil trapped in the mist filter to the pump.
When fitted, the adjustable oil return kit returns oil trapped in the oil mistfilter back to the pump, through the gas ballast port. This Edwards Oil Return kit reduces oil loss from the pump and laso reduces the need to check the oil level in the pump.
This oil Return kit can be only used if the gases pumped do not contaminate the oil. On all Edwards RV3, RV5, RV8 and RV12 pumps Oil Drain Kit is fitted in place of gas ballast control knob.
In normal operation, the oil level will be at or below the level of the drain adaptor on the Edwards EMF oil mist filter.
Edwards Oil Return Kit is designed to fit the following pump models:
Edwards RV3
Edwards RV5
Edwarda RV8
Edwards RV12
Edwards E2M2
Edwards E2M5
Edwards E2M8
Edwards E2M12
Please refer to operation manual for detailed instalation instructions and application instructions.
Edwards Oil Return kit is usualy used with Edwards EMF10 / A46226000 / PN00837 and Edwards EMF20 / A46229000 / PN00844 Oil Mist Filters.
Edwards Mist Elements and Odor Elements can also be purchased seperately and replaced when needed.
Mist Element for Edwards EMF 10 / A22304198 / Ordering number PN06387
Odor Element for Edwards EMF 10 / A22304198 / Ordering number PN06386
Mist Element for Edwards EMF 20 / A22304199 / Ordering number PN06389
Odor Element for Edwards EMF 20 / Ordering number PN06388
A&J Vacuum also repair / rebuild and service all Edwards RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
