- PN 736803
- Pumping Speed: 2.2 CFM
- Ultimate Pressure 1.5 mbar
- Inlet Connection: 2 x hose nozzle DN 8-10 mm
Vacuubrand MD 4C NT +AK SYNCHRO+EK Chemistry Diaphragm Pump, with Separator, 100-120V / 50-60Hz, US Power Cord, 2.2 CFM, 1.5 mbar, 736803 / 20736803
Vacuubrand MD 4C NT +AK SYNCHRO+EK Features:
- Laboratory quiet with very low vibration
- Simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between applications
- Excellent for parallel operations of several vacuum ports
- High performance
- Outstanding chemical resistance
- Long diaphragm life
- Perfect for laboratory vacuum applications
- Exceptionally high performance even at low vacuum
MD 4C NT +AK SYNCHRO+EK / 20736803 Overview:
Vacuubrand MD 4C NT +AK SYNCHRO + EK is the one stage chemical resistant version diaphragm pump with exellent performance and continuous dry vacuum pumping of gases and vapors at low vacuum requirement. MD4C NT +2AK SYNCHRO offers great vacuum pressure down to 7 mbar with simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between applications
Vacuubrand MD4C NT +2AK SYNCHRO is equipped with the separator at the Inlet (AK) made of glass with protective coating. The separator retains liquid droplets and particles. The seperator at the outlet port collects condensate, and also avoids condensate backflow towards the diaphragm pump. Seperator contribute to quiet pump operation.
MD4C NT +2AK SYNCHRO New Technology pumps are ideal for vacuum ovens, vacuum manifolds, filtration process.
One Stage design provides the combination of low ultimate vacuum and high pumping speed.
MD4CNT+AK SYNCHRO+EK Scope of Delivery:
- Pump completely mounted
- Manual
MD4CNT+AK SYNCHRO+EK Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MD 4C NT +AK SYNCHRO+EK Chemistry Diaphragm Pump, with Separator, 100-120V / 50-60Hz, US Power Cord, 2.2 CFM, 1.5 mbar, 736803 / 20736803
Vacuubrand MD 4C NT +AK SYNCHRO+EK Technical Data:

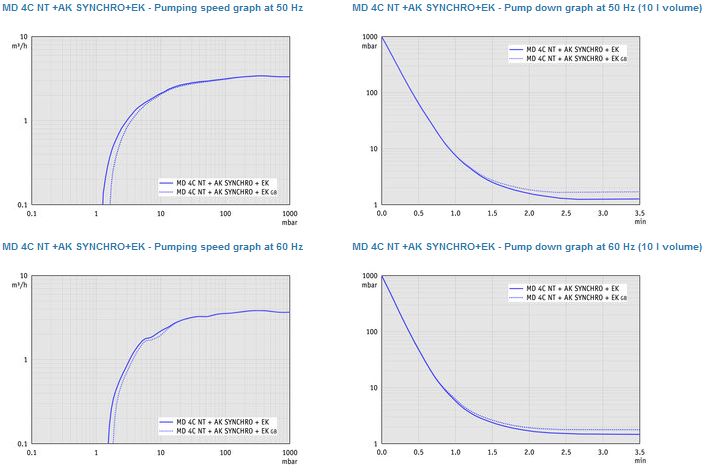

- Max. pumping speed 50 Hz: 3.4 m3/h
- Max. pumping speed 60 Hz: 2.2 cfm
- Ultimate vacuum: 1.5 mbar / 1.1 torr
- Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
- Number of heads: 4
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: 2 x hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.25 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40

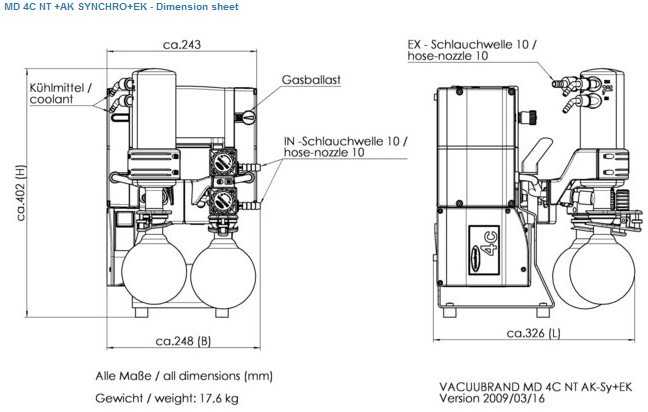

- Dimension L in mm: 326 mm
- Dimension B in mm: 248 mm
- Dimension H in mm: 402 mm
- Weight: 17.6 kg | 39 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- NRTL certification: Yes
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
