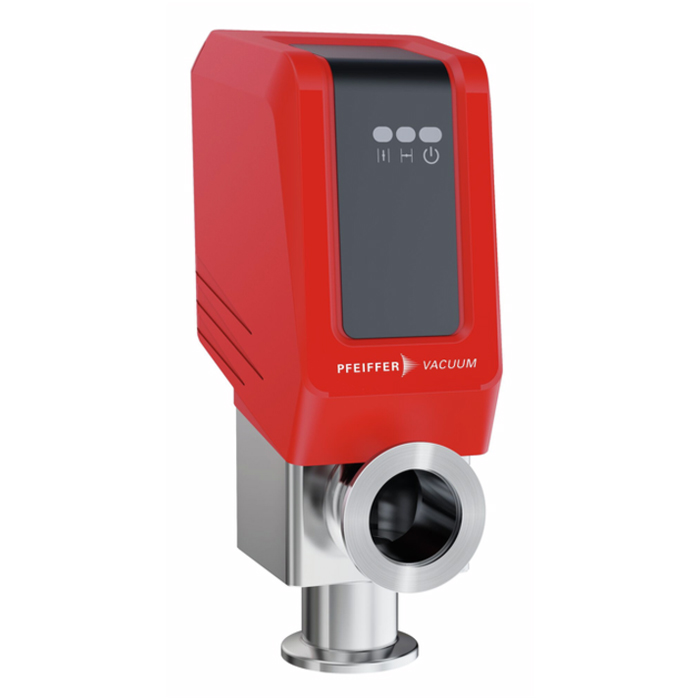

Pfeiffer Angle Valve, DN 25 ISO-KF, Electric, Aluminum, PI, 24 VDC, EAV-A03150

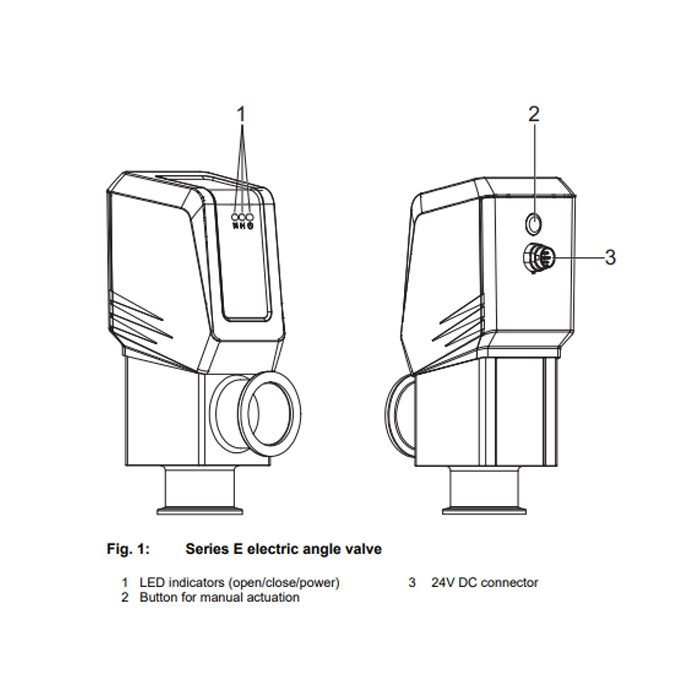

Pfeiffer Angle Valve Features:
- Electric Actuation - 24 VDC
- Lower power consumption
- Easy integration
- Fast open and close
- High reliability
- Includes visual position indicator (LED)
- Local mode button
Angle Valve / EAV-A03150 Overview:
The Pfeiffer valve operates with a 24V DC supply voltage. When control voltage is applied, the electric actuator opens the angle valve, and the “Open” LED illuminates white to indicate the valve is open. When the control voltage is removed, the actuator closes the valve, and the “Closed” LED lights up white to confirm the valve is closed.
If the control voltage is lost or there is a power failure, the valve automatically returns to its default position (either open or closed). A flashing blue “Power” LED signals a power supply issue.
AngleValve Scope of Delivery:
- Series E electric angle valve
- Operating instructions
A&J Vacuum also repairs / rebuilds and services all types of Pfeiffer pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Angle Valve, DN 25 ISO-KF, Electric, Aluminum, PI, 24 VDC, EAV-A03150
Pfeiffer Angle Valve Technical Data:
- Actuator: Electric
- Ambient temperature: 0 – 50 °C | 32 – 122 °F | 273.15 – 323.15 K
- Bakeout temperature - actuator: 50 °C | 122 °F | 323.15 K
- Bakeout temperature - housing: 150 °C | 302 °F | 423.15 K
- Bakeout temperature - valve open, under vacuum: 150 °C | 302 °F | 423.15 K
- Closing/opening time: 160 ms/210 ms
- Conductance value with molecular flow: 14 l/s
- Connection flange: DN 25 ISO-KF
- Current: 20 mA
- Differential pressure in closing direction: 2000 hPa | 1,500 Torr | 2,000 mbar
- Differential pressure in opening direction: 1000 hPa | 750 Torr | 1,000 mbar
- Feedthrough: Bellows, Stainless steel
- Housing: Aluminum
- Input voltage(s): 24 VDC
- Mounting orientation: Arbitrary
- Operating pressure min.: 1 · 10-8 hPa | 7.5 · 10-9 Torr | 1 · 10-8 mbar
- Position indicator: Included
- Position indicator - Load capacity: ≤ 48 V AC / DC / 500 mA
- Power consumption: 0.48 W
- Pressure max. (absolute): 2000 hPa | 1,500 Torr | 2,000 mbar
- Seal: FKM
- Service life: 1000000 cycles
- Temperature range: 0 – 150 °C | 32 – 302 °F | 273.15 – 423.15 K
- Tightness: 1 · 10-9 mbar l/s
- Type: Angle valve
- Valve plate: Stainless steel (AISI 316)
- Weight approx.: 0.8 kg | 1.76 lb

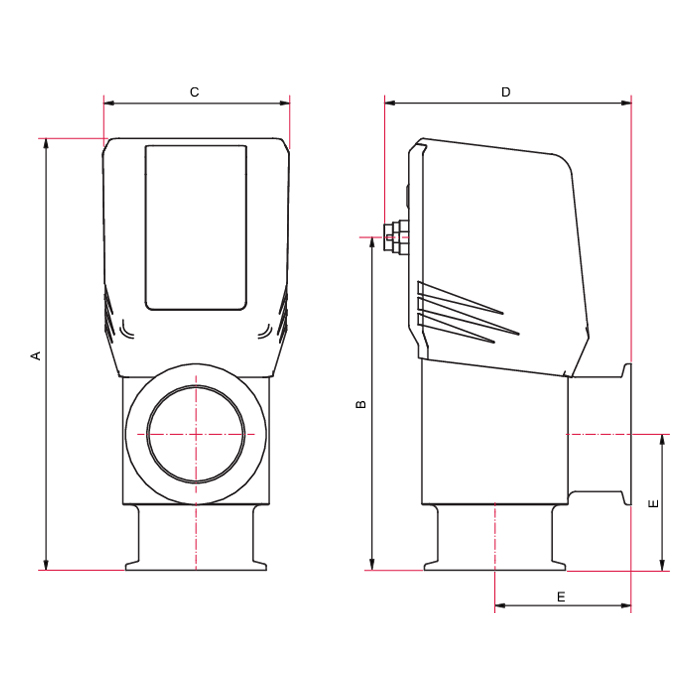

- Dimensions (refer to picture):
- A - 180 mm
- B - 134 mm
- C - 74 mm
- D - 109 mm
- E - 50 mm
A&J Vacuum also repairs / rebuilds and services all types of Pfeiffer pumps. Please contact us for information on the service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
