Pfeiffer Bulkhead Clamp, Aluminum EN AW-6082/3.2315, DN 32-40 ISO-KF, 110BUH040
Item#: PN28475 Mfr Part#: 110BUH040 Manufacturer: Pfeiffer Vacuum
Condition:
Out of Stock
Pfeiffer Bulkhead Clamp, Aluminum EN AW-6082/3.2315, DN 32-40 ISO-KF, 110BUH040

Features:
  • DN 32 -- DN 40 ISO-KF Connection Flange
  • Overpressure Max.: 500 mbar
  • 6 pcs. of Screws
  • Bulkhead Clamp

Price upon request
Item#: PN28475 Mfr Part#: 110BUH040
Pfeiffer Bulkhead Clamp, Aluminum EN AW-6082/3.2315, DN 32-40 ISO-KF, 110BUH040
Item#: PN28475 Mfr Part#: 110BUH040 Manufacturer: Pfeiffer Vacuum

Pfeiffer Bulkhead Clamp, Aluminum EN AW-6082/3.2315, DN 32-40 ISO-KF, 110BUH040




Pfeiffer Bulkhead Clamp Features:


  • Suited for use with elastomer seals
  • Nominal diameter DN 40 ISO-KF for safe fixation of HiPace 30
  • For the mounting on a base plate with KF centering ring
  • DN16, DN25, DN50 not to be used for the installation of turbo pumps



Pfeiffer Bulkhead Clamp / 110BUH040 Overview:


The bulkhead clamp is suited for use with elastomer seals.



Pfeiffer Bulkhead Clamp Scope of Delivery:


  • Bulkhead clamp
  • 6 hexagon screws M5x20 with washers



A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing  Pumps along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Pfeiffer Bulkhead Clamp, Aluminum EN AW-6082/3.2315, DN 32-40 ISO-KF, 110BUH040



Pfeiffer Bulkhead Clamp Technical Data:

  • Connection flange: DN 32 – DN 40 ISO-KF
  • Holes: Number of tapped holes in base plate: DN 10-40: 6 x 60°; DN 50: 8 x 45° (Thread M5, depth: min. 10 mm)  |  2.36 x 1.77 inch
  • Material: Aluminum 3.2315/EN AW-6082
  • Number of screws: 6 pcs.
  • Overpressure max.: 500 hPa |  375 Torr |  500 mbar
  • Scope of delivery: Bulkhead Clamp, 6 hexagon screws M5x20 with washers
  • Temperature range: 196 – 200 °C  |  384.8 – 392 °F |  469.15 – 473.15 K

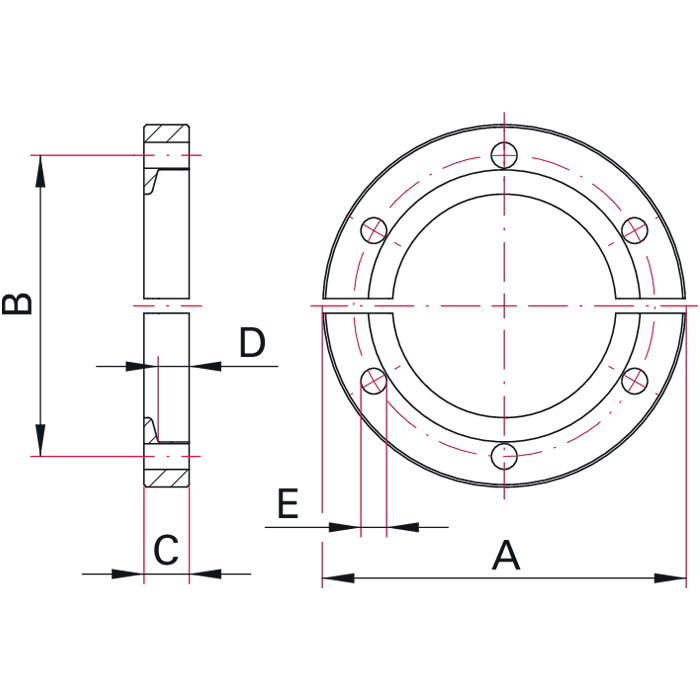

  • A: 74.6 mm
  • B: 62 mm
  • C: 9.3 mm
  • D: 6.6 mm
  • E: 5.3 mm (refer to dimensions picture attached to listing)



A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing  Pumps along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
