- Pressure Max. (absolute): 1000 mbar
- Stainless Steel Housing
- FKM Seal
- Service Life of 100000 Cycles
Shopping Cart ( )

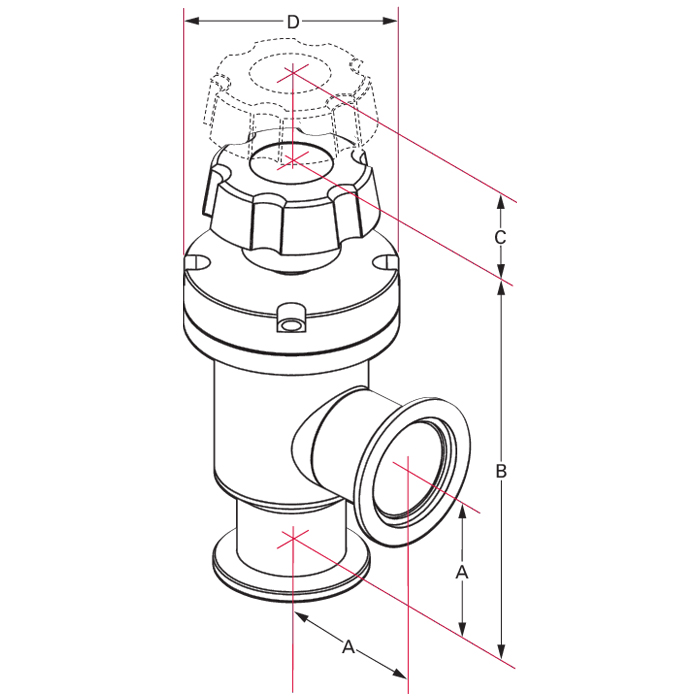

Pfeiffer HV Angle Valve, DN 25 ISO-KF, Manually Operated, 304/FKM, ESV-S03100
Condition:
New
Item#:PN57962
Mfr Part#:ESV-S03100
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer HV Angle Valve, DN 25 ISO-KF, Manually Operated, 304/FKM, ESV-S03100
Pfeiffer HV Angle Valve Features:
- Pressure max. (absolute): 1000 mbar
- With elastomer seals for high vacuum operation
- Fully retracting and opening
- Conductance continuously variable with handwheel
HV Angle Valve / ESV-S03100 Overview:
Pfeiffer pneumatic angle valves are pneumatically operated bellow valves. They are intended for use in high vacuum and ultra high vacuum applications.
HVAngleValve Scope of Delivery:
- Valve
- Optional pilot valve
- Quick-start guide
A&J Vacuum services and repairs Pfeiffer ACP 28 (Single-Phase, Manual Gas Ballast) Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer HV Angle Valve, DN 25 ISO-KF, Manually Operated, 304/FKM, ESV-S03100

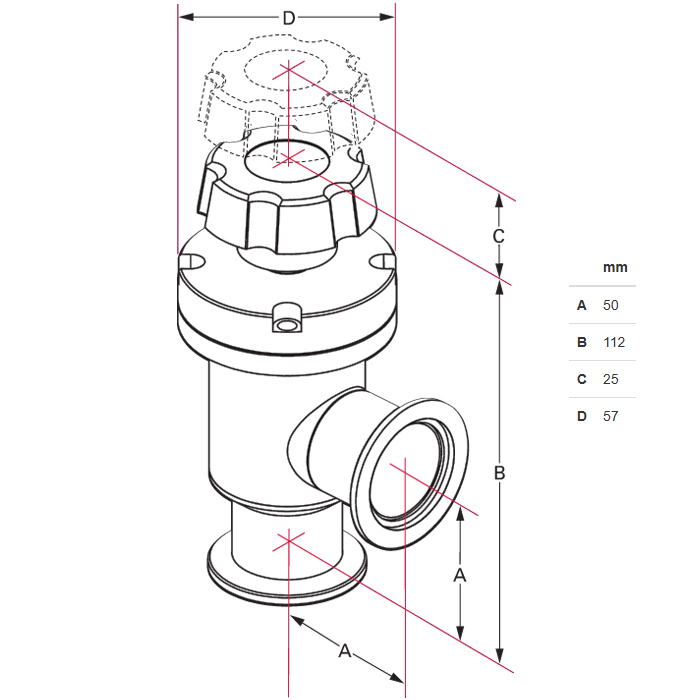

Pfeiffer HV Angle Valve Technical Data:
| Actuator | Spindle |
| Bakeout temperature - actuator | 60 °C | 140 °F | 333.15 K |
| Bakeout temperature - housing | 150 °C | 302 °F | 423.15 K |
| Conductance value with molecular flow | 12 l/s |
| Connection flange | DN 25 ISO-KF |
| Differential pressure in closing direction | 1400 hPa | 1,050 Torr | 1,400 mbar |
| Differential pressure in opening direction | 1400 hPa | 1,050 Torr | 1,400 mbar |
| Feedthrough | Bellows Stainless steel |
| Housing | Stainless steel |
| Operating pressure min. | 1 · 10-8 hPa | 7.5 · 10-9 Torr | 1 · 10-8 mbar |
| Pressure max. (absolute) | 1000 hPa | 750 Torr | 1,000 mbar |
| Seal | FKM |
| Service life | 100000 cycles |
| Tightness | 1 · 10-9 mbar l/s |
| Type | HV Angle Valve |
| Weight | 0.8 kg | 1.76 lb |
A&J Vacuum services and repairs Pfeiffer ACP 28 (Single-Phase, Manual Gas Ballast) Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
