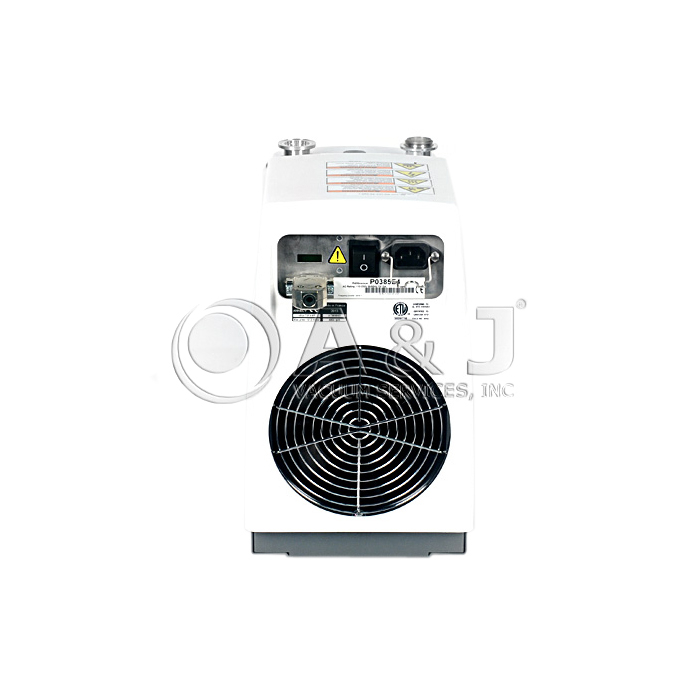

Pfeiffer ACP 28 SD Dry Vacuum Pump, Manual Gas Ballast, Single Phase, 110-230 V (50/60 Hz), 2000001435 / V6SATSGZMF
Pfeiffer ACP 28 SD Dry Vacuum Pump Features:
- Integrated electronic drive unit
- Pumping speed: 27 m3/h | 15.89 cfm
- Ultimate pressure with gas ballast: 2 · 10-1 hPa
- Single phase motor
ACP 28 SD Dry Vacuum Pump / V6SATSGZMF Overview:
Replacement for PN23022 / V6SATSFZMF.
Pfeiffer Vacuum specializes in the manufacture of Dry Multi-Stage Roots Pumps, ideally suited for production of clean and dry vacuum for a variety of processes and applications. Large pumps within the ACP Series provide a high pumping speed while utilizing low final pressures, allowing for high applicability and effectiveness in freeze-drying processes. Small ACP Roots pumps are specialized pumps that generate the fore vacuum required for particle acceleration and other highly concentrated processes. Still other versions of the ACP Series are used for the semiconductor and coating industries. Regardless of the application and industry, each of these processes share a common requirement - namely, the need for clean, dry, and uncontaminated air.
The Pfeiffer ACP 28 SD standard dry vacuum pump is intended for dust-free and non-corrosive gas pumping applications. A gas ballast device is included with the standard pumps to improve the pumping of light gases, and to keep away from vapor condensation inside the pump.
The cable has to be ordered as an accessory separately.
ACP28SD DryVacuumPump Scope of Delivery:
- 1 vacuum pump
- 1 remote cover plug for remote connector (connected to the pump)
- 1 operating instruction manual
- 1 sheet of multilingual labels
- 1 mains supply cable (according to the ordering configuration)
ACP28SD DryVacuumPump Applications:
- Semiconductor manufacturing
- Vacuum coating
- Medical and pharmaceutical
- R&D
- Analytics
A&J Vacuum services and repairs Pfeiffer ACP 28 (Single-Phase, Manual Gas Ballast) Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer ACP 28 SD Dry Vacuum Pump, Manual Gas Ballast, Single Phase, 110-230 V (50/60 Hz), 2000001435 / V6SATSGZMF
Pfeiffer ACP 28 SD Dry Vacuum Pump Technical Data:
| Ambient temperature | 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K |
| Connection flange (in) | DN 25 ISO-KF |
| Connection flange (out) | DN 25 ISO-KF |
| Continuous inlet pressure, max. | 1013 hPa | 759.75 Torr | 1,013 mbar |
| Cooling method | Air (Forced convection) |

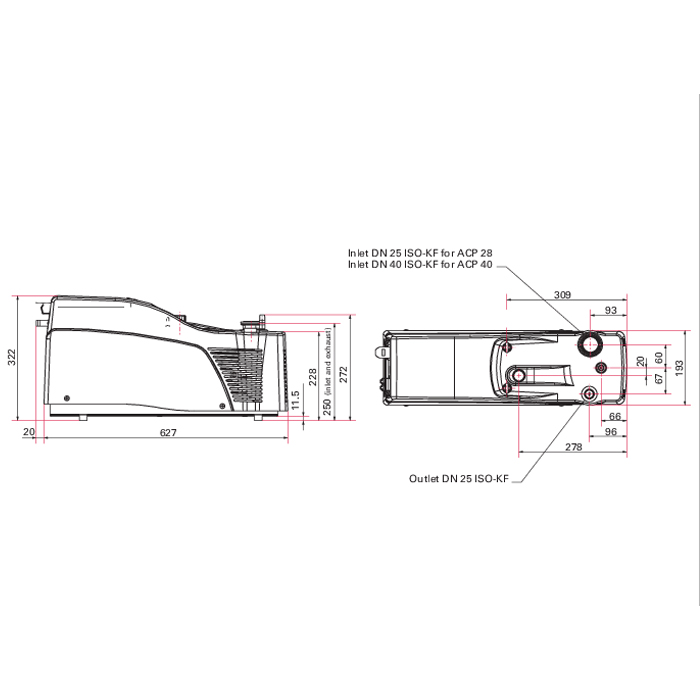

| Dimensions (L x W x H) | 647 x 193 x 322 mm | 25.47 x 7.6 x 12.68 inch |
| Emission sound pressure level (EN ISO 2151) | 65 dB(A) |
| Exhaust pressure, max. | 1200 hPa | 900 Torr | 1,200 mbar |
| Gas ballast | Yes |
| Gas ballast flow | 1.2 m³/h | 0.71 cfm | 20 l/min |
| Helium leakage rate, max. | 5 · 10-7 hPa·l/s |
| Input voltage(s) | 110 – 230 V AC (±10 %), 50/60 Hz |
| Mains cable | No |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Max. pumping capacity of pure water vapor at 20°C | 120 g/h |
| Motor for region | Worldwide |
| Motor type | 1-phase motor |
| Power consumption at ultimate pressure | 700 W |
| Processes | Light duty applications |
| Pumping principle | Dry |
| Pumping speed | 27 m³/h | 15.89 cfm | 450 l/min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Typical ultimate pressure with gas ballast | 2 · 10-1 hPa | 0.15 Torr | 0.2 mbar |
| Typical ultimate pressure without gas ballast or purge | 4 · 10-2 hPa | 3 · 10-2 Torr | 4 · 10-2 mbar |
| Ultimate pressure with gas ballast | 2 · 10-1 hPa | 0.15 Torr | 0.2 mbar |
| Ultimate pressure without gas ballast or purge, max. | 4 · 10-2 hPa | 3 · 10-2 Torr | 4 · 10-2 mbar |
| Version | Standard |
