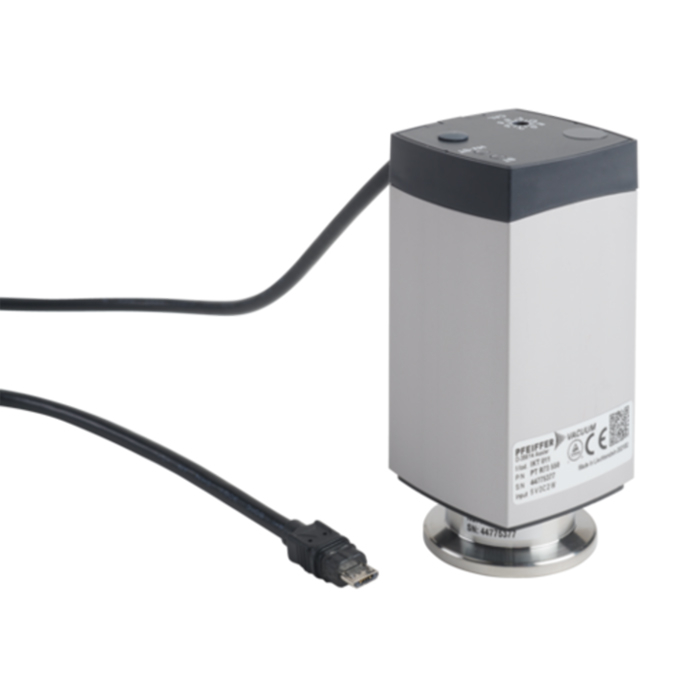

Pfeiffer IKT 011, Digital Cold Cathode Sensor, High Current, PT R73 550 / PTR73550
Pfeiffer IKT 011 Features:
- Input voltages: 5 VDC
- Pressure max.: 1000 mbar
- Low magnetic stray field
- Compact dimensions
- For vacuum processes in high vacuum
- Display range: 1 · 10-8-1 · 10-2 hPa
Pfeiffer IKT 011 / PT R73 550 Overview:
The IKT 011 sensor is intended for high vacuum processes.
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer IKT 011, Digital Cold Cathode Sensor, High Current, PT R73 550 / PTR73550
Pfeiffer IKT 011 Technical Data:
- Accuracy of measurement: 30 % (5E-8 hPa – 1E-2 hPa) | 22.5 – 7.5 · 10-3 Torr | 30 – 1 · 10-2 mbar
- Ambient temperature: 5 – 55 °C | 41 – 131 °F | 278.15 – 328.15 K
- Amode: Mo
- Bakeout temperature max. (electronics removed): ≤ 150 °C | ≤ 302 °F | ≤ 423.15 K

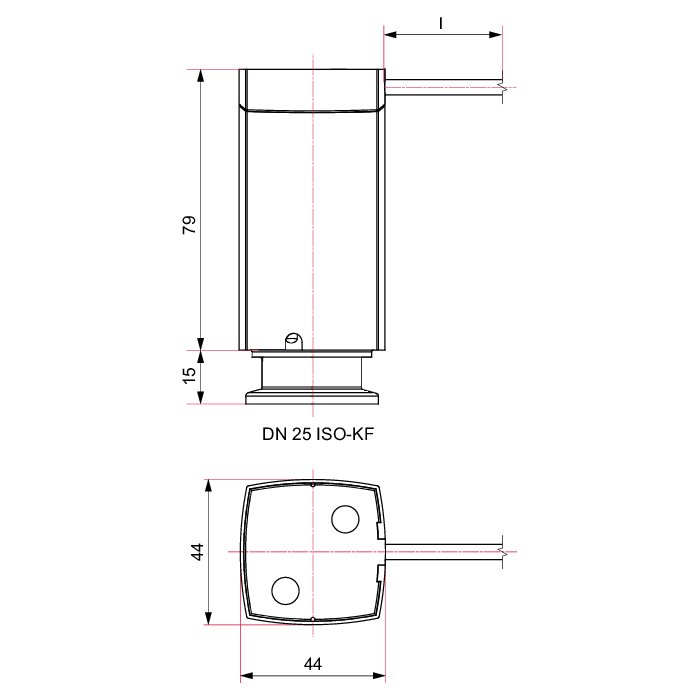

- Connection flange (in): DN 25 ISO-KF
- Feedthrough: Glass
- Flange, material: Stainless Steel 1.4435 (AISI 316L)
- Input voltage(s): 5 V DC
- Interface: Connection, device side - Cable with Micro-USB-connector for HiPace Neo
- Materials in contact with media: Stainless steel 1.4435 (AISI 316L), Stainless steel 1.4310 (AISI 301), Molybdenum, Glass
- Measuring range: 5E-8 – 1E-2 hPa | 3.75 · 10-8 – 7.5 · 10-3 Torr | 5 · 10-8 – 1 · 10-2 mbar
- Power consumption max.: 2 W
- Pressure max.: 1 · 104 hPa | 7,500 Torr | 10,000 mbar
- Protection degree: IP40
- Repeatibility: 5 % (5E-8 hPa – 1E-2 hPa) | 3.75 – 7.5 · 10-3 Torr | 5 – 1 · 10-2 mbar
- Seal: Metal
- Special feature: High current version
- Volume: 19.9 cm³
- Weight approx.: 0.28 kg | 0.62 lb
- Wire to: HiPace Neo
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer IKT 010 and IKT 011 Cold Cathode Sensor Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer IKT 011, Digital Cold Cathode Sensor, High Current, PT R73 550 / PTR73550
Pfeiffer IKT 011 Features:
- Input voltages: 5 VDC
- Pressure max.: 1000 mbar
- Low magnetic stray field
- Compact dimensions
- For vacuum processes in high vacuum
- Display range: 1 · 10-8-1 · 10-2 hPa
Pfeiffer IKT 011 / PT R73 550 Overview:
The IKT 011 sensor is intended for high vacuum processes.
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Specifications
Pfeiffer IKT 011, Digital Cold Cathode Sensor, High Current, PT R73 550 / PTR73550
Pfeiffer IKT 011 Technical Data:
- Accuracy of measurement: 30 % (5E-8 hPa – 1E-2 hPa) | 22.5 – 7.5 · 10-3 Torr | 30 – 1 · 10-2 mbar
- Ambient temperature: 5 – 55 °C | 41 – 131 °F | 278.15 – 328.15 K
- Amode: Mo
- Bakeout temperature max. (electronics removed): ≤ 150 °C | ≤ 302 °F | ≤ 423.15 K
- Connection flange (in): DN 25 ISO-KF
- Feedthrough: Glass
- Flange, material: Stainless Steel 1.4435 (AISI 316L)
- Input voltage(s): 5 V DC
- Interface: Connection, device side - Cable with Micro-USB-connector for HiPace Neo
- Materials in contact with media: Stainless steel 1.4435 (AISI 316L), Stainless steel 1.4310 (AISI 301), Molybdenum, Glass
- Measuring range: 5E-8 – 1E-2 hPa | 3.75 · 10-8 – 7.5 · 10-3 Torr | 5 · 10-8 – 1 · 10-2 mbar
- Power consumption max.: 2 W
- Pressure max.: 1 · 104 hPa | 7,500 Torr | 10,000 mbar
- Protection degree: IP40
- Repeatibility: 5 % (5E-8 hPa – 1E-2 hPa) | 3.75 – 7.5 · 10-3 Torr | 5 – 1 · 10-2 mbar
- Seal: Metal
- Special feature: High current version
- Volume: 19.9 cm³
- Weight approx.: 0.28 kg | 0.62 lb
- Wire to: HiPace Neo
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
