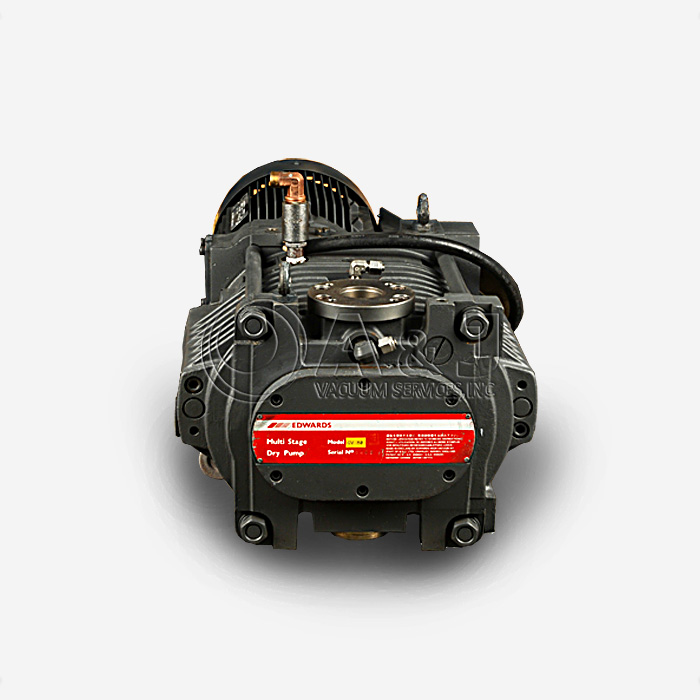

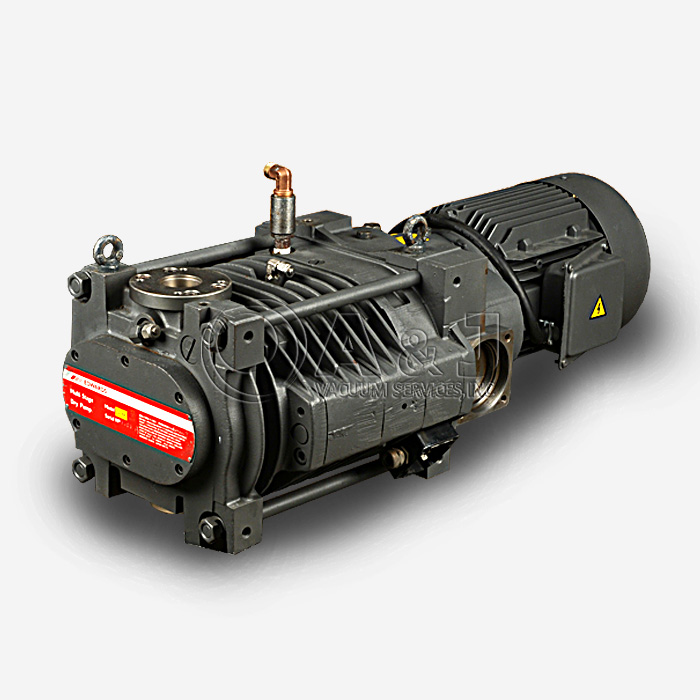

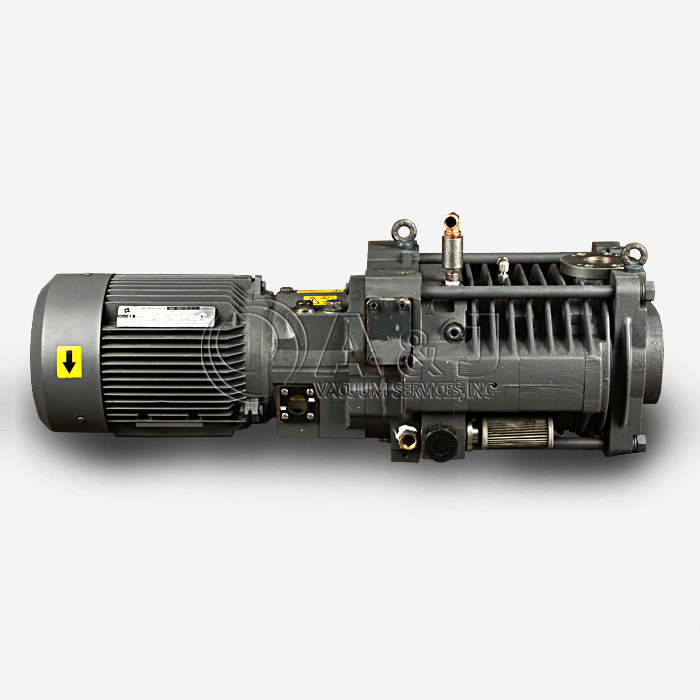

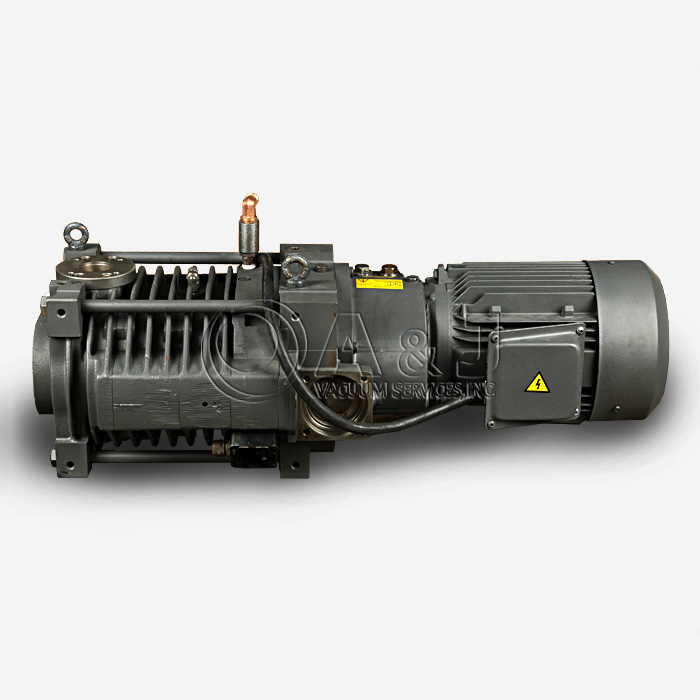

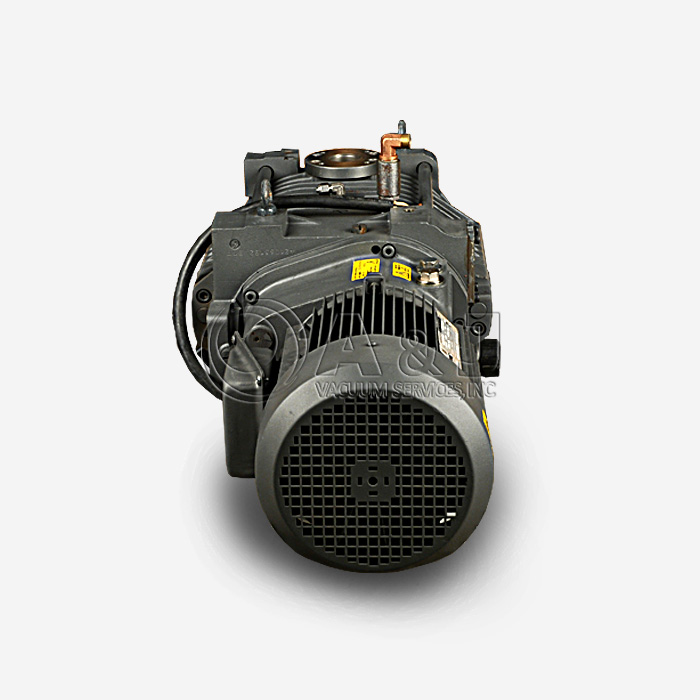

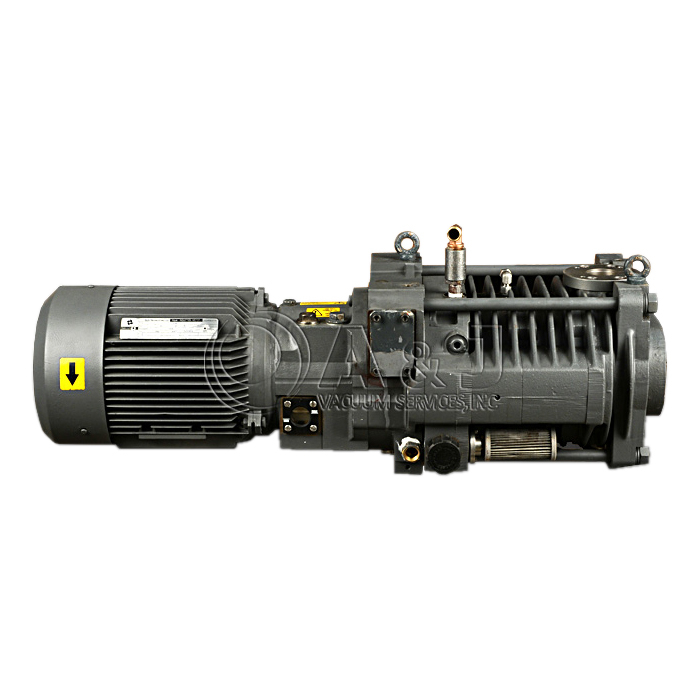

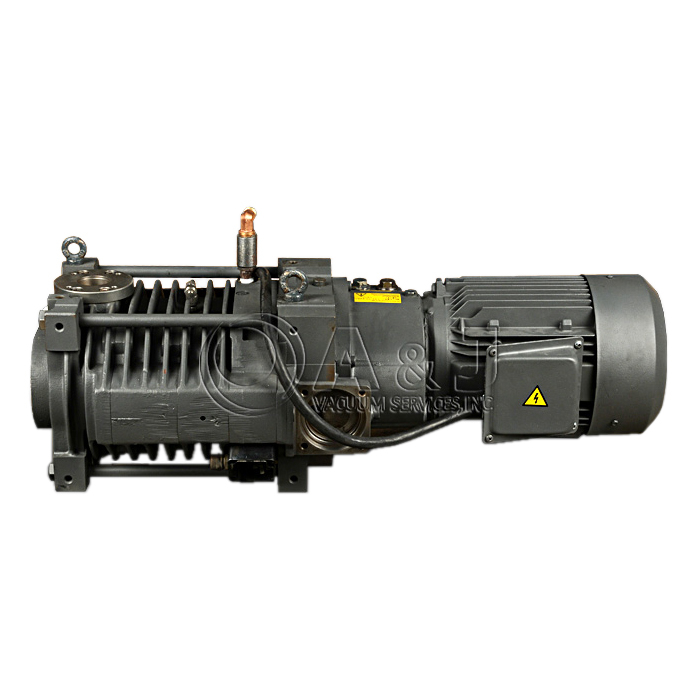

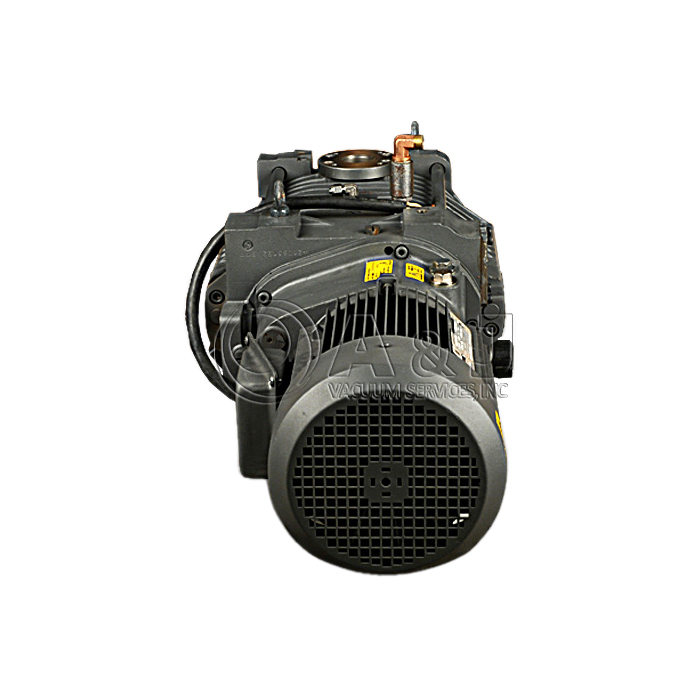

Edwards GV80 Dry Vacuum Pump, 230/460 V, 60 Hz, NR8031000R, GV-80
Edwards GV80 Overview:
The Edwards GV 80 pumps are rugged, reliable dry vacuum pumps designed for general vacuum use.
The Edwards GV80 / NR8031000R pump is a three-stage, positive displacement rotary pump in which pairs of intermeshing rotors (mounted on common shafts) are held in correct phase relation by a pair of timing-gears. The timing-gears and the adjacent double-row angular contact ball-bearings are oil lubricated.
The Edwards GV80 pump has lifting-bolts and is mounted on a robust frame. Fixing holes in the frame can be used to secure the pump frame in its operating position.
The GV80 / pump has a shaft-seals purge system and a gas-ballast system.
You can connect a dry compressed air supply to the shaft-seals purge inlet. The shaft-seals purge pipeline then delivers the dry air purge to the shaft-seals. This dry air purge: ensures that the shaft-seals are maintained at a positive pressure during pump operation; prevents the entry of corrosive or toxic process vapours into the pump gearbox; prevents contamination of the process gases by pump oil; prevents damage to the shaft-seals by debris.
As supplied, the gas-ballast system can deliver ambient air to the pump gas-ballast inlet. The air-flow is filtered and is controlled by a valve. A check-valve in the system prevents the escape of process gases out of the gas-ballast system into the local atmosphere.
If required for your application, you can connect dry nitrogen supplies to the pump, to deliver nitrogen gas-ballast and nitrogen shaft-seals purge instead of air.

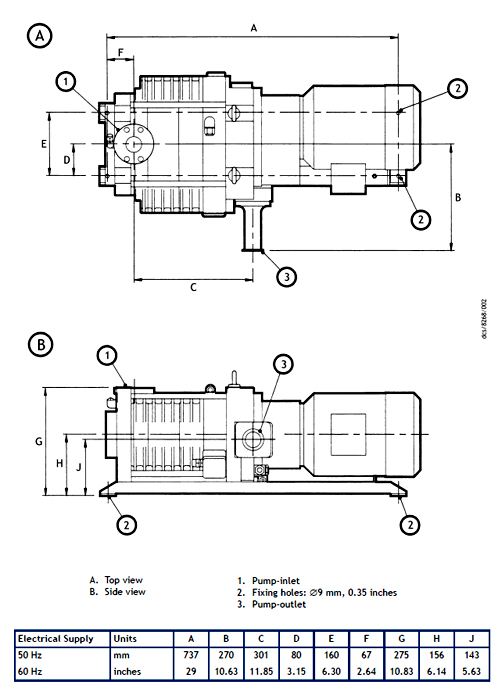

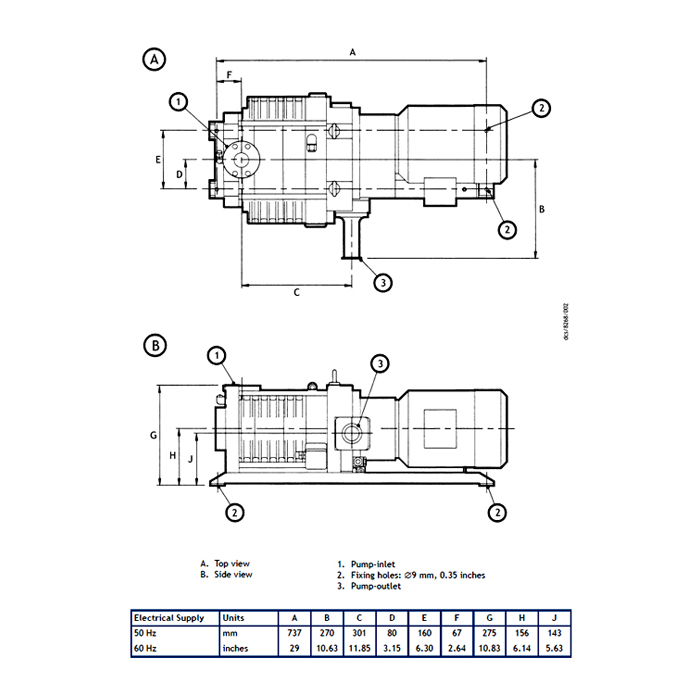

Edwards GV80 Dimensions:
A&J Vacuum also repair / rebuild and service Edwards GV80 / NR8031000R, QDP80, iQDP80 Dry Pumps along with all other Edwards Turbo Pumps and Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards GV80 Dry Vacuum Pump, 230/460 V, 60 Hz, NR8031000R, GV-80
Edwards GV80 Technical Data:
|
Typical Pump Rotation Speed: |
3600 rpm |
|
Inlet Connection: |
ISO 40 |
|
Outlet Connection: |
NW 40 |
|
Maximum Pumping Speed: |
82 m3h-1 |
|
Displacement: |
91.5 m3h-1 |
|
Ultimate Vacuum: |
3 x 10-2 mbar |
Edwards GV80 Dimensions:
A&J Vacuum also repair / rebuild and service Edwards GV80 / NR8031000R, QDP80, iQDP80 Dry Pumps along with all other Edwards Turbo Pumps and Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards_GV80_Dry_Vacuum-Pump_Manual.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Edwards GV80 Dry Vacuum Pump, 230/460 V, 60 Hz, NR8031000R, GV-80
Edwards GV80 Overview:
The Edwards GV 80 pumps are rugged, reliable dry vacuum pumps designed for general vacuum use.
The Edwards GV80 / NR8031000R pump is a three-stage, positive displacement rotary pump in which pairs of intermeshing rotors (mounted on common shafts) are held in correct phase relation by a pair of timing-gears. The timing-gears and the adjacent double-row angular contact ball-bearings are oil lubricated.
The Edwards GV80 pump has lifting-bolts and is mounted on a robust frame. Fixing holes in the frame can be used to secure the pump frame in its operating position.
The GV80 / pump has a shaft-seals purge system and a gas-ballast system.
You can connect a dry compressed air supply to the shaft-seals purge inlet. The shaft-seals purge pipeline then delivers the dry air purge to the shaft-seals. This dry air purge: ensures that the shaft-seals are maintained at a positive pressure during pump operation; prevents the entry of corrosive or toxic process vapours into the pump gearbox; prevents contamination of the process gases by pump oil; prevents damage to the shaft-seals by debris.
As supplied, the gas-ballast system can deliver ambient air to the pump gas-ballast inlet. The air-flow is filtered and is controlled by a valve. A check-valve in the system prevents the escape of process gases out of the gas-ballast system into the local atmosphere.
If required for your application, you can connect dry nitrogen supplies to the pump, to deliver nitrogen gas-ballast and nitrogen shaft-seals purge instead of air.
Edwards GV80 Dimensions:
A&J Vacuum also repair / rebuild and service Edwards GV80 / NR8031000R, QDP80, iQDP80 Dry Pumps along with all other Edwards Turbo Pumps and Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Specifications
Edwards GV80 Dry Vacuum Pump, 230/460 V, 60 Hz, NR8031000R, GV-80
Edwards GV80 Technical Data:
|
Typical Pump Rotation Speed: |
3600 rpm |
|
Inlet Connection: |
ISO 40 |
|
Outlet Connection: |
NW 40 |
|
Maximum Pumping Speed: |
82 m3h-1 |
|
Displacement: |
91.5 m3h-1 |
|
Ultimate Vacuum: |
3 x 10-2 mbar |
Edwards GV80 Dimensions:
A&J Vacuum also repair / rebuild and service Edwards GV80 / NR8031000R, QDP80, iQDP80 Dry Pumps along with all other Edwards Turbo Pumps and Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
