Pfeiffer Okta 250 M Roots Vacuum Pump, 230/400 V, 50 Hz | 265/460 V, 60 Hz, DN 63, PP W22 100 F / PPW22100F
Pfeiffer Okta 250 M Features:
- High-performance Roots Pump (Vacuum Booster) with a pumping speed of 145 to 440 m3/h, and magnetic coupling
- For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
- No thermal overload thanks to integrated overflow valve
- For applications in the low and medium vacuum
- Three phase motor
Okta 250 M / PPW22100F Overview:
Single-stage and multi-stage Roots pumps—also known as rotary lobe pumps, Roots blowers, or booster pumps—are technically dry-running, positive displacement vacuum pumps. In these pumps, the gearbox and bearings are isolated from the suction chamber. The lobes operate without contact, enabling technically dry operation.
Single-stage Roots pumps cannot operate directly against atmospheric pressure. To prevent excessive heating and thermal expansion of the lobes, it is essential to control the pressure differential between the suction and pressure flanges. As a result, these pumps require suitable backing pumps or cooling systems adapted to the pressure conditions. Alternatively, multiple Roots stages can be arranged in series to distribute the pressure difference across the stages.
The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.
Okta250M Scope of Delivery:
- Roots Pump
- Seals for the connection flanges; for ISO flanges, centering rings are included
- Cover disks for the connecting flanges
- Screw kit for the connection flange
- 2 eye bolts for lifting the roots pump
- Lubricant P3 (standard version)
- Motor-side coupling half for roots pumps without motor
- Operating instructions
Okta250M Applications:
- Glass and foil coating
- Plasma etching
- Vacuum metallurgy
- PVD and CVD
- Space simulation
- Vacuum drying / freeze drying
- Steel degassing / secondary metallurgy
- Electron beam welding
A&J Vacuum Services Repairs and Service Pfeiffer OKTA250 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Okta 250 M Roots Vacuum Pump, 230/400 V, 50 Hz | 265/460 V, 60 Hz, DN 63, PP W22 100 F / PPW22100F
Pfeiffer Okta 250 M Technical Data:
- Ambient temperature: 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K
- Connection flange (in): DN 63 ISO-F
- Connection flange (out): DN 63 ISO-F
- Cooling method: Natural convection
- Corrosive gas version: Yes
- Differential pressure: 75 hPa | 56.25 Torr | 75 mbar
- Dimensions (L x W x H): 799 x 323 x 280 mm | 31.46 x 12.72 x 11.02 inch
- Emission sound pressure level (EN ISO 2151) at intake pressure 1 hPa: 70 dB(A)
- Input voltage(s): 230 / 400 V AC, 50 Hz | 265 / 460 V AC (±5 %), 60 Hz
- Magnetic coupling: Yes
- Mains frequency compatibility: 50 Hz | 60 Hz
- Motor coupling: Magnet coupling
- Motor for region: Asia | Europe
- Motor protection: 3TF
- Motor seal: Hermetic sealing:
- Motor type: 3-phase motor

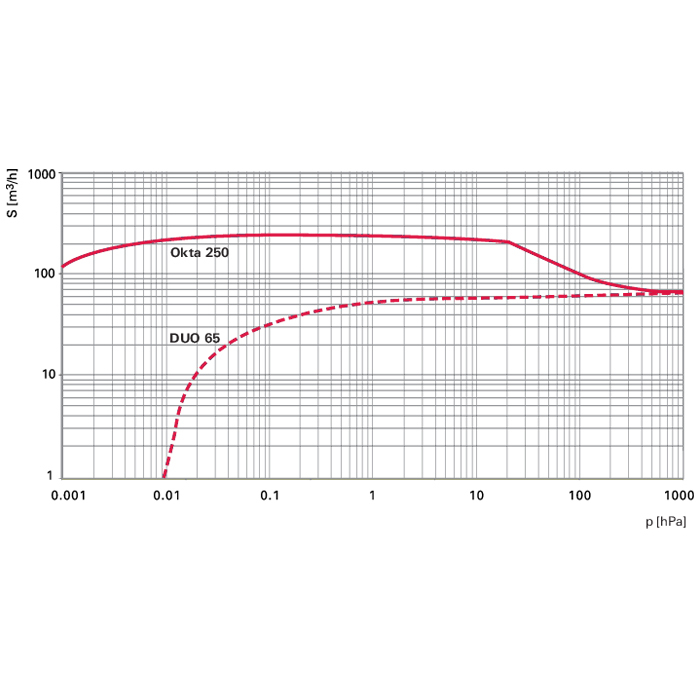

- Nominal pumping speed: 145 – 440 m³/h | 85.35 – 258.98 cfm | 2,416.67 – 7,333.35 l/min
- Nominal pumping speed at 50 Hz: 290 m³/h | 170.69 cfm | 4,833.34 l/min
- Nominal pumping speed at 60 Hz: 350 m³/h | 206.01 cfm | 5,833.34 l/min
- Nominal rotation speed at 50 Hz: 3000 rpm | 3,000 min-1
- Nominal rotation speed at 60 Hz: 3600 rpm | 3,600 min-1
- Operating fluid: F5
- Operation fluid amount: 1.5 l
- Protection degree: IP55
- Pumping principle: Dry
- Rated power 50 Hz: 0.75 kW
- Rated power 60 Hz: 0.9 kW
- Rotation speed: 1500 – 4500 rpm | 1,500 – 4,500 min-1
- Sealing gas: Yes
- Version: Standard with motor and magnetic coupling
- Weight approx.: 122 kg | 268.96 lb
A&J Vacuum Services Repairs and Service Pfeiffer OKTA250 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Okta 250 M Roots Vacuum Pump Data Sheet PPW22100F
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
