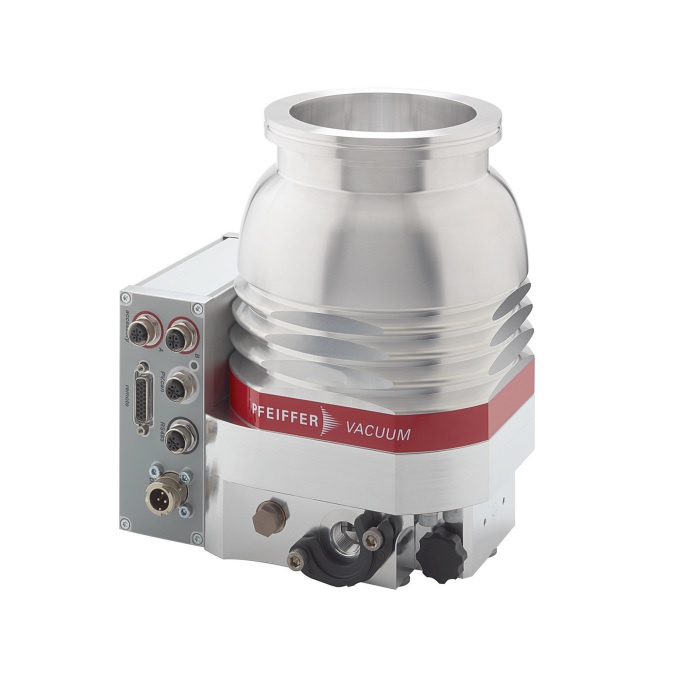

Pfeiffer Vacuum HiPace 350 Turbo Pump with TC400 / 24 VDC Turbo Pump Controller, DN 100 ISO-K, 2000013577 / PM P070 401 40 / PMP07040140
Pfeiffer HiPace 350 Features:
- Rugged, powerful turbopump with a pumping speed of up to 350 l/s for H2
- Integrated TC 400 drive electronics
- Inlet Flange: DN 100 ISO-K
- Ideal for analytical and industrial applications
- For installation in any orientation
- With integrated water cooling for maximum gas throughput
- Flexible through the ability to employ up to 4 accessories
- Ideal for fast cycles
- Extensive accessories expand the range of applications
HiPace 350 / PMP07040140 Overview:
Hipace 350 Turbo Pump is ideal for light gasses.
The Pfeiffer HiPace 350 Turbo Pump PMP07040140, DN 100 ISO-K comes factory equipped with Pfeiffer 24 VDC TC 400 Turbo Pump Drive Controler.
Hipace 350 Turbomolecular pump have a pumping speed of 350 l/sec for He at the speed of 66000 rpm. This Hipace 350 can be installed in any mounting orientation.
Operating Voltage of 24 VDC and Maximum Power of 300 Watts. The Hipace 350 turbo pump comes with DN 100 ISO-K Inlet flange and KF-16 Exhaust forline connection flange.
Pfeiffer Hipace 350 turbo pump feature the latest technology rotor design in its class. Hipace 350 pump rotors are laser balanced to ensure the best operation characteristics and to minimize operational vibrations to the minimum.
Pfeiffer Hipace 350 pump is designed to be air or water cooled with optional water cooling kit P/N PM 016 623 -T or Air Cooling Kit P/N PM Z01 374.
The Pfeiffer Hipace 350 Turbo Vacuum Pump's proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The turbopump HiPace 350 forms a complete unit together with the electronic 24 VDC drive unit TC 400. This turbopump offers water as well as air cooling. This pump has not integrated power supply.
Complete Operating Instruction for HiPace 350 PM P070 401 40 / PMP07040140 is available in PDF format below.
HiPace350 Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Operating instructions
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 350 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum HiPace 350 Turbo Pump with TC400 / 24 VDC Turbo Pump Controller, DN 100 ISO-K, 2000013577 / PM P070 401 40 / PMP07040140
Pfeiffer HiPace 350 Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 2 · 106 |
| Compression ratio for He | > 1 · 108 |
| Compression ratio for N2 | > 1 · 1011 |
| Connection flange | DN 100 ISO-K / DN 16 ISO-KF | G 3/8" Thread |
| Connection flange (in) | DN 100 ISO-K |
| Connection flange (out) | DN 16 ISO-KF | G 3/8" |
| Cooling method | Natural convection |
| Cooling method, optional | Water Air (forced convection) |
| Cooling water flow | 100 l/h |
| Cooling water temperature | 15 – 25 °C | 59 – 77 °F | 288.15 – 298.15 K |
| Current, max. | 12.5 A |
| Electronic drive unit | TC 400 |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum max. for N2 | 10 hPa | 7.5 Torr | 10 mbar |
| Gas throughput at full rotational speed for Ar | 0.7 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 11 hPa·l/s |
| Gas throughput at full rotational speed for He | 7 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 2 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Input voltage(s) | 24 V DC (±10 %) |
| Integral leak rate | 1 · 10-7 hPa·l/s |
| Mounting orientation | Arbitrary |
| Permissible axial magnetic field max. | 20 mT |
| Permissible radial magnetic field max. | 4.5 mT |
| Position of power supply pack | External power supply pack |
| Power consumption max. | 300 W |
| Protection degree | IP54 Type 12 |
| Pumping principle | Dry |
| Pumping speed | 972 – 1260 m³/h | 572.12 – 741.64 cfm | 16,200.03 – 21,000.04 l/min |
| Pumping speed for Ar | 270 l/s |
| Pumping speed for H2 | 300 l/s |
| Pumping speed for He | 350 l/s |
| Pumping speed for N2 | 300 l/s |
| Rotation speed variable | 60 – 100 % |
| Rotation speed ±2 % | 66000 rpm | 66,000 min-1 |
| Run-up time | 4 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 7.8 kg | 17.2 lb |
