Pfeiffer Vacuum TPG 361 / Single Gauge , (1) TPR 270, PT446007-T, Pressure Measurement System
Item#: PN20775 Mfr Part#: PT446007-T Manufacturer: Pfeiffer Vacuum
Condition:
Discontinued
Discontinued Pfeiffer Vacuum TPG 361 , (1) TPR 270, PT446007-T,

Features:
  • TPG 361
  • TPR 270

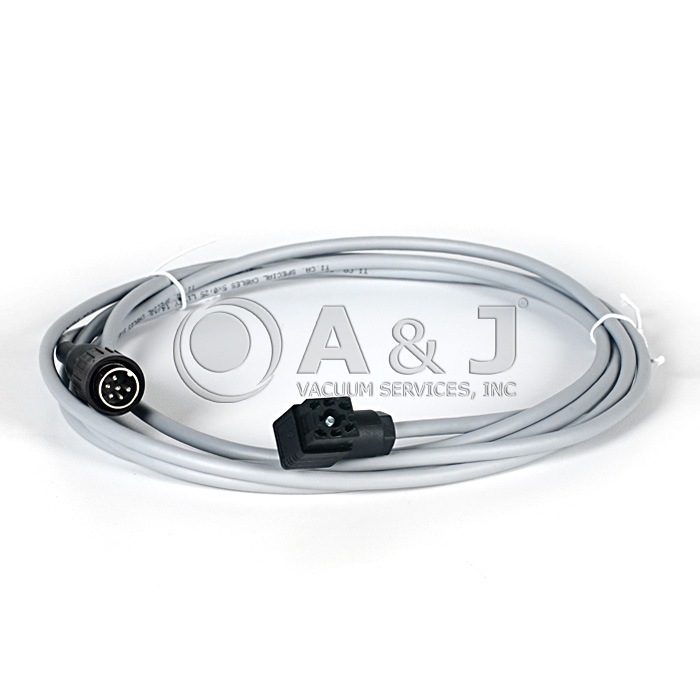

  • Cable 3m

This product has been discontinued and is no longer available for sale
Item#: PN20775 Mfr Part#: PT446007-T
Pfeiffer Vacuum TPG 361 / Single Gauge , (1) TPR 270, PT446007-T, Pressure Measurement System
Item#: PN20775 Mfr Part#: PT446007-T Manufacturer: Pfeiffer Vacuum 12 months warranty

Pfeiffer Vacuum TPG 361 , (1) TPR 270, PT446007-T,



Included:

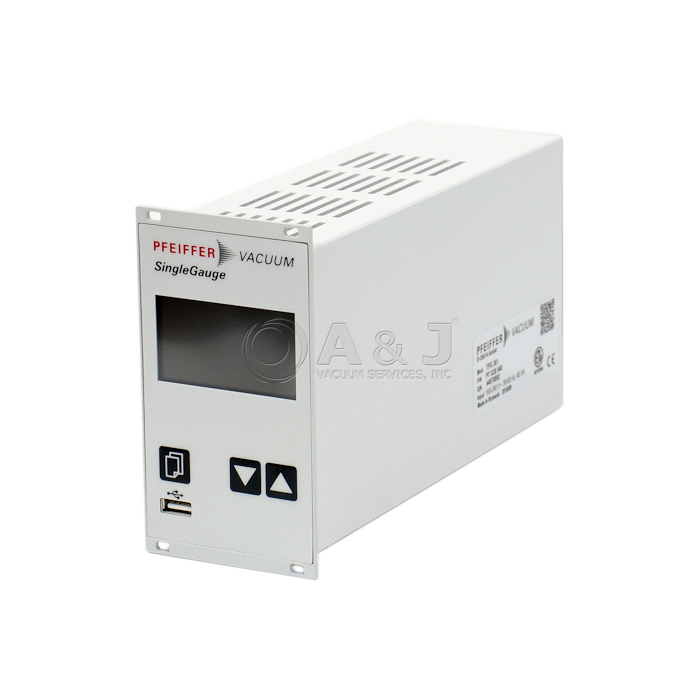

  • SingleGauge measurement unit TPG 361 / PTG28040

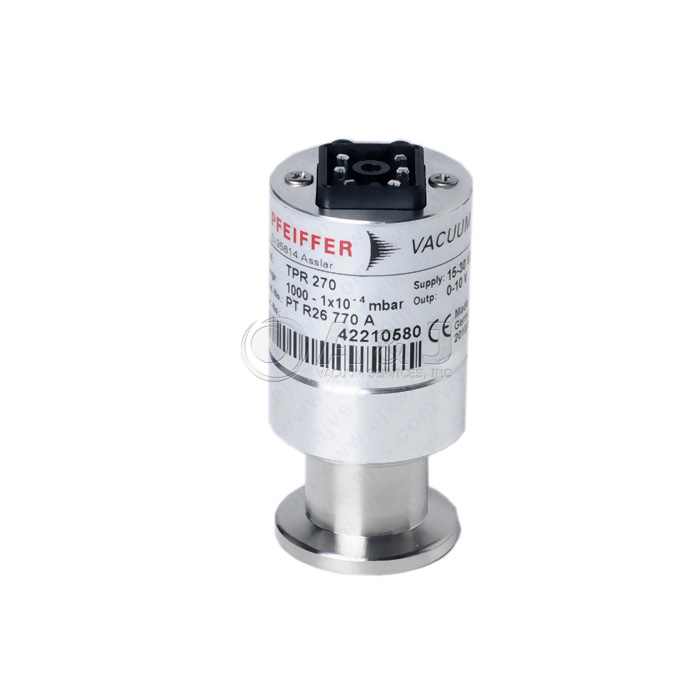

  • Active Pirani transmitter TPR 270 / PTR26770B
  • Cable Length: 3 m

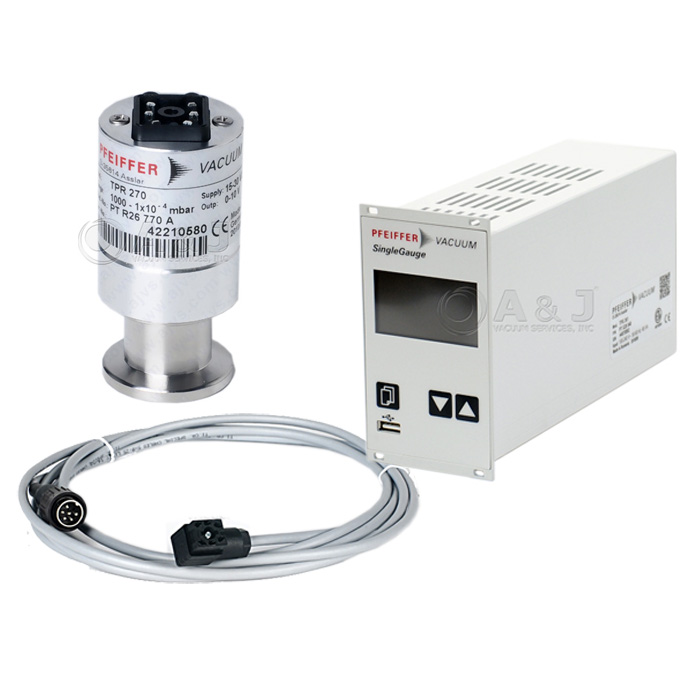

Pressure Measuring System, TPG 361 (PTG28040) Single Gauge controller combined with one (1) TPR 270 (PTR26770B, KF 16) compact pirani gauge and 3 meter cable for measurement from 1000 to 5x10-4 mbar with 1 relay, 90-250V, 50-60 Hz.



Power cable inlcuded.



*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

Pfeiffer Vacuum TPG 361 , (1) TPR 270, PT446007-T,



Technical Data TPG 361:


Ambient Temperature 5-50 °C | 41-122 °F | 278-323 K
Connection for Gauge 1
Display Rate ≥ 10 Hz
Error Signal: Working Contact, Potential-Free 1 Pcs.
Filter Time Constant, Rapid/Normal/Slow 0.02 s/0.15 s/0.75 s
I/O Interfaces USB, RS-485, Ethernet
Mains Requirement: Frequency (Range) 50/60 Hz
Mains Requirement: Power Consumption 45 VA
Mains Requirement: Voltage (Range) 100–240 V
Measurement Range 5 * 10^[-11] – 5.5 * 10^4 hPa
Measurement Rate ≥ 100 Hz
Measuring Channel 1 Pcs.
Power Consumption Max. 45 VA
Protection Category IP20
Safety CE, UL
Set Point: Changeover Contact, Potential-Free 5 Pcs.
Set Point: Current AC 1 A
Set Point: Current DC 0.5 A
Set Point: Voltage AC 30 V AC
Set Point: Voltage DC 60 V DC
Set Point Number 2 Pcs.
Signal Output: Measuring Value, Analog 0 – 10 V
Temperature: Storage -20-60 °C | -4-140 °F | 253-333 K
Weight 1.1 kg | 2.43 lb



Technical Data TPR 270:


Accuracy: 10^(-3) to 102 mbar ± 15 %
Bakeout Temperature 80°C
Added Features Stainless Steel, Metal-Sealed
Feedthrough Glass
Filament Tungsten
Flange (Material) Stainless Steel
Flange Model (In) DN 16 ISO-KF
Measurement Range Max. 1000 mbar
Measurement Range Min. 5 * 10^(-4) mbar
Output Signal: Minimum Load 10 kΩ
Output Signal: Pressure Range 2.2 - 8.5 V
Output Signal: Sensor Error Below 0.5 V
Pressure (Maximum) 10 Bar
Protection Category IP 40
Repeatability: 10^(-3) to 102 mbar ± 2 %
Resolution 1 % of reading
Response Time 80 ms
Seal (Material) Metal
Sensor Cable Length Max. 200 m
Supply: Power Consumption Max. 1 W
Supply: Voltage 14-30 V DC
Operating Temperature 5-60 °C
Storage Temperature -20- °C
Volume 1.5 cm^3
Weight 80 g
