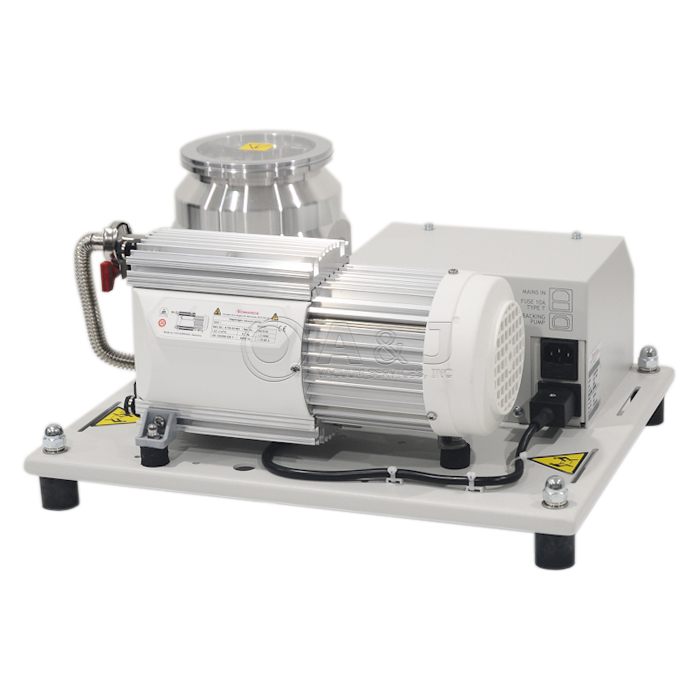

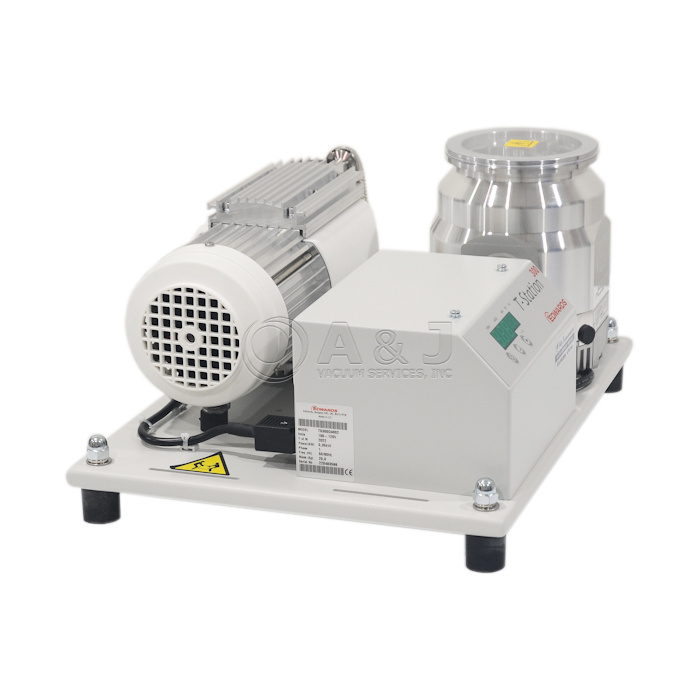

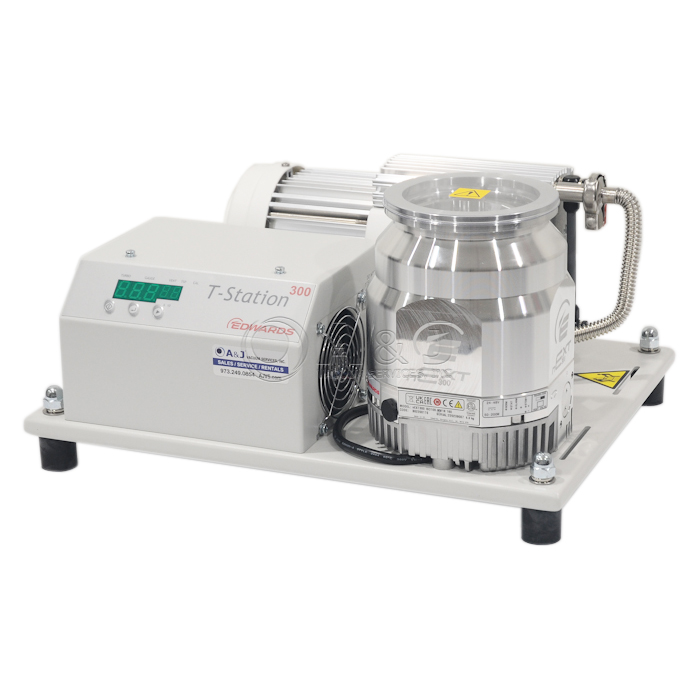

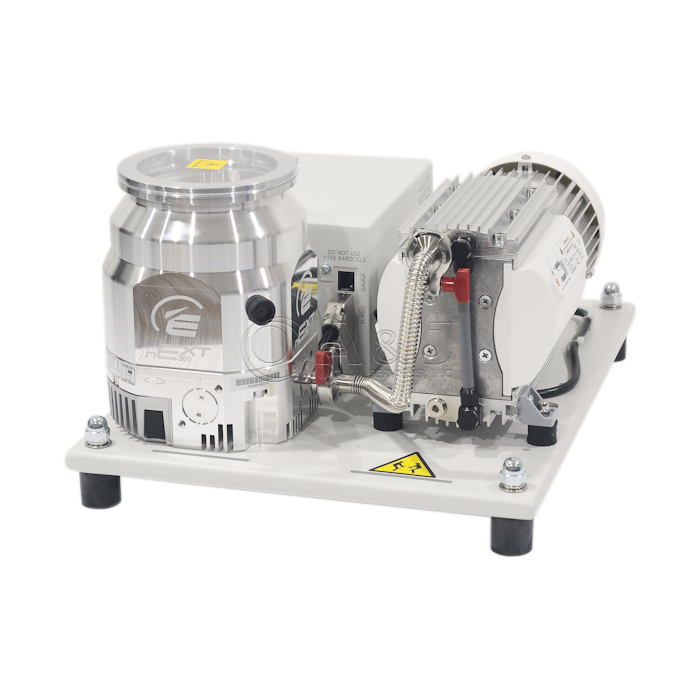

Edwards Turbo Station T300 T-Station Dry Turbo Pumping T Station, Includes nEXT 300DX Turbo Pump (DN 100-ISO-K), XDD1 Backing Pump, 100-120V, TS300D4002
Edwards T-Station T300 Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with nEXT 300 DX Turbo Pump
- DN 100 ISO-K
- Integrated Control Unit
- 115 V AC, 50/60 Hz
T-Station T300 / TS300D4002 Overview:
Edwards’ T-Station vacuum pumping systems offer a comprehensive solution designed to deliver advanced, plug-and-play vacuum technology for applications where ease of use and flexibility are essential. The T-Station range has evolved to include a broader selection of both backing and turbomolecular pump configurations, enhancing its suitability for a wide range of applications and improving overall performance. Each turbomolecular pumping station is delivered fully assembled and ready for immediate operation, providing a true turnkey solution. The range consists of two main models—the entry-level T-Station 85 and the higher-capacity T-Station 300—each available in multiple variants.
The latest generation of T-Stations now features Edwards’ compact mXDS3s scroll pump, delivering optimal performance with improved energy efficiency.
Connecting Vacuum Gauge to the T-Station:
A single compatible active gauge can be fitter to the pumping system.
The following are Edwards active gauges which are suitable for use with this T-Station:
- APG100 Active pirani vacuum guage
- APGX-H Active linear convection gauge
- AIM-X Active inverted magnetron gauge
- ASG Active strain gauge
- WRG Wide range gauge
Edwards T300 Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum repair / rebuild and service all Edwards T-300 Vacuum Systems, nXDS Turbo Pump Service, Edwards Pump Repair, Edwards Booster Pumps, Edwards Vacuum Pumps, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Edwards XDD1 Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards Turbo Station T300 T-Station Dry Turbo Pumping T Station, Includes nEXT 300DX Turbo Pump (DN 100-ISO-K), XDD1 Backing Pump, 100-120V, TS300D4002
Edwards T-Station T300 Technical Data:
| Connection Inlet Flange | DN 100 ISO-K |
| Weight | 21 kg | 46 lb |
| Connection Outlet Flange | Fitted silencer 1/8" BSPP (or G 1/8") Female |
| Leak Rate | 1.000 × 10⁵ Pa·m³/s |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 100-120V 50/60Hz |
| IP Rating | IP20 |
| Power Supply Frequency | 50 Hz 60 Hz |
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Noise / Sound Level | 56.00 db(A) |
| Temperature Ambient Operation Max | 40.00 °C | 104.00 °F | 313.15 K |
| Temperature Ambient Operation Min | 5.00 °C | 41.00 °F | 278.15 K |
| Pressure Ultimate | 6.000 × 10⁻⁸ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.300 m³/s |
| Power at Atmosphere Short Term Max | 350 W |
| Compression Ratio Helium | 1.000 × 10⁶ |
| Compression Ratio Hydrogen | 50000.00 |
| Pumping Speed Helium | 0.340 m³/s |
| Pumping Speed Hydrogen | 0.280 m³/s |
| Compression Ratio Argon | 1.000 × 10¹¹ |
| Classification Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| Classification High / Medium / Rough Vacuum pump | High Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Pumping Station - Turbomolecular Pump |
| Variant of Backing Pump | XDD1 |
| Variant TMP | H H - High Compression |
A&J Vacuum repair / rebuild and service all Edwards T-300 Vacuum Systems, nXDS Turbo Pump Service, Edwards Pump Repair, Edwards Booster Pumps, Edwards Vacuum Pumps, along with all other Edwards Turbo Pumping Stations, Edwards Turbo Pump Repair, Edwards XDD1 Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards XDD1 A74602983_A74602991 Operating Instructions Dry Diaphragm Pump
Edwards nEXT240 nEXT300 nEXT400 Manual.pdf
Edwards T-Station 300 Operation Manual
Edwards nEXT240, nEXT300, nEXT400 Operation Manual
|
