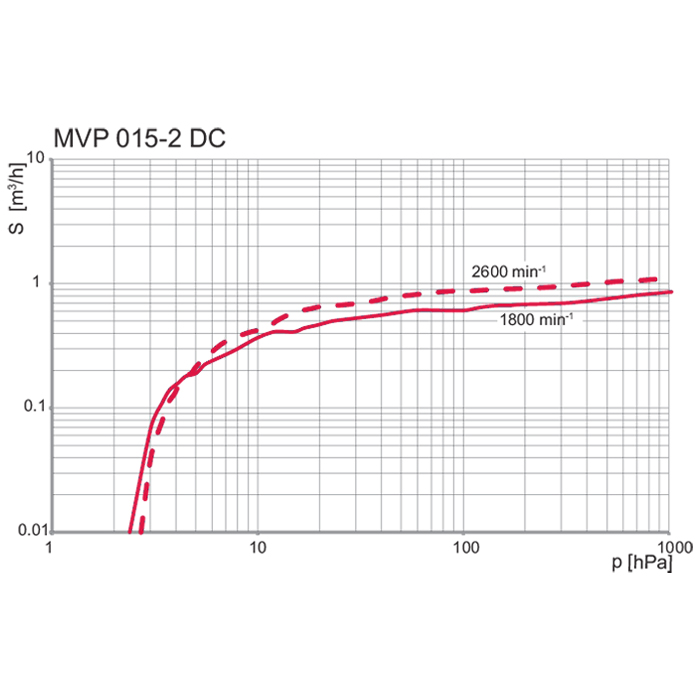

- Pumping Speed: 1 m³/h | 0.59 cfm | 16.67 l/min
- Ultimate Pressure with Gas Ballast: 7 hPa | 5.25 Torr | 7 mbar
- Rotation Speed: 750 – 2600 rpm | 750 – 2,600 min-1
- G 1/8" Connection Flange

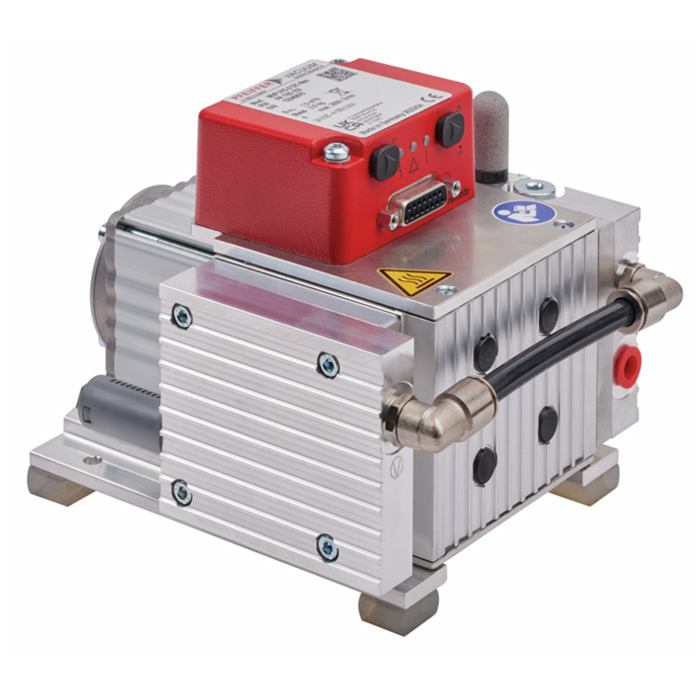

Pfeiffer Vacuum MVP 015-2 DC Neo Diaphragm Vacuum Pump, 24 V DC, G 1/8", 1 m³/h, 2000020772 / PK T05 153 / PKT05153
Pfeiffer MVP 015-2 DC Features:
- Pumping speed of up to 1.0 m3/h
- Dry and oil-free
- Low noise level
- Compatible with other intelligent products such as turbopumps via RS-485
MVP 015-2 DC / PKT05153 Overview:
Pfeiffer MVP 15 Diaphragm Vacuum Pump is a two stage, dry compressor vacuum pump.
Pfeiffer MVP015 2 DC diaphragm pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
- The intake side on the front side of the pump is provided with a swivelling screw fitting (G1/8) and screw (G1/4) for connection to a Pfeiffer Vacuum turbopump.
- A pressure connection (silencer G1/8) on the front side of the pump.
- Mains connection via cold unit socket with safety strap (mains cable not included in the standard version delivery consignment).
- ON/OFF mains switch.
This pump is a direct replacement to PK T05 150 A.
MVP015-2DC Scope of Delivery:
- Vacuum pump with integrated electronic drive unit
- Silencer
- Operating instructions
- Blind plug on the vacuum connection
MVP015-2DC Applications:
- Mass spectrometry
- Laboratories
- Coating
- Vacuum filtration
- Vacuum distillation
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP Series Dry Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum MVP 015-2 DC Neo Diaphragm Vacuum Pump, 24 V DC, G 1/8", 1 m³/h, 2000020772 / PK T05 153 / PKT05153
Pfeiffer MVP 015-2 DC Technical Data:
| Number of pumping stages | Two stage |
| Connection flange (in) | G 1/8" |
| Connection flange (out) | 1/8" thread with silencer |
| Pumping speed | 1 m³/h |
| Gas ballast | Yes |
| Final pressure with gas ballast | 7 hPa |
| Final pressure | 3.5 hPa |
| Gas ballast pressure | 1100 hPa |
| Intake pressure max. | 1100 hPa |
| Integral leak rate | 5 · 10-4 Pa m³/s |
| I/O interfaces | RS485 |
| Input voltage(s) | 24 V DC (±10 %) |
| Rated current consumption | 2.9 A |
| Current, max. | 4.6 A |
| Short circuit current of voltage source, max | 45 A |
| Nominal rotation speed | 1800 rpm |
| Rotation speed | 750 – 2600 rpm |
| Cooling method | Natural convection |
| Operating altitude, max. | 2000 m |
| Protection degree | IP20 |
| Ambient temperature | 5 – 40 °C |
| Temperature: Storage | 5 – 40 °C |
| Temperature: Shipping | -10 – 60 °C |
| Sound pressure level | 49 dB(A) |
| Switch | No |
| Mains cable included | No |
| Weight | 2.7 kg | 5.95 lb |
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum MVP Series Dry Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
