- Peak Pumping Speed: 290 m3/h
- Inlet Flange: NPT 2.00"
- Outlet Flange: NPT 2.00"
- Ultimate Pressure: 1 x 10-3 Torr.

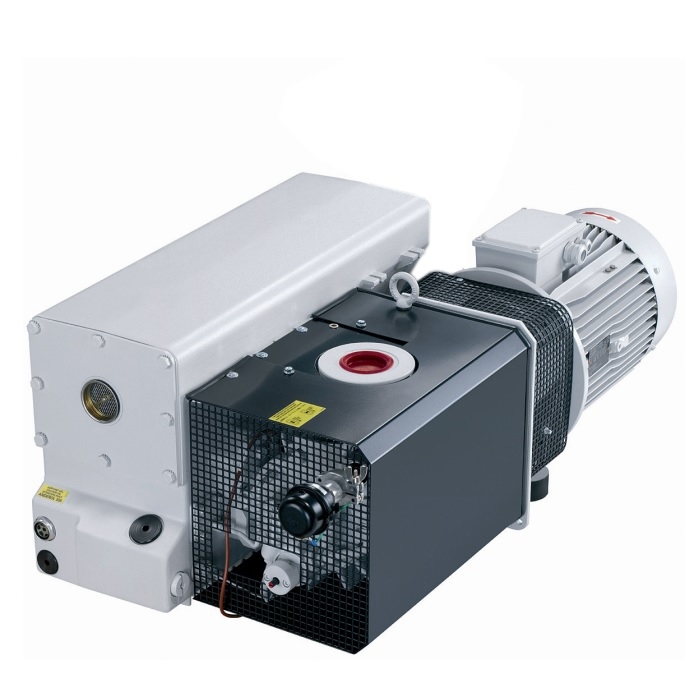

Fully Rebuilt Leybold / Oerlikon SV300 (SV 300) Single Stage Rotary Vane Pump with NPT 2" Inlet Flange and NPT 2" Outlet Flange, 220/230/440/460 V 60Hz, 400 V 50 Hz, 950331

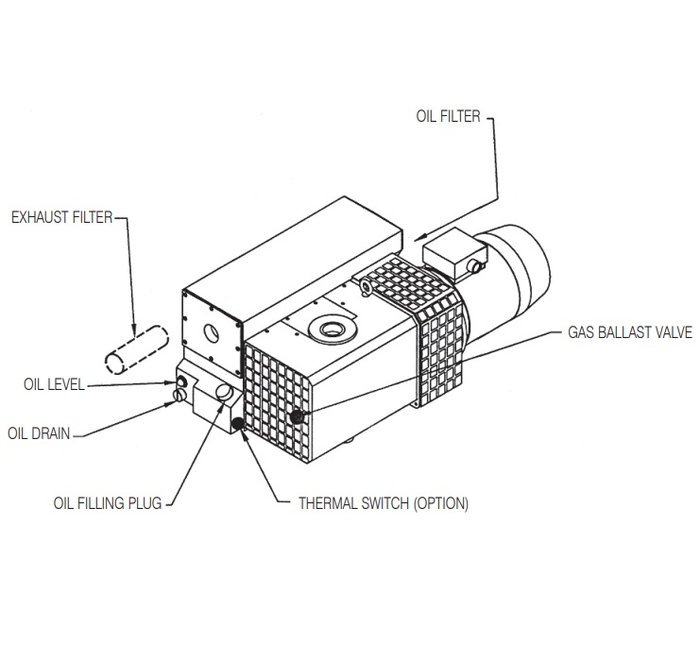

SV300 / 95031 Overview:
Fully refurbished Leybold / Oerlikon SV 300 Single Stage Rotary Vane Pump coupled with a NPT 2" Inlet Flange and NPT 2" Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 200 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon SV300 Pump comes with an entire 12-Month Warranty.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
SV300 Applications:
- Gas analyzers
- Leak detection
- Mass spectrometers
- Other spectrometers
- Electron microscopes
- Surface analyzers
- Centrifuges
- Sterilization
- Electron tubes
- Lamps
- TV tubes (CRT)
- Refrigeration
- Air conditioning
- Drying
- Distillation
- Metallurgy
- Free drying
- CVD.LPCVD
- Ion implantation
- Dry etching
- Load-lock
- Cryogenics
- Gas recovery
- Oxygen pumping
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SV 100 vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Fully Rebuilt Leybold / Oerlikon SV300 (SV 300) Single Stage Rotary Vane Pump with NPT 2" Inlet Flange and NPT 2" Outlet Flange, 220/230/440/460 V 60Hz, 400 V 50 Hz, 950331

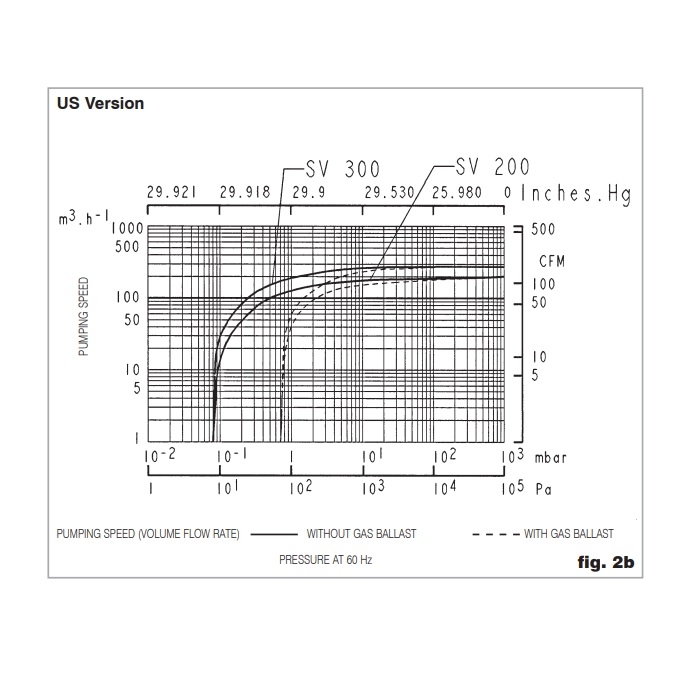

Leybold SV300 Technical Data:
| Nominal speed (50Hz | 60Hz) | 280 m3/h | 340 m3/h |
| Pumping speed (50Hz | 60Hz) | 240 m3/h | 290 m3/h |
| Ultimate partial pressure without gas ballast (50Hz | 60Hz) | ≤ 8 x 10-2 mbar | ≤ 8 x 10-2 mbar |
| Ultimate total pressure with gas ballast standard (50Hz | 60Hz) | ≤ 0.7 mbar | ≤ 0.7 mbar |
| Water vapor tolerance (50Hz | 60Hz) | With gas ballast standard or EM - 30.0 mbar With big gas ballast - ≤ 60.0 mbar |
With gas ballast standard or EM - 40.0 mbar With big gas ballast - ≤ 70.0 mbar |
| Water vapor tolerable load (50Hz | 60Hz) | With gas ballast or EM - 5.4 kg/h With big gas ballast - 10 kg/h |
With gas ballast or EM - 7.4 kg/h With big gas ballast - 12.5 kg/h |
| Noise level (50Hz | 60Hz) | 70 dB(A) | 74 dB(A) |
|
Leak rate (50Hz | 60Hz) |
≤ 1 x 10-3 mbar | ≤ 1 x 10-3 mbar |
| Mains voltage Standard (50Hz | 60Hz) | 230 / 400V | 460V |
| Motor power (50Hz | 60Hz) | 5.5 kW | 6.3 kW |
| Type of protection (50Hz | 60Hz) | IP 55 | IP 55 |
| Rated rotational speed (50Hz | 60Hz) | 1450 min-1 | 1750 min-1 |
| Oil capacity min./max. (50Hz | 60Hz) | 8.5/11.5 l | 8.5/11.5 l |
| Intake connection (50Hz | 60Hz) | G2 | G2 NPT 2 |
| Exhaust connection (50Hz | 60Hz) | G2 | G2 NPT 2 |
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SV 100 vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
