- Peak Pumping Speed: 141 at 50 Hz
- Inlet Flange: NPT 2.00"
- Outlet Flange: NPT 2.00"
- Ultimate Pressure: ≤ 6.0 x 10-2 Torr

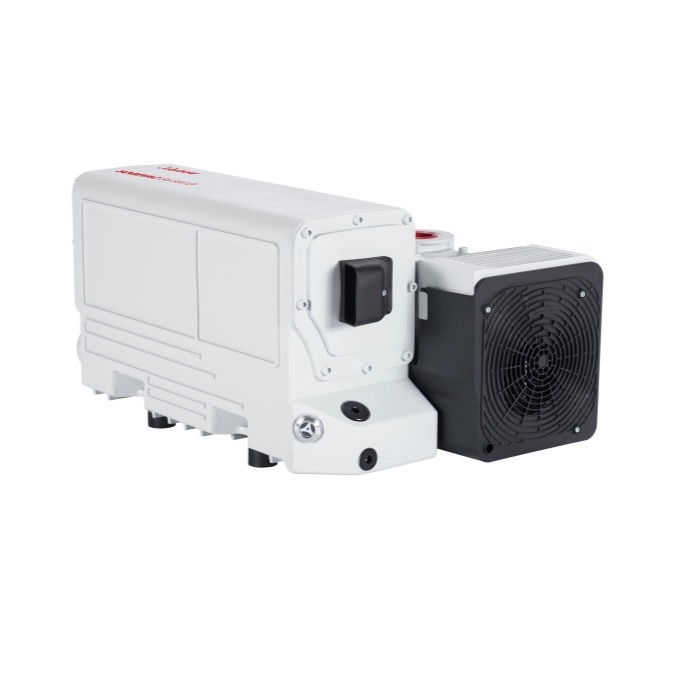

Leybold SOGEVAC SV 300 B Single Stage Vacuum Pump 2" NPT Inlet Connection, 230/460 V 60Hz, 400 V 50 Hz, 960707
Leybold SOGEVAC SV 300 B Features:
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- Simplified maintenance
SOGEVAC SV 300 B / 960707 Overview:
New Leybold / Oerlikon SV 300 B Single Stage Rotary Vane Pump coupled with a NPT 2" Inlet Flange and NPT 2" Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 200 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon SV300B Pump comes with an entire 12-Month Warranty.
Oil sealed rotary vane vacuum pumps are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. SOGEVAC are used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots vacuum pumps or high vacuum pumps. The SOGEVAC pumps excel with low noise levels and smooth operation.
SOGEVAC pumps are oil sealed rotary vane pumps. Oil injected into the pump chamber for sealing, lubrication and cooling of the pump is recycled from the pump’s oil reservoir and filtered, if required, before it is injected. The lubricant system is rated for continuous operation at high intake pressures (max. 1000 mbar abs.) so that the pumps may be used in a versatile manner in most rough vacuum applications.
SOGEVAC SV300B Applications:
- Automotive Industry
- Food Industry
- Heat Treatment
- Vacuum Coating
- Metallurgy
- Power engineering
- Space simulation
- Medical technology
- Composites and resin degassing
- Vacuum drying
- Central vacuum systems
A&J Vacuum Service / rebuild and repair all Leybold SOGEVAC vacuum pumps. We service all versions of SV 100 vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold SOGEVAC SV 300 B Single Stage Vacuum Pump 2" NPT Inlet Connection, 230/460 V 60Hz, 400 V 50 Hz, 960707
Leybold SOGEVAC SV 300 B Technical Data:
| Inlet connection | NPT 2" Inside thread |
| Outlet connection | NPT 2" Inside thread |
| Nominal pumping speed at 50 Hz | 280 m3/h | 165 cfm |
| Nominal pumping speed at 60 Hz | 340 m3/h | 200 cfm |
| Pumping speed at 50 Hz | 240 m3/h | 141 cfm |
| Pumping speed at 60 Hz | 290 m3/h | 171 cfm |
| Ultimate partial pressure without gas ballast | ≤ 8.0 x 10-2 mbar | ≤ 6.0 x 10-2 Torr |
| Ultimate total pressure without gas ballast | ≤ 8.0 x 10-2 mbar | ≤ 6.0 x 10-2 Torr |
|
Ultimate total pressure with small gas ballast valve |
≤ 0.5 mbar | ≤ 0.4 Torr |
| Ultimate total pressure with standard gas ballast valve | ≤ 0.7 mbar | ≤ 0.5 Torr |
| Ultimate total pressure with big gas ballast valve | ≤ 2.0 mbar | ≤ 1.5 Torr |
| Ultimate total pressure with 2 big gas ballast valves | ≤ 3.0 mbar | ≤ 2.3 Torr |
| Water vapor tolerance at 50 Hz with small gas ballast valve | 4.0 mbar | 3.0 Torr |
| Water vapor tolerance at 50 Hz with standard gas ballast valve |
40.0 mbar | 30.0 Torr |
| Water vapor tolerance at 50 Hz with big gas ballast valve | 70.0 mbar | 52.5 Torr |
| Water vapor tolerance at 50 Hz with 2 big gas ballast valves | 95.0 mbar | 71.3 Torr |
| Water vapor tolerance at 60 Hz with small gas ballast valve | 5.0 mbar | 3.8 Torr |
| Water vapor tolerance at 60 Hz with standard gas ballast valve | 50.0 mbar | 38.0 Torr |
| Water vapor tolerance at 60 Hz with big gas ballast valve | 70.0 mbar | 52.5 Torr |
| Water vapor tolerance at 60 Hz with 2 big gas ballast valves | 95.0 mbar | 71.3 Torr |
| Water vapor capacity at 50 Hz with small gas ballast valve | 0.4 kg/h |
| Water vapor capacity at 50 Hz with standard gas ballast valve | 6.0 kg/h |
| Water vapor capacity at 50 Hz with big gas ballast valve | 11.0 kg/h |
| Water vapor capacity at 50 Hz with 2 big gas ballast valves | 15.0 kg/h |
| Water vapor capacity at 60 Hz with small gas ballast valve | 0.6 kg/h |
| Water vapor capacity at 60 Hz with standard gas ballast valve | 8.0 kg/h |
| Water vapor capacity at 60 Hz with big gas ballast valve | 14.0 kg/h |
| Water vapor capacity at 60 Hz with 2 big gas ballast valves | 17.0 kg/h |
| Operating fluid | LVO 130 |
| Operating fluid capacity (min.) | 8.5 l | 9.0 qt |
| Operating fluid capacity (max.) | 11.5 l | 12.2 qt |
| Noise level to DIN 45 635 without GB | 70 - 74 dB(A) |
| Mains connection |
3-ph, 208 V, ±10% // 230/460 V, ±10%, 60 Hz 3-ph, 400 V, ±10%, 50 Hz |
| Motor rating at 50 Hz |
7.5 kW 10.0 HP |
| Motor rating at 60 Hz |
7.5 kW 10.0 HP |
| Rotation speed at 50 Hz | 1.500 min-1 | 1.500 rpm |
| Rotation speed at 60 Hz | 1.800 min-1 | 1.800 rpm |
| Motor protection rating | IP 55-F / TEFC |
| Admissible ambient temperature |
+12 to +40 °C +54 to +104 °F |
| Weight | 223 kg | 492 lb |
A&J Vacuum Service / rebuild and repair all Leybold SOGEVAC vacuum pumps. We service all versions of SV 100 vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
