Leybold D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex
Item#: PN23298 Mfr Part#: 140092 Manufacturer: Leybold
Condition:
New
New Leybold D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 18.9 m3/h, 140092, D16B Ex

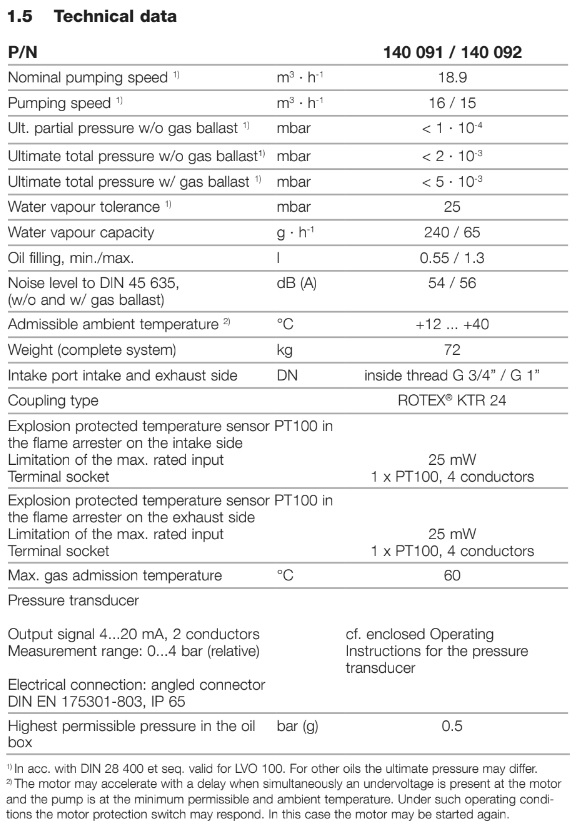

Features:
  • Displacement: 11 cfm

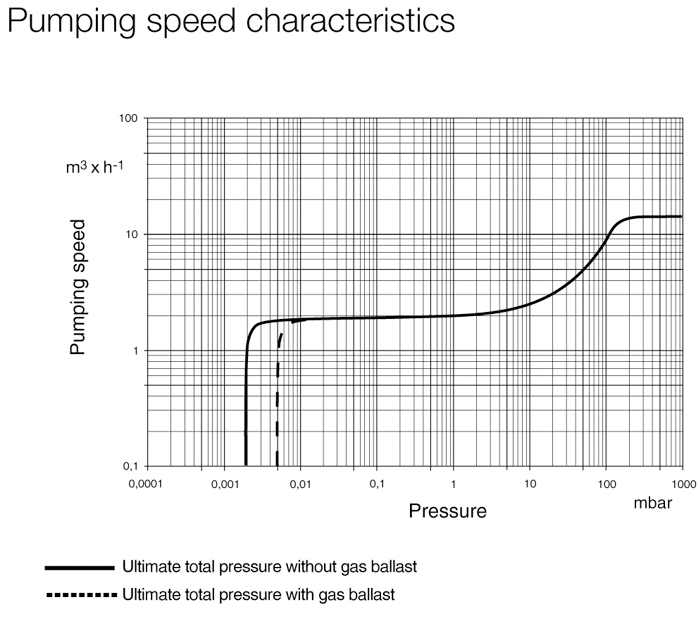

  • Pumping Speed: 18.9 m3/h
  • Ultimate Pressure: < 2x10-3 mbar
  • Inlet Port: inside thread G 3/4”

Price upon request
Item#: PN23298 Mfr Part#: 140092
Leybold D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex
Item#: PN23298 Mfr Part#: 140092 Manufacturer: Leybold 12 months warranty

Leybold Vacuum D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex




The D16B-EX is an ​Oil-sealed vacuum pump​ ​with integrated oil pump for force lubrication of the bearings also at​ ​high intake pressures of 1013 mbar. The pump is free of non-ferrous​ ​metals and the inside section of the pump is metal-sealed, i.e. there
are no elastomeric seals prone to​ ​chemical attack​​.​ ​The ​Leybold 140092 ​TRIVAC B pump is equipped with a gas ballast facility through which​ ​it is possible to pump condensable gases,and a hydro-pneumatic​ ​intake valve for vacuum protection.​



​The D16B-EX vacuum pump is additionally certified in accordance with:


Category 1(i)/2(o) of the EC Directive 2014/34/EU (ATEX95)

​ATEX II 1/2G c IIC(no C2H2, CS2)T4 X 12°C<TA<40°C

Certification of the motor: ATEX II 2G Ex e II T4
Certifications of the pump: CE, EC type examination certificate: IBExU0

RoHS compliant​


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of Trivac D16B vacuum pumps including 140091 and 140092. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

This item is non-returnable/non-refundable

Leybold Vacuum D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex





A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

| Service and Repair
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.

Overview

Leybold D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex
Item#: PN23298 Mfr Part#: 140092 Manufacturer: Leybold

Leybold Vacuum D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex




The D16B-EX is an ​Oil-sealed vacuum pump​ ​with integrated oil pump for force lubrication of the bearings also at​ ​high intake pressures of 1013 mbar. The pump is free of non-ferrous​ ​metals and the inside section of the pump is metal-sealed, i.e. there
are no elastomeric seals prone to​ ​chemical attack​​.​ ​The ​Leybold 140092 ​TRIVAC B pump is equipped with a gas ballast facility through which​ ​it is possible to pump condensable gases,and a hydro-pneumatic​ ​intake valve for vacuum protection.​



​The D16B-EX vacuum pump is additionally certified in accordance with:


Category 1(i)/2(o) of the EC Directive 2014/34/EU (ATEX95)

​ATEX II 1/2G c IIC(no C2H2, CS2)T4 X 12°C<TA<40°C

Certification of the motor: ATEX II 2G Ex e II T4
Certifications of the pump: CE, EC type examination certificate: IBExU0

RoHS compliant​


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of Trivac D16B vacuum pumps including 140091 and 140092. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Leybold Vacuum D16B-Ex TRIVAC Vacuum Pump 3-Phase 230/400V 50 HZ, 11 CFM, 140092, D16B Ex





A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
