- PN 20738403 / 738403
- Max. pumping speed: 1.6 CFM
- Ultimate vacuum (abs.): 0.6 Mbar
- •Excellent chemical resistance

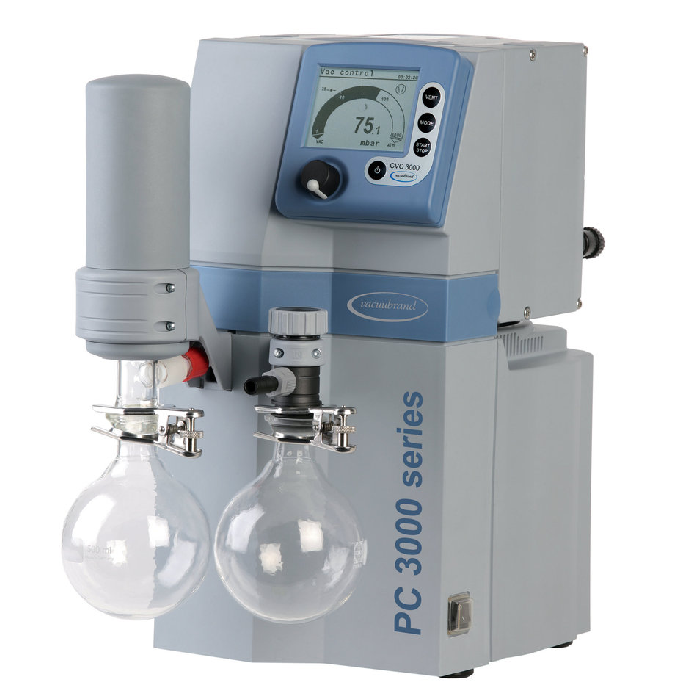

Vacuubrand PC3003 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 06 Mbar, 100-120V,50-60Hz, US cord, 20738403 / 738403, PC-3003
Vacuubrand PC 3003 VARIO® Corrosive Diaphragm Dry Vacuum Pumping Unit provide precise vacuum control by of the diaphragm pump's motor speed.
The Vacuubrand PC 3003 VARIO® is a two stage chemistry corrosion resistant diaphragm pump the meets medium vacuum requirements for most chemical solvents. The VARIO two-stage corrosive resistance chemistry dry pump which meets medium vacuum requirements for most solvents. The pumping unit PC 3003 VARIO is a well proven choice for evaporation of large amounts of solvents.
The integrated CVC 3000 vacuum controller enables fully automatic evaporation at push of a button, compact design with light weight and very quiet operation contribute to clasify this unit as one of the best vacuum pumping systems for laboratory use.
The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts.
-
PC3003 offers automatic electronic adaptation of the vacuum level throughout the process for high process reliability and unattended operations.
-
Automatic optimatization of the vacuum level throught the process for high process reproducibility and unattended operation.
-
Extraordinary diaphragm life for minimum operational and servicing costs
-
Easily operated CVC 3000 vac controller with clear reading menus, and with integrated venting valve
-
Short process times due to zero-fluctuation (hysteresis-free) vacuum control
-
Excellent chemical resistance for corrosive and laboratory applications
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Vacuubrand PC3003 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 06 Mbar, 100-120V,50-60Hz, US cord, 20738403 / 738403, PC-3003
| Technical data | Unit | PC 3003 VARIO |
|---|---|---|
| Vacuum controller | CVC 3000 | |
| Number of heads / stages | 4 / 4 | |

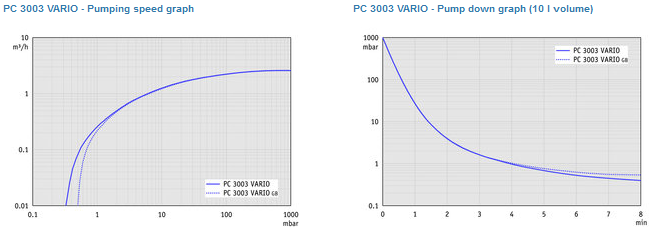

| Max. pumping speed | m3/h | 2.8 |
| Max. pumping speed | cfm | 1.6 |
| Ultimate vacuum (abs.) | mbar/torr | 0.6 / 0.45 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 1.5 / 1.12 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.53 |
| Motor speed range | min-1 | 30 - 2400 |
| Degree of protection | IP 40 | |

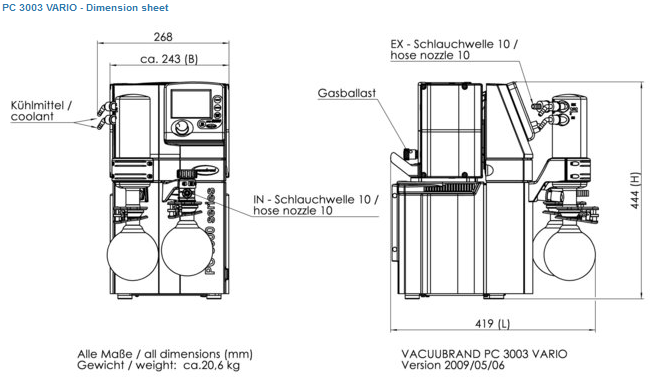

| Dimensions (L x W x H) | mm | 419 x 243 x 444 |
| Weight | kg | 20.6 |
| Noise level at 50 Hz, typ. | dBA | 43 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Vacuubrand PC 3003 Vario Chemistry Pumping System, PC3003 Instruction Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Vacuubrand PC3003 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 06 Mbar, 100-120V,50-60Hz, US cord, 20738403 / 738403, PC-3003
Vacuubrand PC 3003 VARIO® Corrosive Diaphragm Dry Vacuum Pumping Unit provide precise vacuum control by of the diaphragm pump's motor speed.
The Vacuubrand PC 3003 VARIO® is a two stage chemistry corrosion resistant diaphragm pump the meets medium vacuum requirements for most chemical solvents. The VARIO two-stage corrosive resistance chemistry dry pump which meets medium vacuum requirements for most solvents. The pumping unit PC 3003 VARIO is a well proven choice for evaporation of large amounts of solvents.
The integrated CVC 3000 vacuum controller enables fully automatic evaporation at push of a button, compact design with light weight and very quiet operation contribute to clasify this unit as one of the best vacuum pumping systems for laboratory use.
The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts.
-
PC3003 offers automatic electronic adaptation of the vacuum level throughout the process for high process reliability and unattended operations.
-
Automatic optimatization of the vacuum level throught the process for high process reproducibility and unattended operation.
-
Extraordinary diaphragm life for minimum operational and servicing costs
-
Easily operated CVC 3000 vac controller with clear reading menus, and with integrated venting valve
-
Short process times due to zero-fluctuation (hysteresis-free) vacuum control
-
Excellent chemical resistance for corrosive and laboratory applications
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Specifications
Vacuubrand PC3003 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 06 Mbar, 100-120V,50-60Hz, US cord, 20738403 / 738403, PC-3003
| Technical data | Unit | PC 3003 VARIO |
|---|---|---|
| Vacuum controller | CVC 3000 | |
| Number of heads / stages | 4 / 4 | |

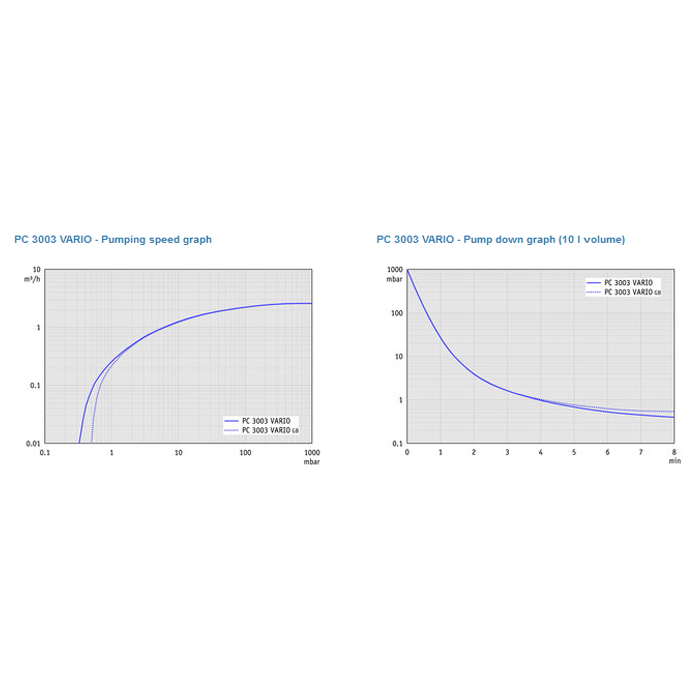

| Max. pumping speed | m3/h | 2.8 |
| Max. pumping speed | cfm | 1.6 |
| Ultimate vacuum (abs.) | mbar/torr | 0.6 / 0.45 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 1.5 / 1.12 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.53 |
| Motor speed range | min-1 | 30 - 2400 |
| Degree of protection | IP 40 | |

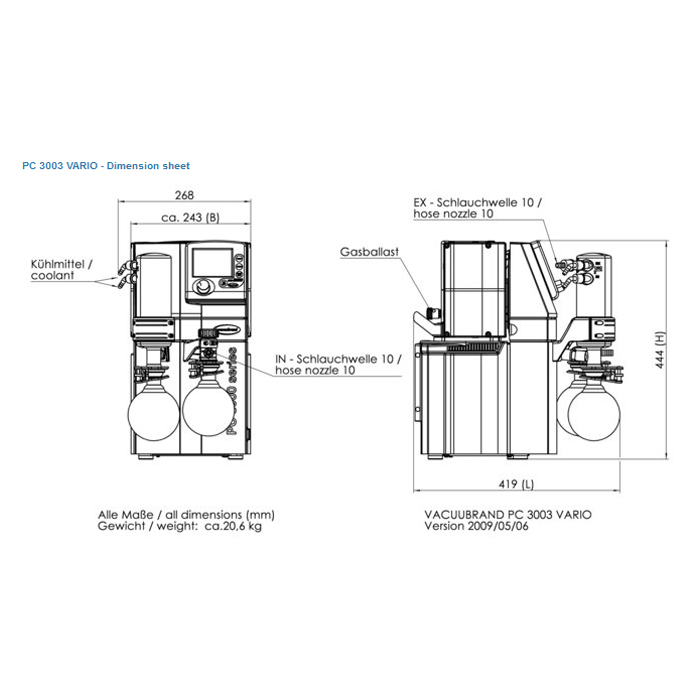

| Dimensions (L x W x H) | mm | 419 x 243 x 444 |
| Weight | kg | 20.6 |
| Noise level at 50 Hz, typ. | dBA | 43 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
