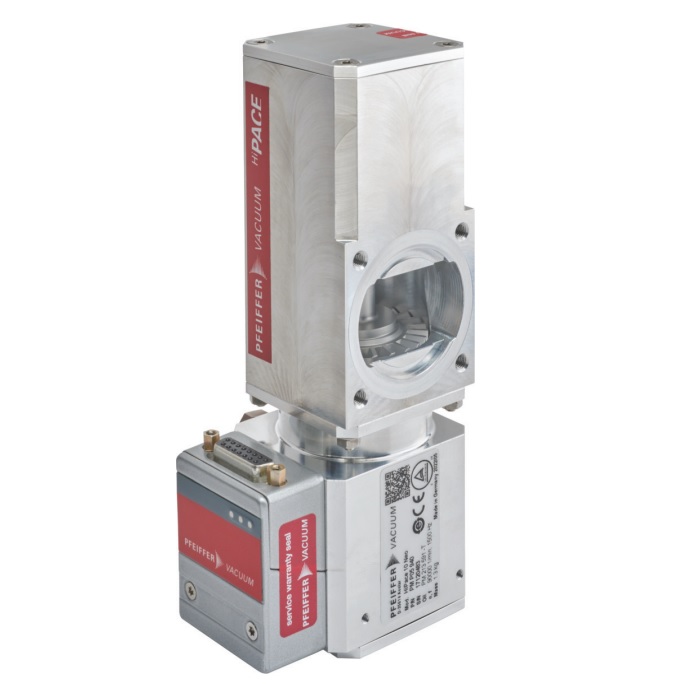

Pfeiffer Vacuum HiPace 10 Neo Turbo Pump with TC 80 Controller, DN 40 Inlet, PM P05 940 / PMP05940
Pfeiffer HiPace 10 Neo Turbo Pump Features:
- Powerful Turbo Pump w/ Pumping Speed of up to 8.24 – 27.08 cfm
- Ultimate Pressure: 5 · 10-5 mbar
- Smallest Production Turbo Pump on the market
- Integrated TC 80 Drive Electronics PM C01 890
- DN 40 Inlet connection
- Requires No Additional Cooling
- Mobile

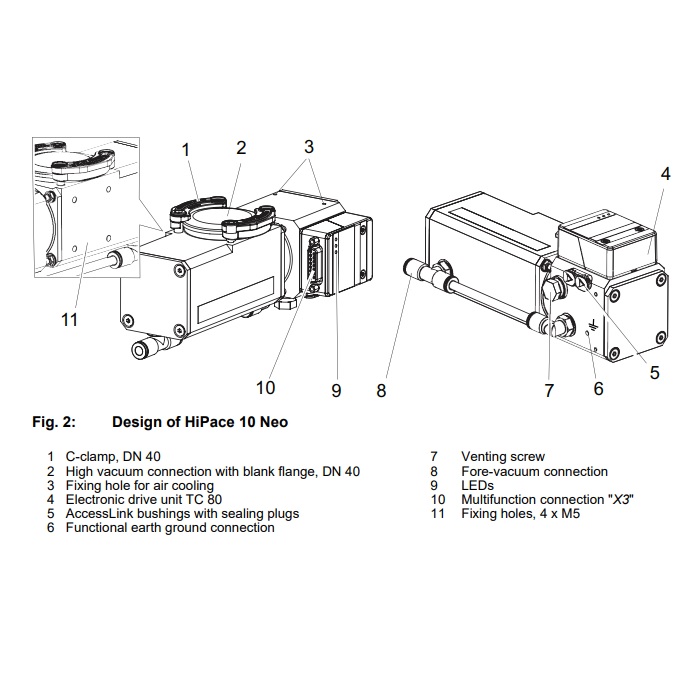

Pfeiffer HiPace 10 Neo Turbo Pump / PM P05 940 Overview:
The Pfeiffer HiPace 10 Neo turbo pump is the latest line of turbo pumps. The new generation TC 80 electronic turbo drive unit is a permanent component of the turbo pump. The purpose of the electronic drive unit is to drive, monitor and control the entire turbo pump. The Pfeiffer Vacuum HiPace 10 Neo Turbo Pump models are cost-effective and offer flexible installation within any orientation. The proven bearing system of the HiPace 10 Neo provides unrivaled dependability, while the sophisticated rotor design of the pump enables superior pumping speeds, greater backing pump compatibility, higher gas throughputs, and enables the compression of light gasses.
Pfeiffer HiPace10 Neo Scope of Delivery:
- Turbopump with electronic drive unit
- Blank flange for high vacuum connection
- C-clamp DN 40 ISO-KF, 2×
- Sealing plug for fore-vacuum connection
- Operating instructions
Pfeiffer HiPace 10 Neo Applications:
- Analytical applications (mass spectrometry, electron microscopy)
- Illuminant Industry (lamp production)
- Optical / glass Industry (heat protection, anti-reflective, reflective, and optical filter coatings)
- Research facilities (elementary-particle physics, fusion research, laser applications)
- Semiconductor Industry (electrical components, integrated cricuits (IC), solar cells)
- Vacuum coating technlogy (surface protection, decorative coatings, displays, screens)
- Vacuum metallurgy (vacuum brazing, vacuum sintering, vacuum alloys, furnace construction)
- Vacuum leak detection technology (vacuum systems, fuel tanks, airbag cartridges, packaging)
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 10 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum HiPace 10 Neo Turbo Pump with TC 80 Controller, DN 40 Inlet, PM P05 940 / PMP05940

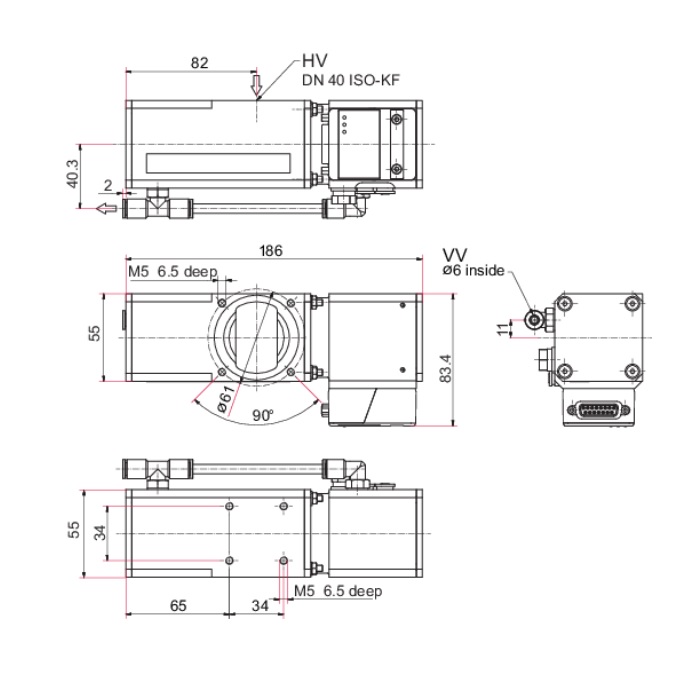

Pfeiffer HiPace 10 Neo Turbo Pump Technical Data:
| Bearing | Ball bearing |
| Compression ratio for Ar | 2.5 · 10^7 |
| Compression ratio for H2 |
3 · 10^2 |
| Compression ratio for He |
3 · 10^3 |
| Compression ratio for N2 | 3 · 10^6 |
| Connection flange |
DN 40 ISO-KF / 6 mm Hose adapter |
| Connection flange (in) |
DN 40 |
| Connection flange (out) |
Air (Forced convection) |
| Cooling method |
H2: 3 x 10-2 |
| Current, max. |
1.7 A |
| Electronic drive unit | TC 80 |
| Emission sound pressure level (EN ISO 2151) | <50 dB(A) |
| Fore-vacuum max. for N2 | 25 hPa | 18.75 Torr | 25 mbar |
| Gas throughput at final rotation speed for Ar | 0.76 hPa·l/s |
| Gas throughput at final rotation speed for N2 | 0.84 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Input voltage(s) | 24 V DC (±10 %) |
| Integral leak rate | 2 · 10-8 Pa m³/s | 1.5 · 10-7 Torr l/s | 2 · 10-7 mbar l/s |
| Mains frequency compatibility | 50 Hz | 60 Hz |
| Mounting orientation | Arbitrary |
| Particle intake | Yes |
| Permissible radial magnetic field max. | 3 mT |
| Position of power supply pack | External power supply pack |
| Power consumption max. | 40 W |
| Protection degree | IP20, Type 1 |
| Pumping speed | 14 – 46 m³/h | 8.24 – 27.08 cfm | 233.33 – 766.67 l/min |
| Pumping speed for Ar | 13 l/s |
| Pumping speed for H2 | 4 l/s |
| Pumping speed for He | 6.5 l/s |
| Pumping speed for N2 | 12 l/s |
| Rotation speed variable | 50 – 100 % |
| Rotation speed ±2 % | 90000 rpm | 90,000 min-1 |
| Run-up time | 45 s |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | 5 · 10-5 hPa | 3.75 · 10-5 Torr | 5 · 10-5 mbar |
| Venting connection | G 1/8" |
| Weight approx. | 1.3 kg | 2.87 lb |
